Z4-8MK4 Installation and User Guide v1.26

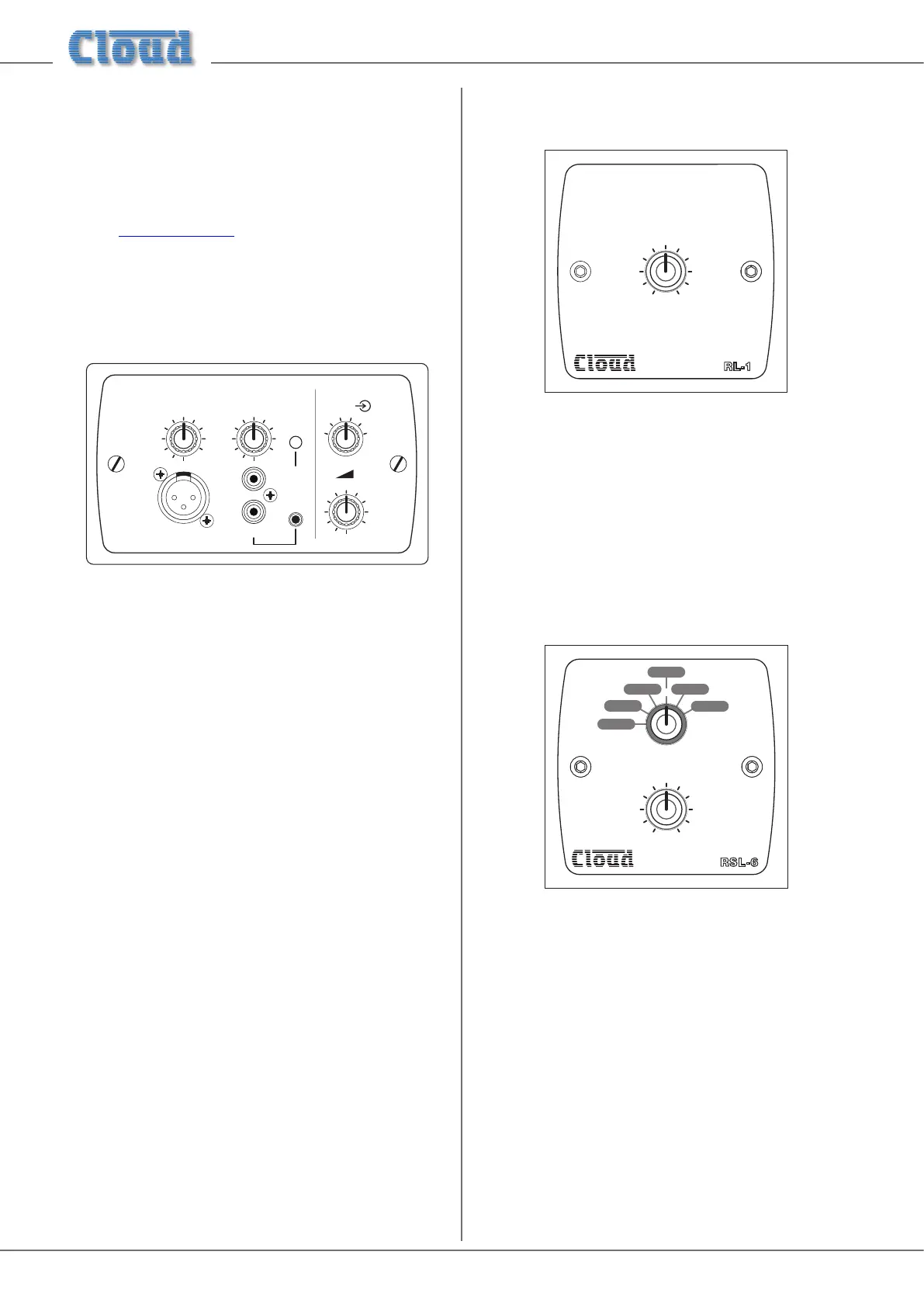

Optional System Components
The following components may form part of the audio system
and may be ordered separately if required. They may also be
retrotted to a system at a later time. Separate datasheets
are available for each of the individual components; download
them at www.cloud.co.uk.
LM-2 Mic/line input module with remote
music control
MIC LEVEL
1
2
3
4
5
6
MUSIC LEVEL
LINE INPUT
MIC INPUT
LM-2
MIC
PRIORITY
1
4
5
2
3
6
7
9
10
8
0
1
4
5
2
3
6
7
9
10
8
0
1
4
5
2
3
6
7
9
10
8
0
The LM-2 is an active input module which allows a microphone
and a stereo line input to be connected to the Zone Mixer
in a remote location. The faceplate has both phonos and a
3.5 mm jack socket for connection of the line input, and
provides a convenient access point for the connection of a
DJ mixer, laptop, MP3 player or similar. Mic and line inputs
have separate level controls. A MIC PRIORITY button
activates the Zone Mixer’s priority circuitry; when enabled,
a microphone signal (post level control) from the LM-2
will reduce the music level in the zone where it is installed.
Changing a rear jumper alters the priority operation so that
the mixed mic and line signals from the module cause the
mixer’s line input selected to the Zone to be fully muted.
The module also includes the functions of the RSL-6 Remote
Control Plate (see opposite), permitting control of zone
music level and source.
The LM-2 connects to one of the unit’s Facility Ports via
screened Cat 5 cable, and the remote inputs are fed to that
zone only. The mixer’s Mic inputs remain available. Multiple
LM-2s (in the same zone) may be daisy-chained to provide
mic inputs in more than one position. The LM-2 is available
in sizes to suit UK, US and German electrical back boxes; a
choice of nishes is also available. See “Connecting an LM-2
remote input module” on page 12 and “LM-2 active input
modules – general considerations” on page 21 for more
information.
RL-1 Series Remote Music Level Control
4
5
6
1
2
3
7
9
10
0
8
MUSIC LEVEL
RL-1
The RL-1 Series is a range of small plates with a single control
for locally adjusting the music level in a zone. They connect to
one of the mixer’s REMOTE SOURCE + LEVEL ports. See
“Connecting an RL-1 Series remote control plate” on page
15 and “RL-1 Series and RSL-6 Series remote control plates
– general considerations” on page 22 for more information.
RSL-6 Series Remote Music Level/source
Control
RSL 6-
1
2
3
4
5
6
MUSIC LEVEL
SOURCE SELECT
4
5
6
1
2
3
7
9
10
0
8
The RSL-6 Series is a range of plates of the same size as
the RL-1s; they connect in a similar way. They allow local
music source selection as well as music level control. See
“Connecting an RSL-6 Series remote control plate” on page
16 and “RL-1 Series and RSL-6 Series remote control plates
– general considerations” on page 22 for more information.
