ExternalChargerRepairsELECTRICVEHICLE-BATTERYCHARGER
2791

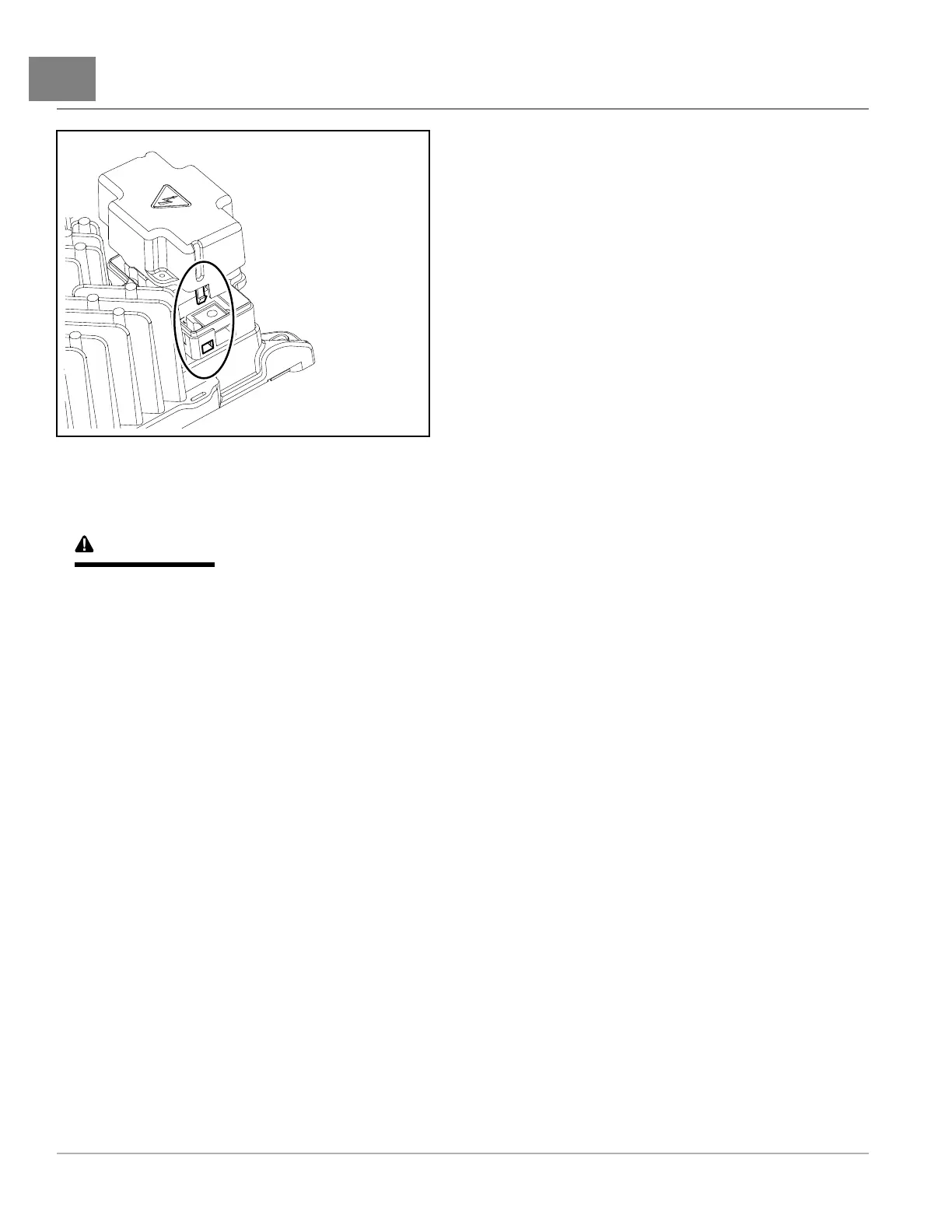

Figure15-9TerminalBlockCoverMountingTabs
TERMINALBLOCKCOVERINSTALLATION
WARNING
•Theterminalblockcover(3)ontheDCterminalblock(4)mustbeinstalledproperlytocomplywithUL
code.ThiscoverpreventswaterexposureandpreventsashortacrosstheDCterminals.
1.Aligncover(3)withterminalblock(4)andpushontoblockuntiltabslockintoplace.
DCCORDANDSTRAINRELIEFREMOVAL
1.DisconnectDCcord(1)fromvehicle.
2.DisconnectACcord(2)fromACoutlet.
3.Removetwotorxscrews(5)securingstrainrelief(6)tocharger.
4.Removeterminalblockcover(3).SeeTerminalBlockCoverRemovalonpage15-19.
5.Removetorxscrew(7)securingeachDCcordwiretoterminalblock(4).
DCCORDANDSTRAINRELIEFINSTALLATION
1.AttachDCcordwhitewiretopositiveterminal(+)andblackwiretonegativeterminal(–)withtorxscrews(7).See
followingNOTE.Tightenscrews(7)to39.8in·lb(4.5N·m).
NOTE:Thepositivesymbol(+)andnegativesymbol(–)aremoldedintotheterminalblockforeasyidentication.
2.Installterminalblockcover(3).SeeTerminalBlockCoverInstallationonpage15-20.
3.Securestrainrelief(6)tochargerwithtorxscrews(5).Tightenscrews(5)to27in·lb(3.1N·m).
HANDLEREMOVAL
Removetorxscrews(8)securinghandle(9)tocharger.
Page15-202019PrecedentVillager2MaintenanceandServiceManual

Club Car Precedent Villager 2 Specifications

General

Model	Precedent Villager 2
Seating Capacity	2
Power Source	48-volt DC (Electric)
Overall Length	91.5 inches
Ground Clearance	4.5 in (11 cm)
Power Source (Electric)	48-volt DC
Batteries	6 x 8V
Charger	Onboard
Forward Speed (Nominal)	14-19 mph
Steering	Rack and Pinion
Tires	18 x 8.5-8
Overall Width	47 in (119 cm)
Turning Radius	10 ft (305 cm)
