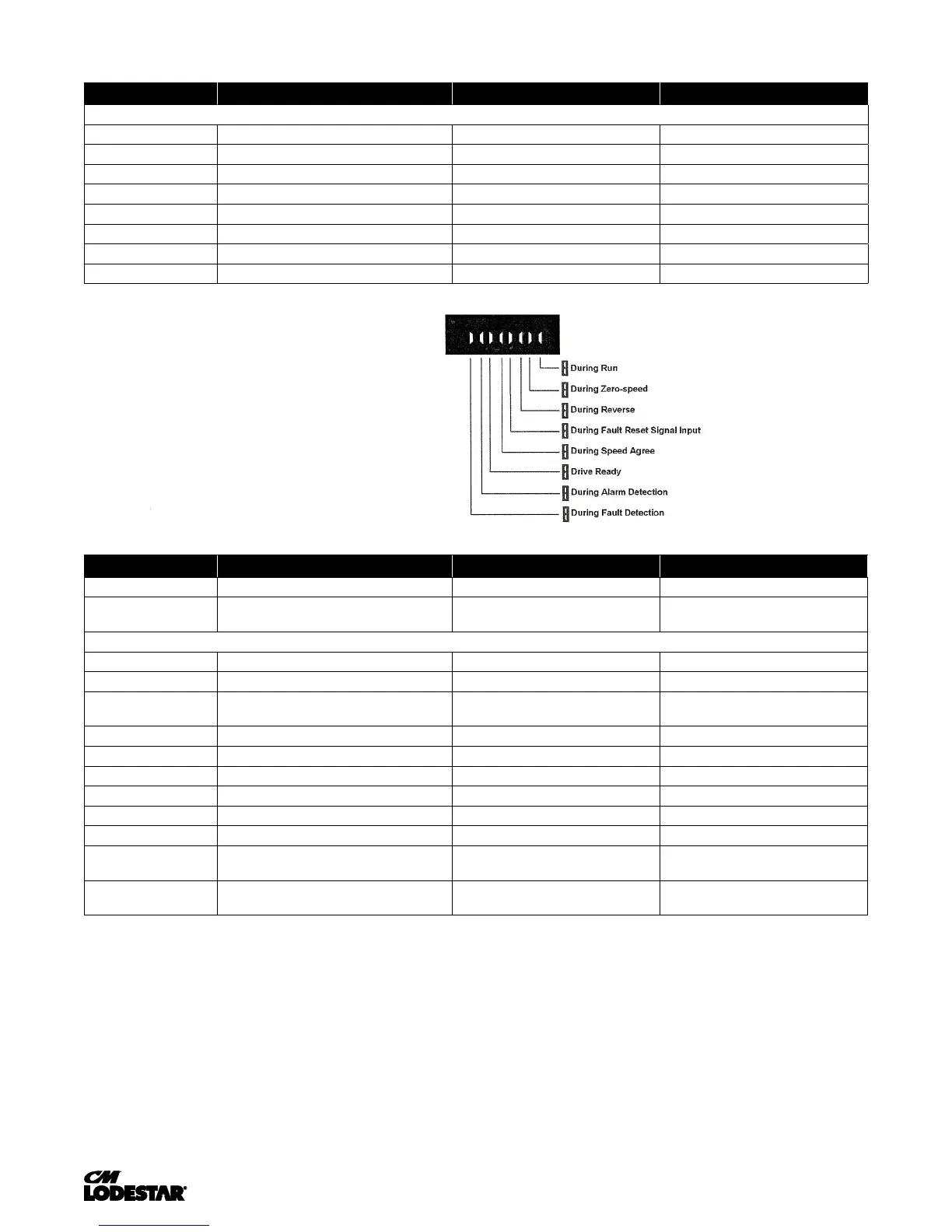

MONITOR PARAMETERS
PARAMETER CODE NAME FUNCTION UNITS
MONITOR
U01.13 Elapsed Time Elapsed Time hours
U01.14 Flash ID Flash ROM software ID number --
U01.15 Terminal A1 Level External Terminal input level V
U01.16 Terminal A2 Level External Terminal input level V/mA
U01.20 Output Frequency after Soft Start --- Hz
U01.28 Software CPU --- --
U01.34 OPE Detection Parameter Parameter OPE detected const #
U01.39 Memobus Communications Error Displays content of MEMOBUS error --
U01.39
PARAMETER CODE NAME FUNCTION UNITS
U01.52 Maintenance Timer hr
U01.54 Pulse Monitor
Displays the pulse train input RP
Frequency
--
FAULT TRACE
U02.01 Current Fault Displays Current fault --
U02.02 Last Fault Displays last fault detected --
U02.03 Frequency Reference @ Fault
Frequency reference when fault was
detected
Hz
U02.04 Output Frequency @ Fault Output frequency when fault was detected Hz
U02.05 Output Current @ Fault Output current when fault was detected A
U02.06 Motor Speed @ Fault (OLV Only) Motor speed when fault was detected Hz
U02.07 Output Voltage @ Fault Output voltage when fault was detected V
U02.08 DC Bus Voltage @ Fault DC Bus voltage when fault was detected V
U02.09 Output Power @ Fault Output power when fault was detected kW
U02.11 Input Terminal Status @ Fault
Input terminal status when fault was
detected
--
U02.12 Output Terminal Status @ Fault
Output terminal status when fault was
detected
--
To Next Page
