C.M.C. n.v. - Airmaster S1 installation guide – V1.2 – MANY0402A.00

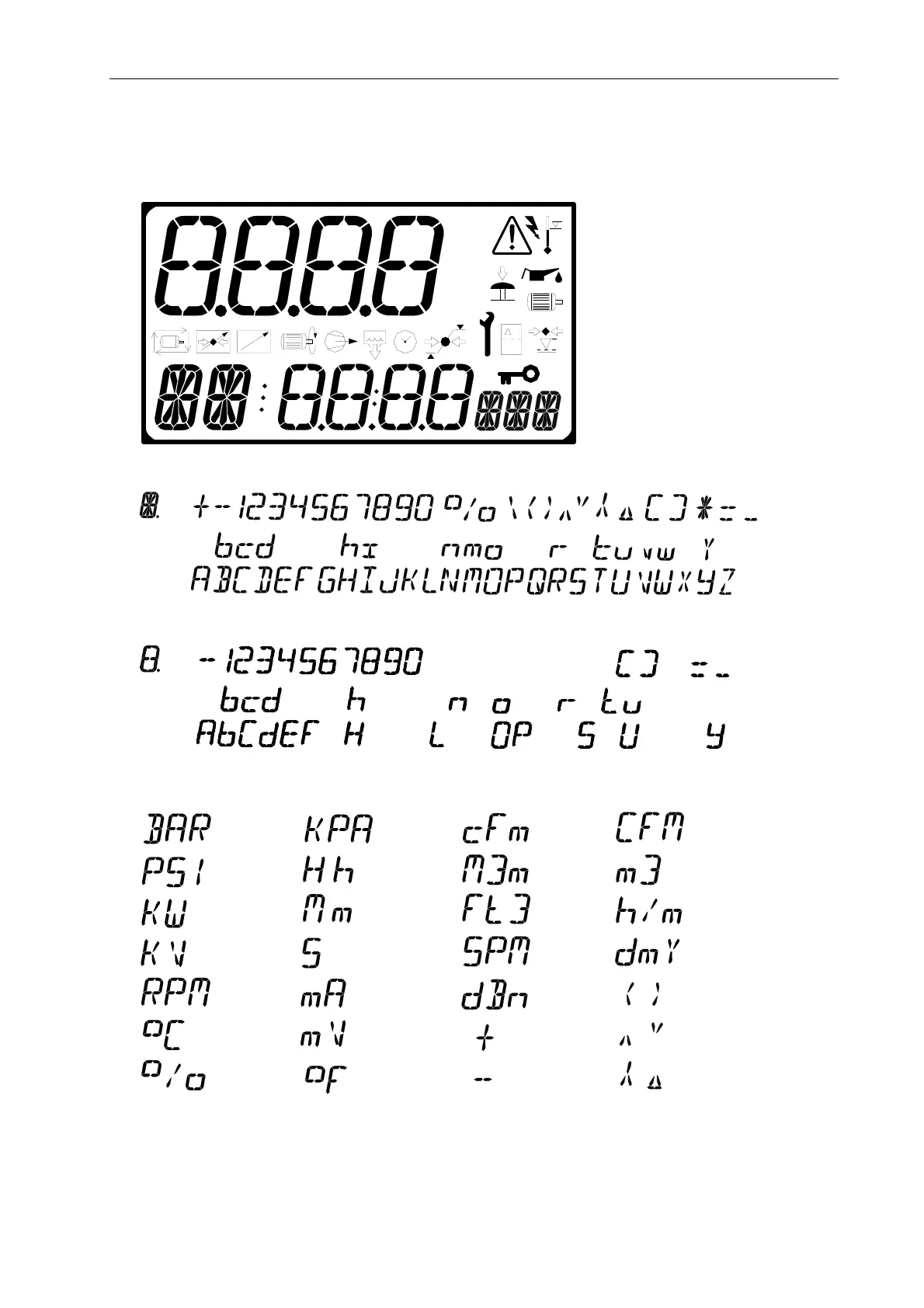

Appendix 4: Display symbols
p
bar
psi
°C
°F
kPa
14 nt Display Character Set:
7 S haracter Set:
Segme
egment Display C
Display Character Examples:
j
m
bar
KiloWatt
kPa
cfm
cfm
psi
hour
m³/min
m³
cubic metres
kW
minute
ft³
cubic feet
kV
seconds
KiloVolt
rpm
mA
ºC
mV
milliVolt
%
percent
ºF
milliAmp
spm
bearing
monitoring
dBn
spm unit
+
positive
-
negative
time
hours/minutes
date
day/month/year
greater than
less than
up
down
star
delta
Page 34 of 35
