5. completely remove the lead seal and unscrew the cursor of the

right electro valve 2'' (Picture 35);

6. unscrew the nut of the right proportional valve 2' (Picture 35) and,

using the 4 size hexagonal key, completely unscrew the same

proportional valve;

7. The same operator or the ground operator takes the hand pump

lever and inserts it into the pump Picture 37.

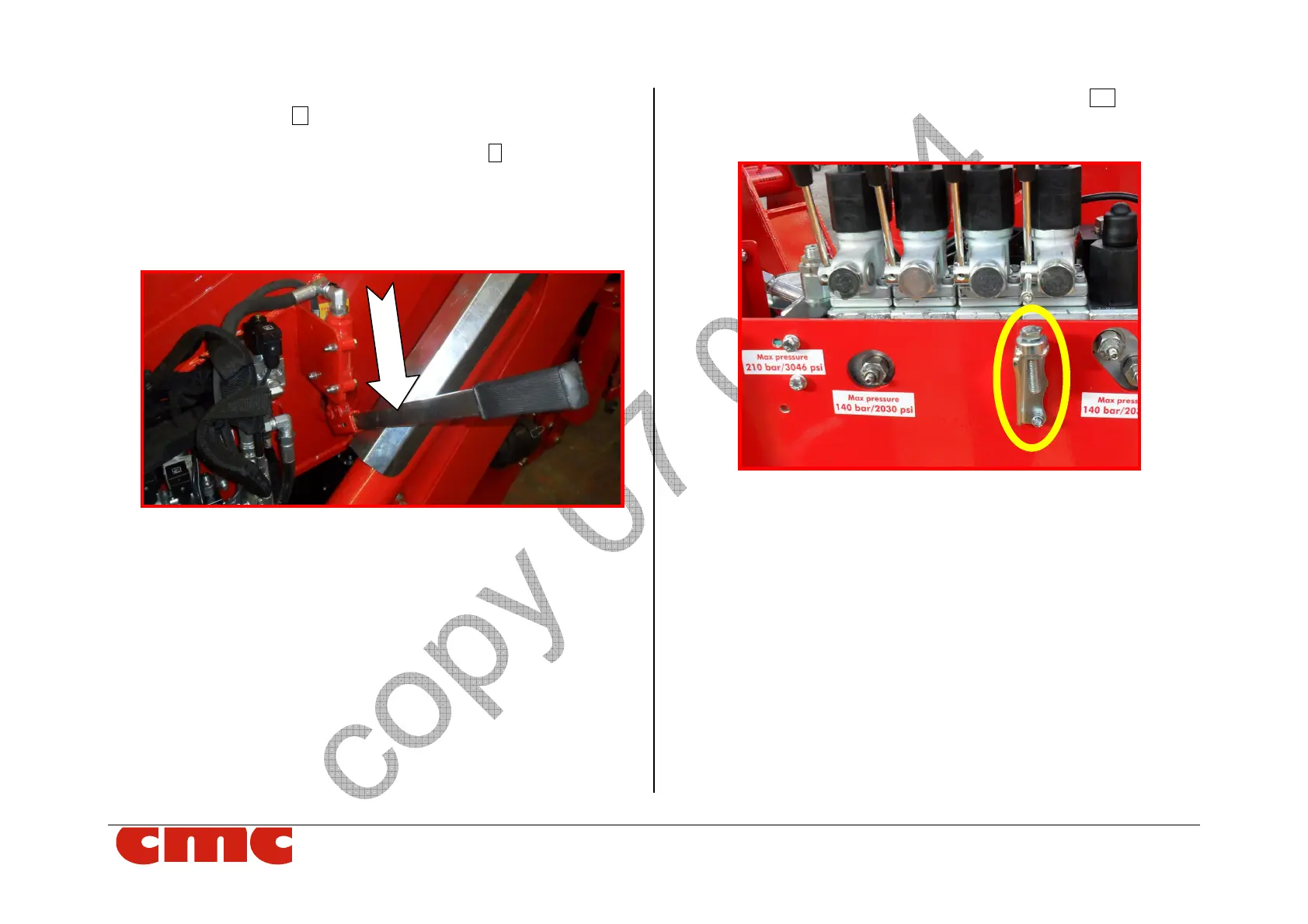

Picture 37 – lever and hand pump

8. completely unscrew the bolt placed under the (DM distributor)

lever for lifting/lowering of boom 1 (lever 5 in the label) Picture 38.

so that the same lever stays completely lift and blocked;

Picture 38 – lever for the lifting/lowering of boom (the first – black –

starting from the right)
