Emergency control stations
The emergency control station includes:
• outriggers control station;
• errors display;
• emergency workbench for recovery procedure.
3.3.1
Outriggers control station
The "outriggers control station” is fixed aboard the machine frame.
The manual stabilization/destabilization manoeuvres are carried out by the
operator on the ground through the stabilizers control levers (Picture
13):

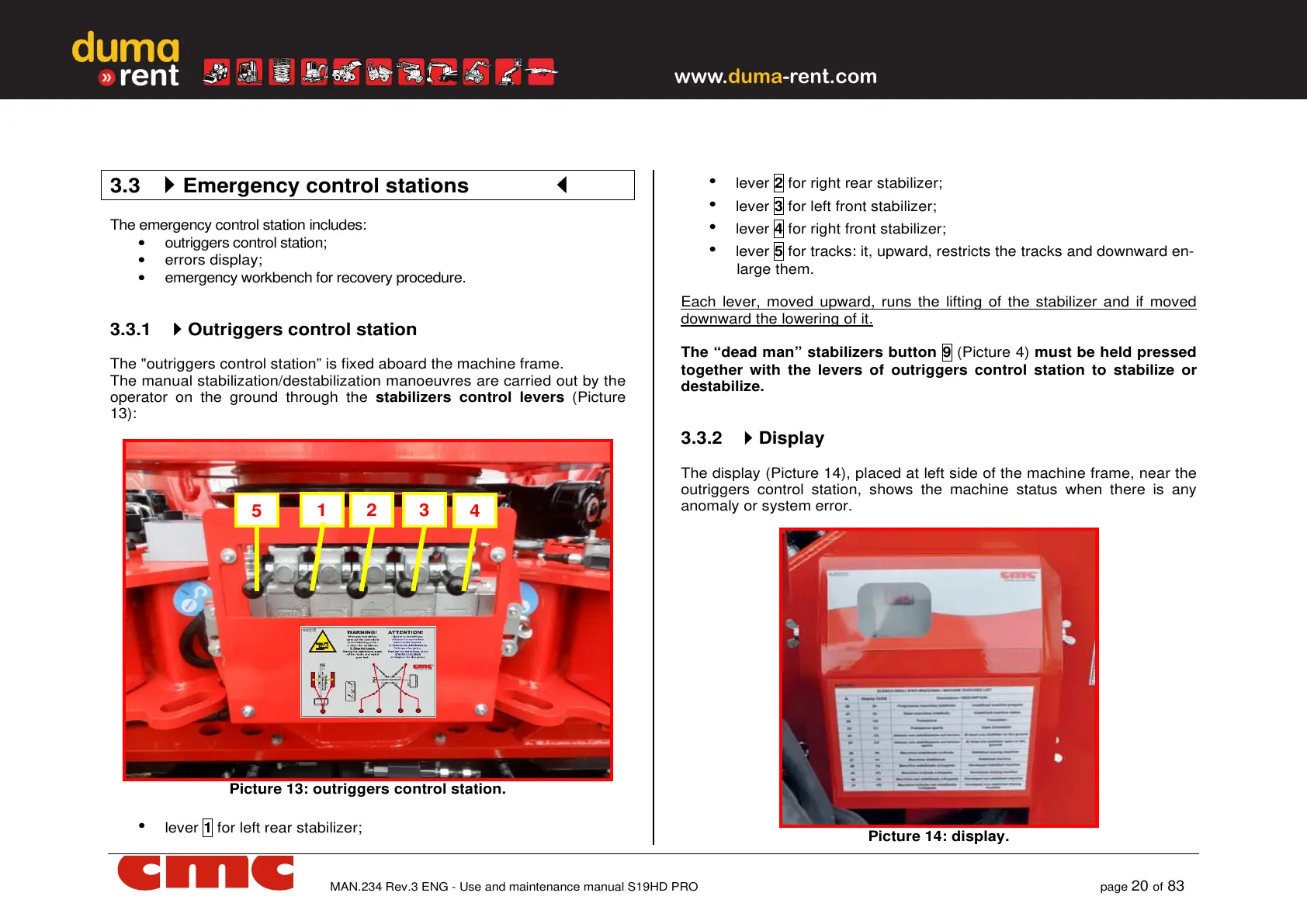

Picture 13: outriggers control station.
•
lever 1 for left rear stabilizer;
•
lever 2 for right rear stabilizer;
•
lever 3 for left front stabilizer;
•
lever 4 for right front stabilizer;
•
lever 5 for tracks: it, upward, restricts the tracks and downward en-
large them.
Each lever, moved upward, runs the lifting of the stabilizer and if moved
downward the lowering of it.
The “dead man” stabilizers button 9 (Picture 4) must be held pressed
together with the levers of outriggers control station to stabilize or
destabilize.
3.3.2
Display
The display (Picture 14), placed at left side of the machine frame, near the
outriggers control station, shows the machine status when there is any
anomaly or system error.
Picture 14: display.
