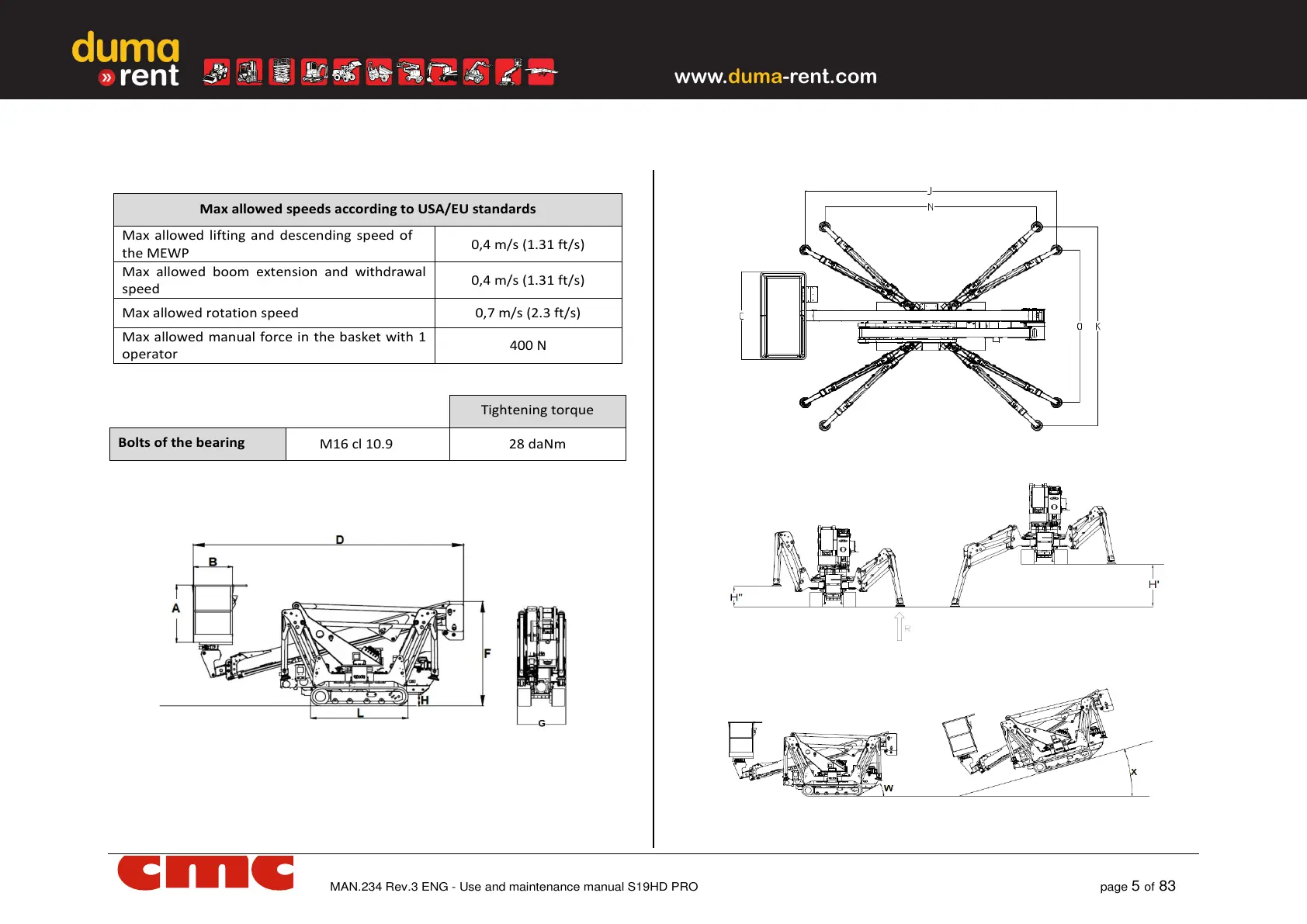

MAN.234 Rev.3 ENG - Use and maintenance manual S19HD PRO page
5
of
83
Max allowed speeds according to USA/EU standards
Max allowed lifting and descending speed of
the MEWP
0,4 m/s (1.31 ft/s)
Max allowed boom extension and withdrawal
speed
0,4 m/s (1.31 ft/s)
Max allowed rotation speed 0,7 m/s (2.3 ft/s)
Max allowed manual force in the basket with 1
operator
400 N
Tightening torque
Bolts of the bearing
M16 cl 10.9 28 daNm
