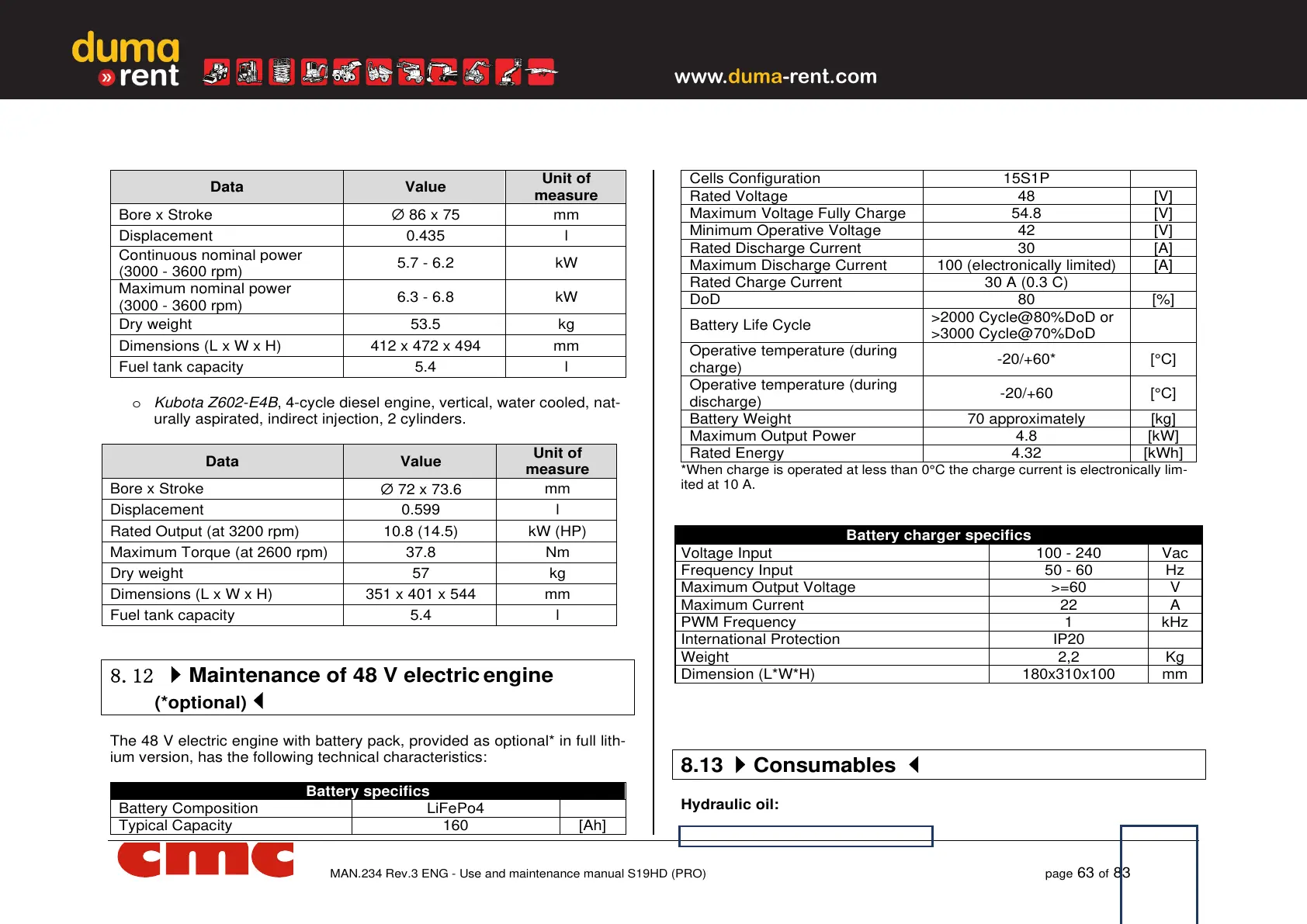

MAN.234 Rev.3 ENG - Use and maintenance manual S19HD (PRO) page
63
of
83
Data Value
Unit of
Bore x Stroke
Ø 86 x 75
mm
Displacement 0.435 l
Continuous nominal power
(3000 - 3600 rpm)
5.7 - 6.2 kW
Maximum nominal power
(3000 - 3600 rpm)
6.3 - 6.8 kW
Dry weight 53.5 kg
Dimensions (L x W x H) 412 x 472 x 494 mm
Fuel tank capacity 5.4 l
o Kubota Z602-E4B, 4-cycle diesel engine, vertical, water cooled, nat-
urally aspirated, indirect injection, 2 cylinders.
Data Value
Unit of
Bore x Stroke
Ø 72 x 73.6
mm
Displacement 0.599 l
Rated Output (at 3200 rpm) 10.8 (14.5) kW (HP)
Maximum Torque (at 2600 rpm) 37.8 Nm
Dry weight 57 kg
Dimensions (L x W x H) 351 x 401 x 544 mm
Fuel tank capacity 5.4 l
8.12
Maintenance of 48 V electric
engine
(*optional)
The 48 V electric engine with battery pack, provided as optional* in full lith-
ium version, has the following technical characteristics:
Battery Composition LiFePo4
Typical Capacity 160 [Ah]
Cells Configuration 15S1P
Rated Voltage 48 [V]
Maximum Voltage Fully Charge 54.8 [V]
Minimum Operative Voltage 42 [V]
Rated Discharge Current 30 [A]
Maximum Discharge Current 100 (electronically limited) [A]
Rated Charge Current 30 A (0.3 C)
DoD 80 [%]
Battery Life Cycle
>2000 Cycle@80%DoD or
>3000 Cycle@70%DoD
Operative temperature (during
charge)
-20/+60* [°C]
Operative temperature (during
discharge)
-20/+60 [°C]
Battery Weight 70 approximately [kg]
Maximum Output Power 4.8 [kW]
Rated Energy 4.32 [kWh]
*When charge is operated at less than 0°C the charge current is electronically lim-
ited at 10 A.
Battery charger specifics
Voltage Input 100 - 240 Vac
Frequency Input 50 - 60 Hz
Maximum Output Voltage >=60 V
Maximum Current 22 A
PWM Frequency 1 kHz
International Protection IP20
Weight 2,2 Kg
Dimension (L*W*H) 180x310x100 mm
8.13
Consumables
Hydraulic oil:
