1 Offline Writer Kit Content
Offline writer kit is comprising of the following hardware and software.

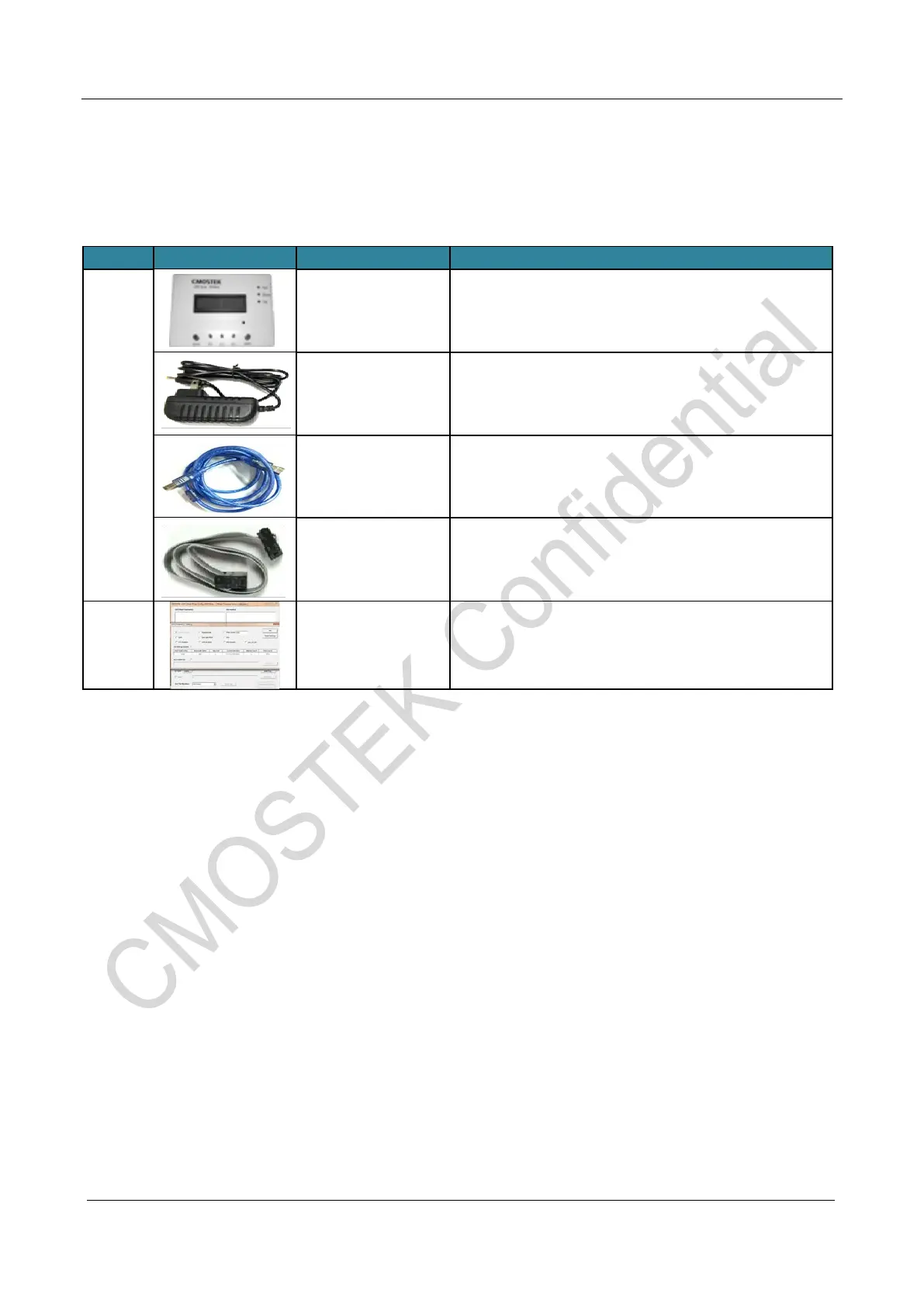

Table 2. Hardware and Software of the Offline Writer
Type
Name
Function Description
Hardware
Host machine Fast and efficient offline burning
DC power adapter
Specification is
：
Input: AC 100 ~ 240 V 50/60 Hz 0.6 A
Output: DC 9 V 1 A
USB wire
USB A type interface->USB B type interface
，
1.5 m.
They are used to connect the writer to the computer
and induces the chip configuration parameters.
Writer connecting
cable
1 IDC 10P cable
，
using for connecting the writer
with the chip burn-in socket. (pins)
Software
CMOSTEK
CMT216x
WriterConfig
Operating on the computer and introduces the *.hex
document of chip procedure to the writer.
