CMOSTEK CMT2168A - LCD Display Information

AN279
Rev 0.7 | 7/32
www.hoperf.com
2.2 LCD Display Information
2.2.1 Offline burner startup initialization display information

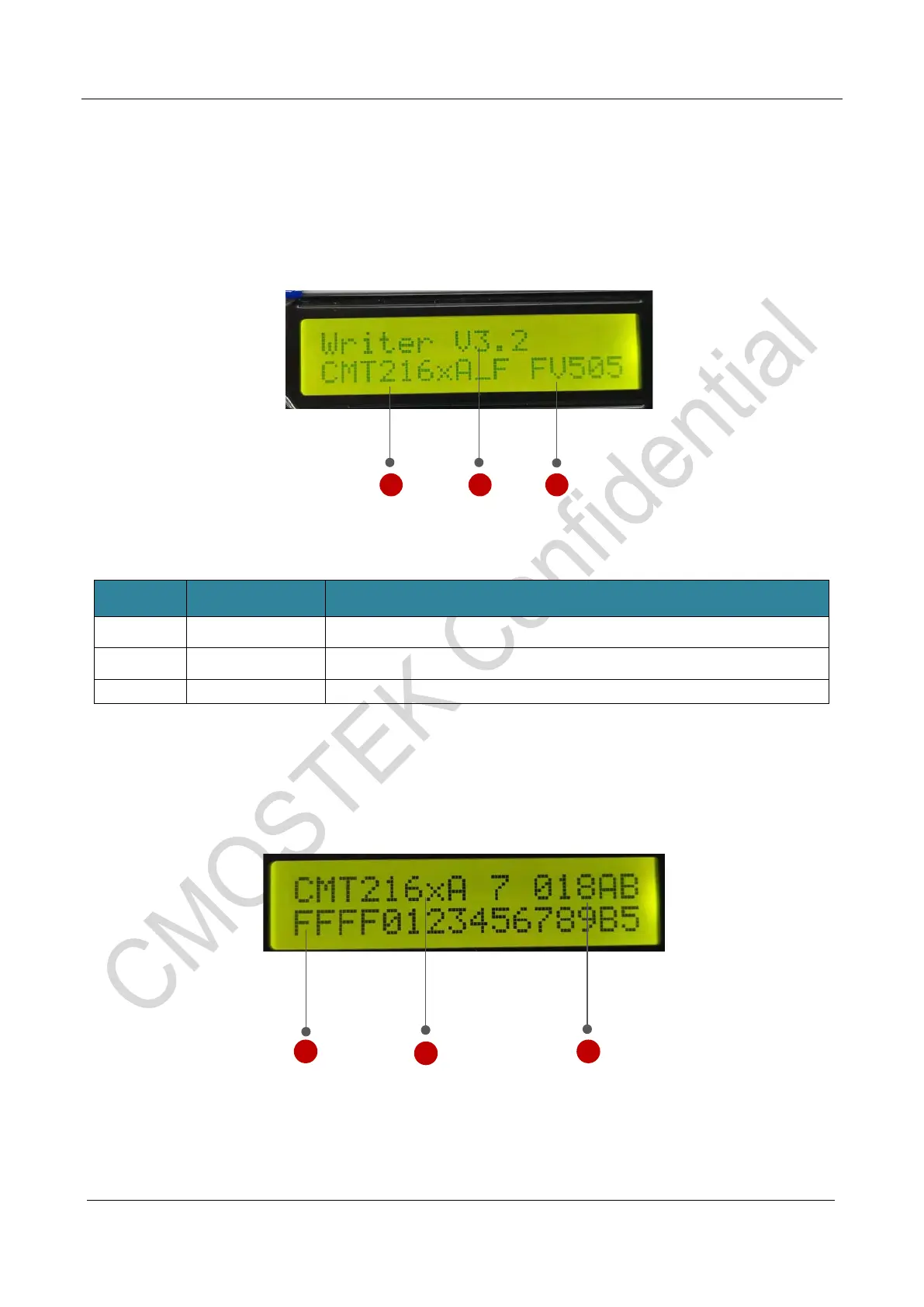

The information displayed within 5 seconds after startup are shown in the following figure and table：
1 2 3
Figure 4. LCD display at startup initialization
Table 5. LCD display description at startup initialization
No.
LCD display
character
Description
1 CMT216x Represents CMT216x series chip burner
2 Writer V3.2 Represents the burner hardware version number
3 FV505
Represents the burner firmware version number
2.2.2 Offline writer display information
The offline writer information is displayed as follows.
1
2
3
Figure 5. Offline writer display information
