EVAC-500 Voice Alarm & Evacuation System Operation Manual
15 / 42
9— Lock with Key
10 & 11— Cable Outlet
12—ID Configuration Dipswitch.
Upward means enable and downward means disable. 1
st
to 5
th
PIN means ID of binary system. 6
th
PIN upward means
normal paging mode and downward means PPT paging mode. 7
th
PIN upward means individual zone and downward
means group, group could be defined with multiple zones. 8
th
PIN is indication test, downward means start the LED

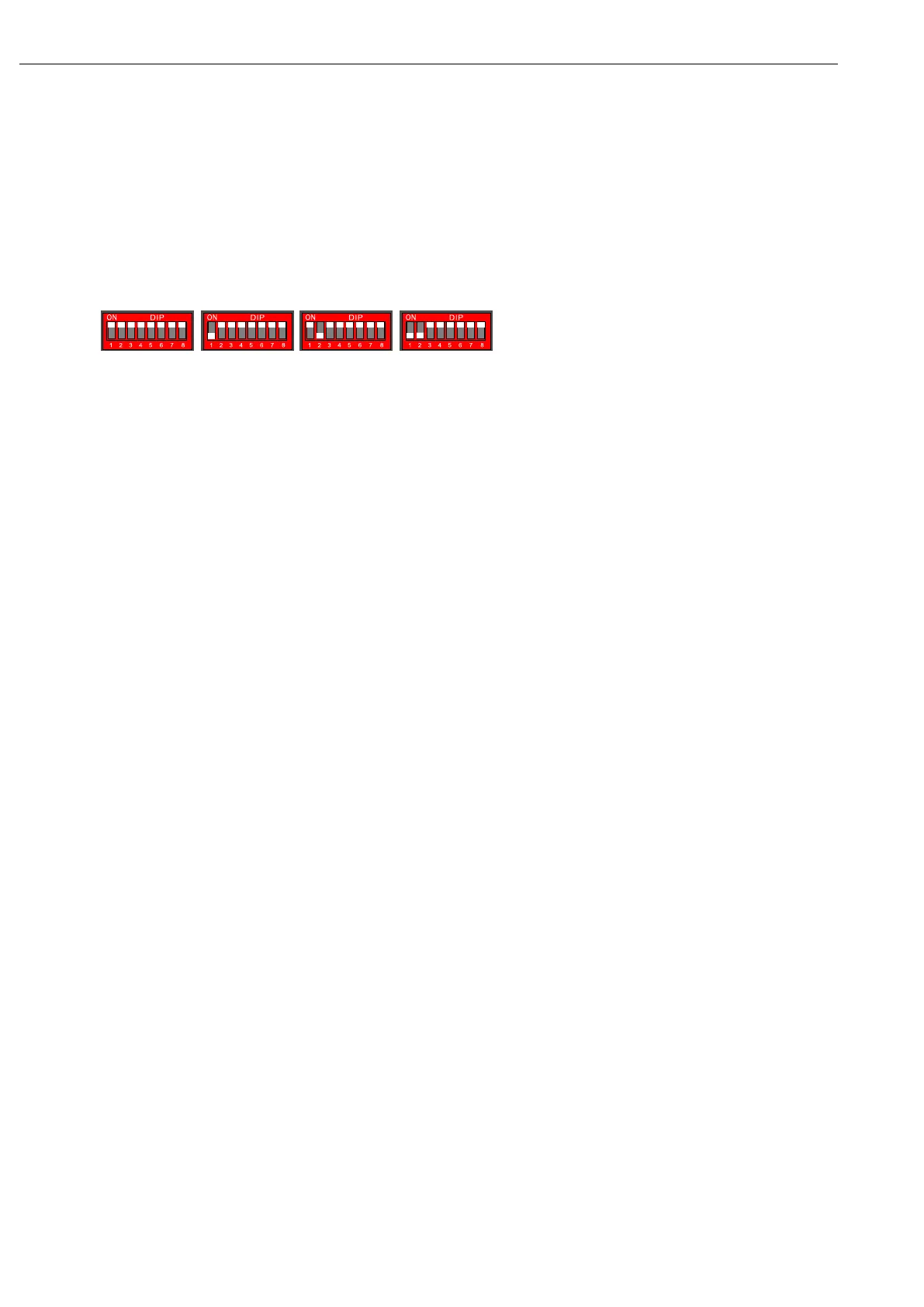

indication test, all LED indicator will be from red-green-yellow then to normal state. Below is example of remote paging
mic ID from No 1 to No 4.
2.2. Technical Specifications
Electric Part
Phantom Power
Voltage 20V ~ 27.5V
Maximum Current Less than 0.2A (24V power supplier，all the LED on the front panel will be lighted
up, it is paging state)
Power Consumption Less than 3W
Performance Index
MIC
SPL 30mV
Mechanical Specifications 300* 300 * 107 mm
N.W. 3.9KGS
Installation Wall Mount Type
Color Red
Environmental Requirement
Operating Temperature +5℃ ~ +40℃
Storage Temperature -20℃ ~ +70℃
Relative temperature <95%（without condensation）
