5

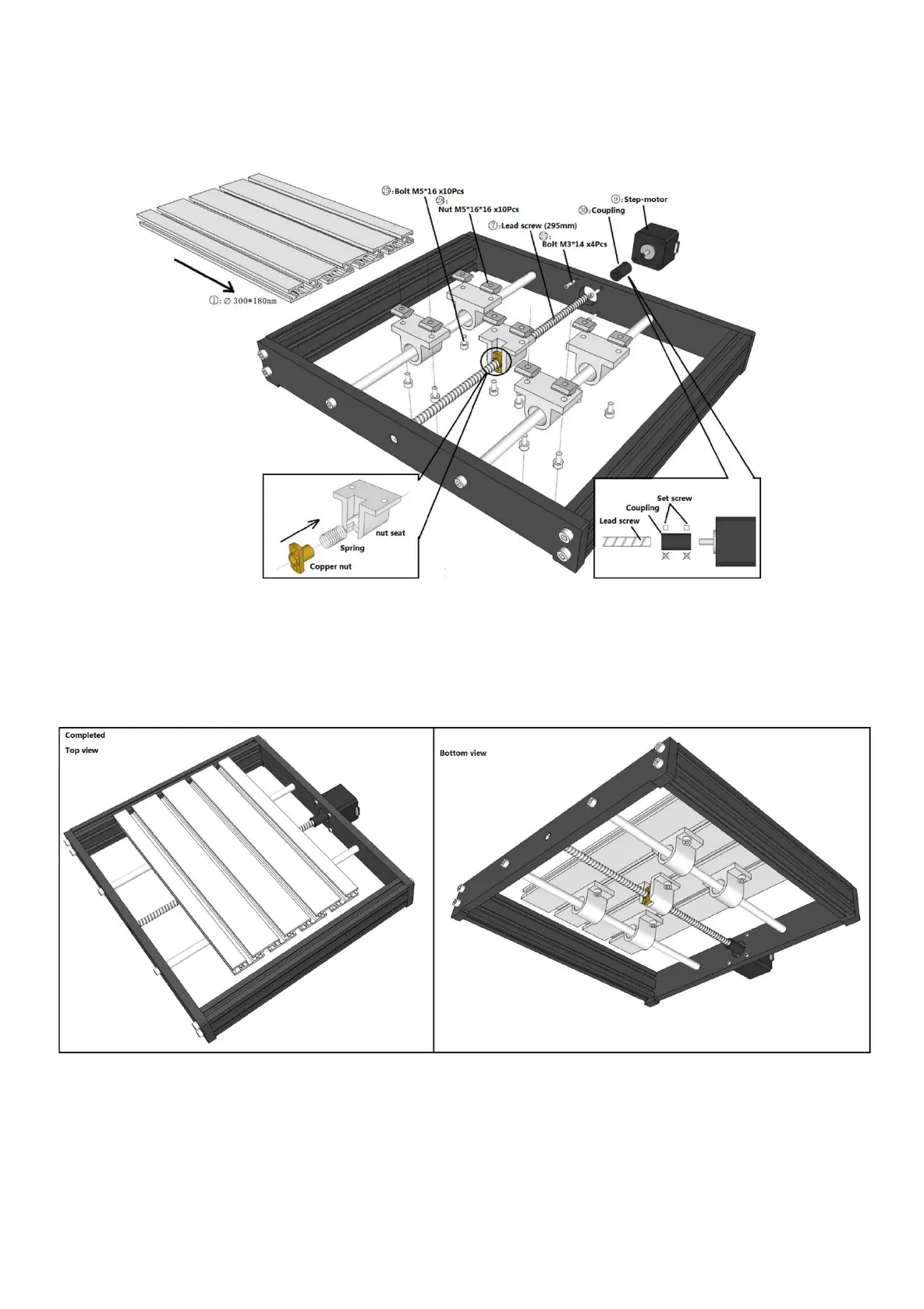

Step2 Table Installation
Note: First fix one end of the coupling to the 42 stepper motor, and then fix the 42 stepper motor to the
aluminum profile
Completed

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the CNC 3018-PRO and is the answer not in the manual?

CNC 3018-PRO Specifications

General IconGeneral
ModelCNC 3018-PRO
Working Area300 x 180 x 45 mm
Frame MaterialAluminum
Control SoftwareGRBL
Power Supply24V 5.6A
InterfaceUSB
Machine Size400 x 330 x 240 mm
Spindle Motor775 spindle motor (12-36V) 24V:10000rpm
Supported OSWindows XP/7/8/10, Linux
Supported File FormatsG-code, nc, ncc, tap
Stepper Motor1.3A, 12V, 0.25Nm
