CNC 3018-PRO - Machine Installation - Base & Bakelite-C; Step3 Base & Bakelite-C Installation

6
Step3 Base & Bakelite-C Installation

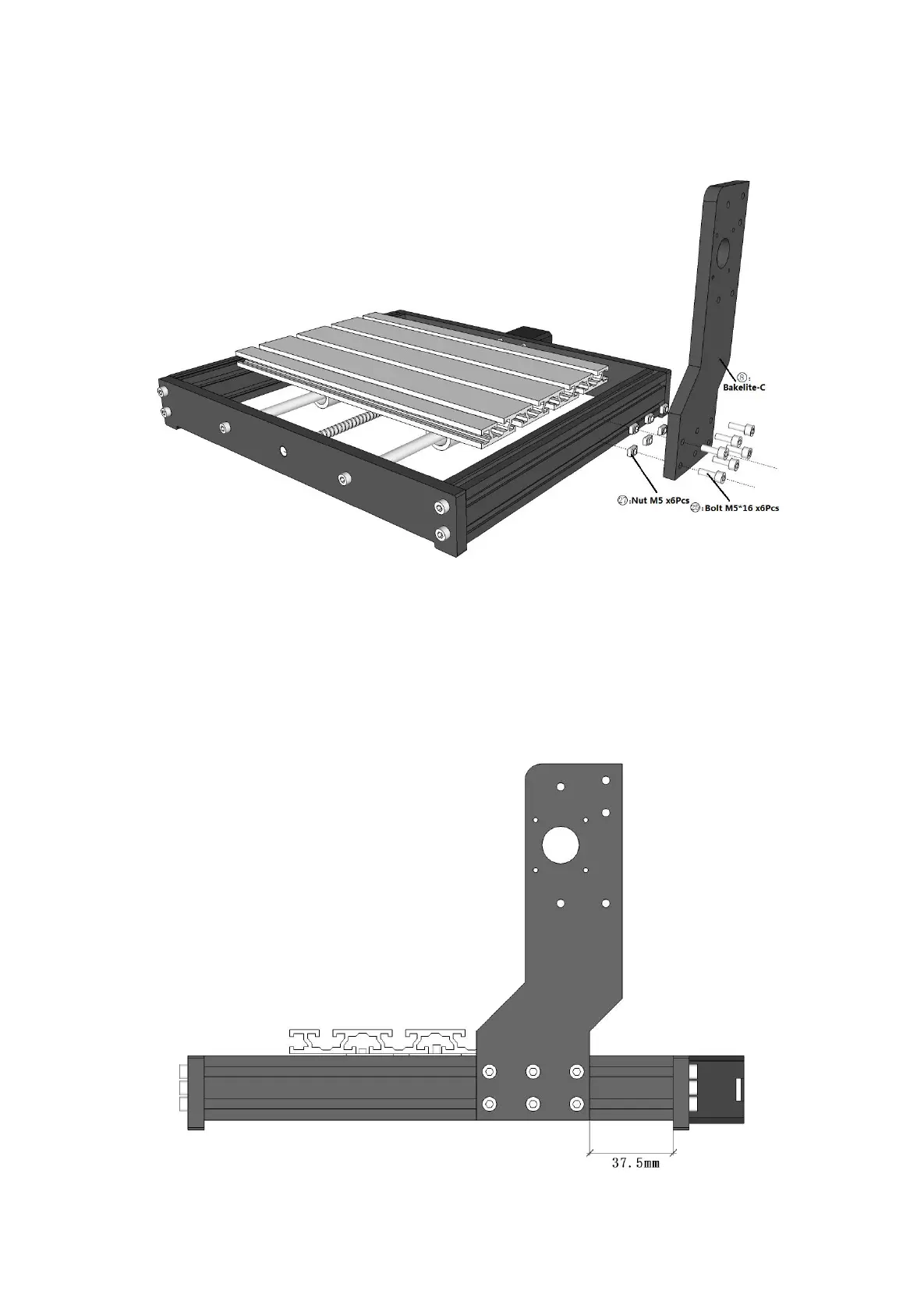

Note: the distance between Bakelite-C and 2040 aluminum profile is 37.5mm, and Bakelite-C should be kept at
90
°
from the bottom
Tips: First put the T-nut in the gap of 4040 aluminum profile, corresponding to the hole, and then tighten the
screw
Completed
