CO/Tech RP8242 - Buttons and functions

5
ENGLISH
1
2
3
4
5 6 7 8 9
10
11 12
13 14
15
16
17 18 19
2. Product description
• Portable Jump Starter and Air Compressor.
• Easily starts cars, boats, vans or tractors with 12 V batteries without thehelp of another vehicle.
• Connects directly to thebattery terminals.
• Sturdy construction with carrying handle.
• Integrated LED worklight.
• Battery status indicator.
• Built-in spark, reversed hook-up and short-circuit protection.
• Delivers up to 450A cranking power. Battery capacity: 17Ah.
• Built-in air compressor with pressure gauge, for inflating tyres, etc.
• USB outlet for charging digital cameras, MP3 players, etc. (5 V, max. 500 mA).

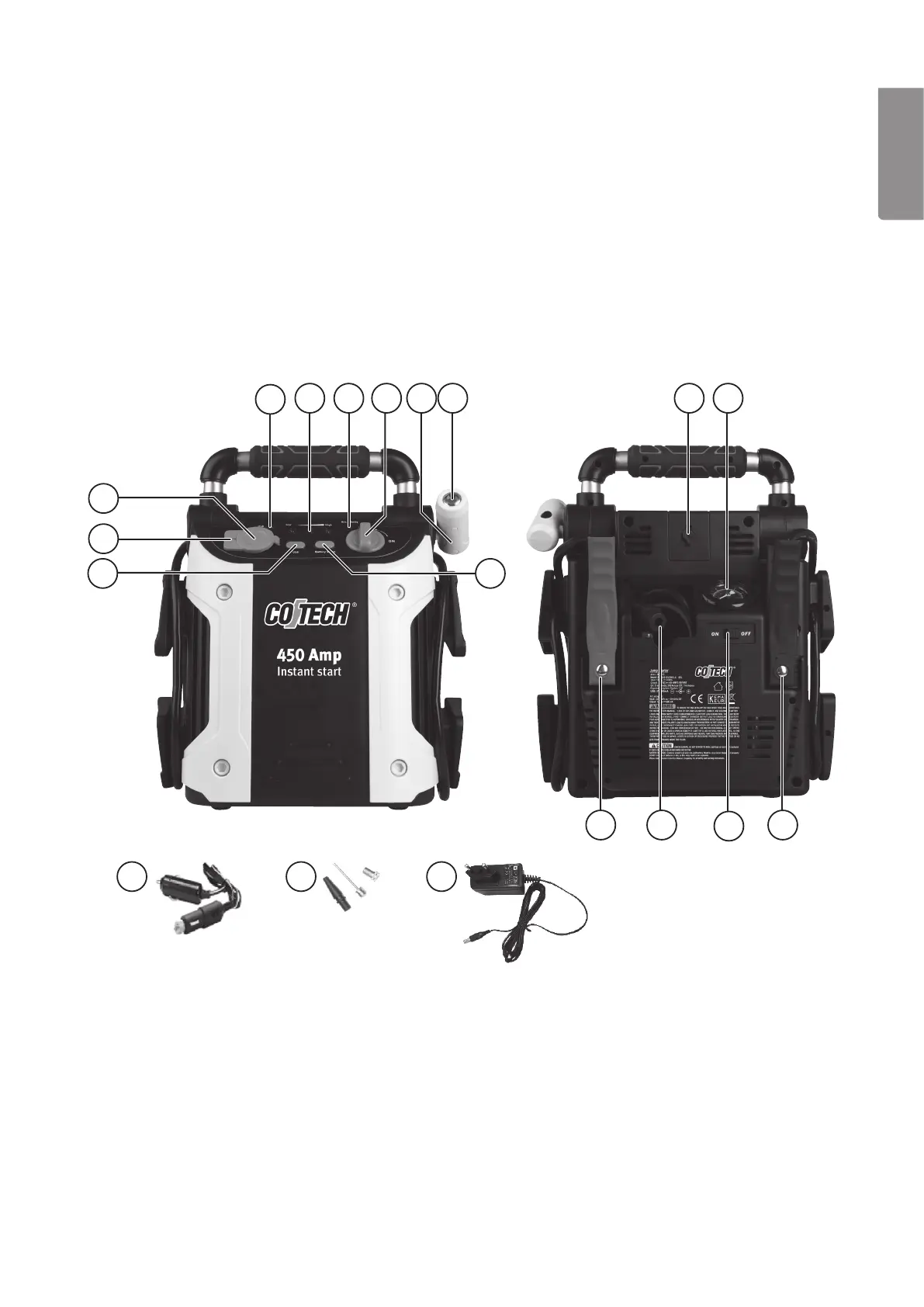

3. Buttons and functions
1. USB power button
2. USB port, 5 V DC (under protective cover)
3. 12 V socket (cigarette socket) centre-positive (+)
polarity (under protective cover)
4. USB outlet power indicator
5. Battery status LED indicators (low-high)
6. Reverse polarity indicator
7. Jump starter on/off switch
8. LED work light on/off switch
9. LED work light, pivoting
10. Battery test button
11. 12 V charger connection
12. Air pressure gauge
13. Red positive (+) battery clamp
14. Air hose and car valve nozzle
15. Air compressor on/off switch
16. Black negative (-) battery clamp
17. 12 V adaptor for cigarette lighter socket
18. Valve adaptor nozzles (3x)
19. Mains charger, output 12 V, 500 mA (centre-positive)
