Chapter 1: Introduction
4 SAILOR 6300 MF/HF DSC

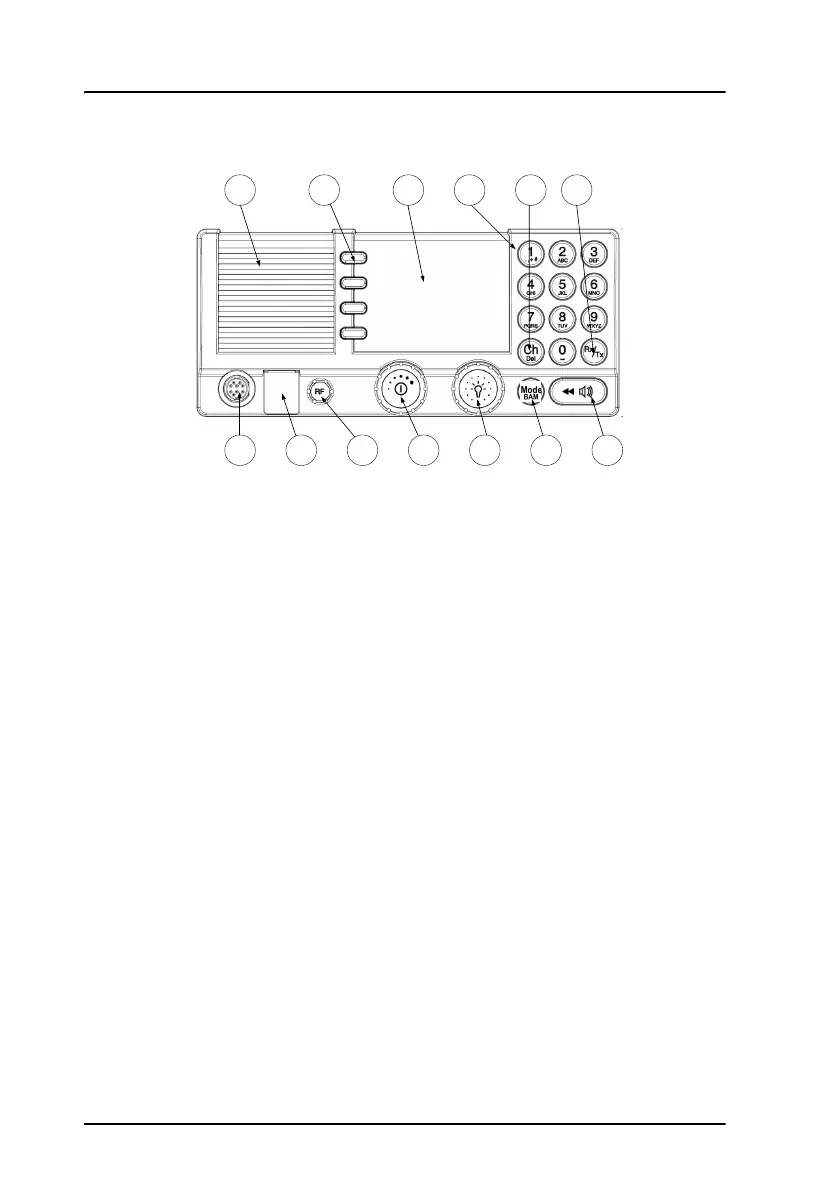

Controls on the front
1. Loudspeaker.
2. Four soft keys with function title in the display.
3. Large TFT color display.
4. Alphanumerical keys to enter Rx or Tx frequency or text strings.
5. CH button for channel selection.
6. Rx/Tx button to enter Tx or Rx frequency.
7. Connector for handset or hand microphone.
8. Distress button for sending a Distress alert.
9. RF gain control.
10. Volume knob with push function for power on/off.
11. Selector and dim knob with push function for radio operation and setup.
12. Mode/BAM button:
• Mode (short push): select the work mode: SSB, AM, LSB (optional),
DSC, Telex (optional).
• BAM (push and hold for 2 seconds): Enter the list of active alerts.
13. Replay button to play back up to 240 seconds of voice messages.
1 2 3 4 6
7 8 9 10 11 12 13
5
