Operation – SAILOR 6004 Control Panel
98-137261-F Chapter 2: Operation 15
To print messages from the SAILOR 6004 Control Panel
A printer can be connected to one of the USB connectors of the SAILOR 6004
Control Panel. Every time a Navtex message is received and applies to the
filtering set up for Printer, the message is output on the printer.
The SAILOR 6390 Navtex Receiver applies header and footer information to the
printout, stating frequency, date and time of reception and serial number of the
SAILOR 6390 Navtex Receiver. If the printed message line is longer than allowed
on the printer, the printer inserts the sign
to indicate a forced line division and
breaks the line.
You can also print a selected list. Do as follows:
1. From any list of messages (Unread, Tagged or All), tap the menu icon and
Print.
2. Tap the list you want to print.

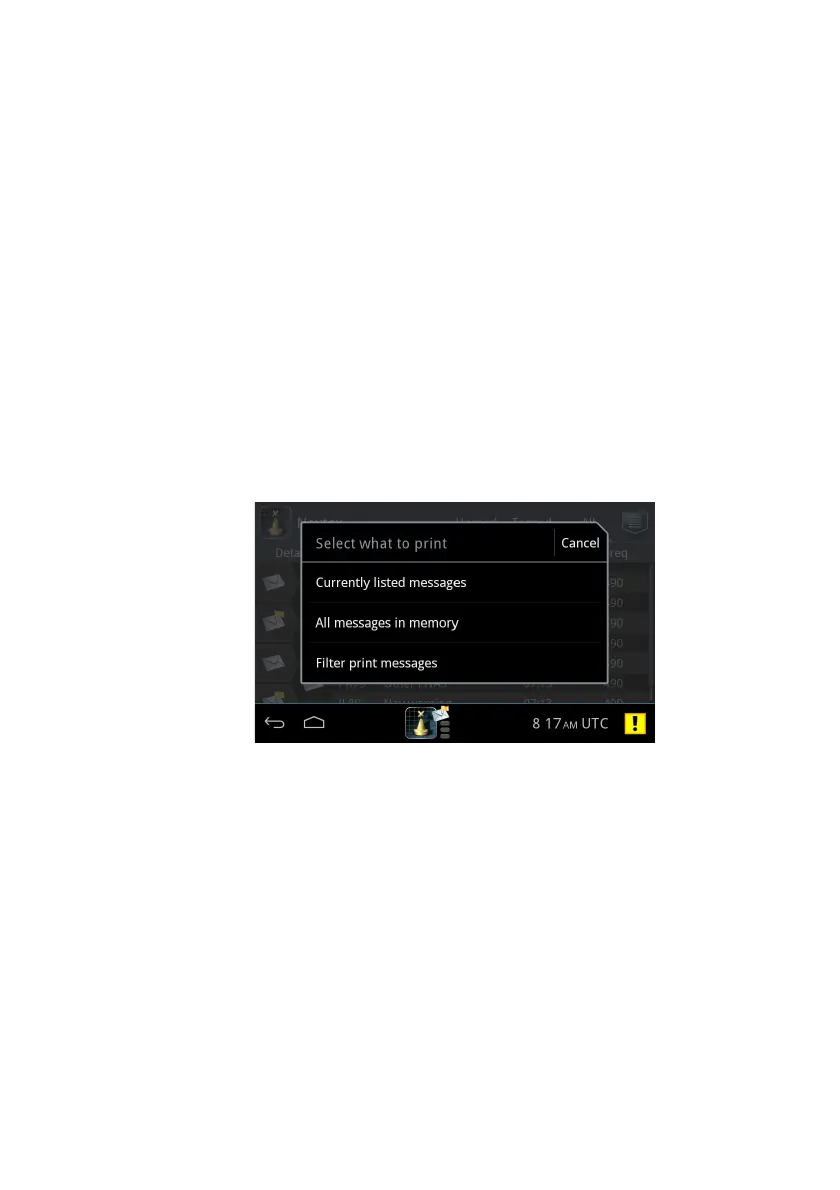

Figure 13: Print messages
