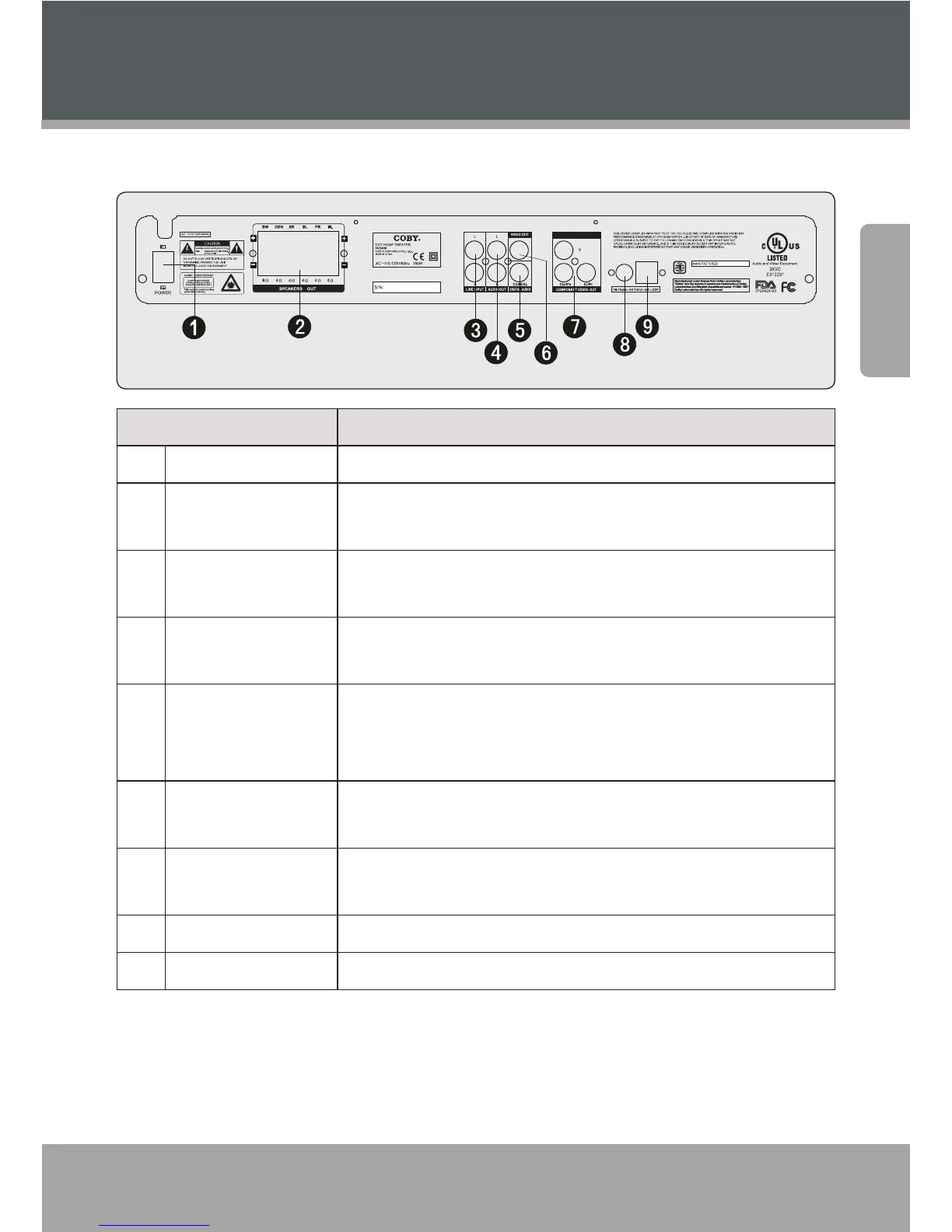

Rear Panel
Name Description
1 Main Power Switch Turn the main power on or o.
2 Speaker Output
Terminals
Connection terminals for the ve satellite speakers (2 front, 1
center, 2 rear) and the subwoofer.
3 Stereo Line Input Optional connection to play stereo audio from an external
audio source. An optional RCA stereo patch cable is required.
4 Stereo Audio Output Optional connection to output stereo audio to an external
receiver/player. The AV cable may be used for this connection.
5 Coaxial Digital
Audio Output
Optional connection to output digital audio to an external
digital decoding audio receiver. An optional digital audio cable
is required.
6 Composite Video
Output
Standard connection to output composite video (480i) to a TV.
The AV cable may be used for this connection.
7 Component Video
Output
Optional connection to output component video (480p) to a TV.
An optional component video cable is required.
8 FM Antenna Port Connection for the FM wire antenna.
9 AM Antenna Port Connection for the AM loop antenna.
