- 16 -
System Connections

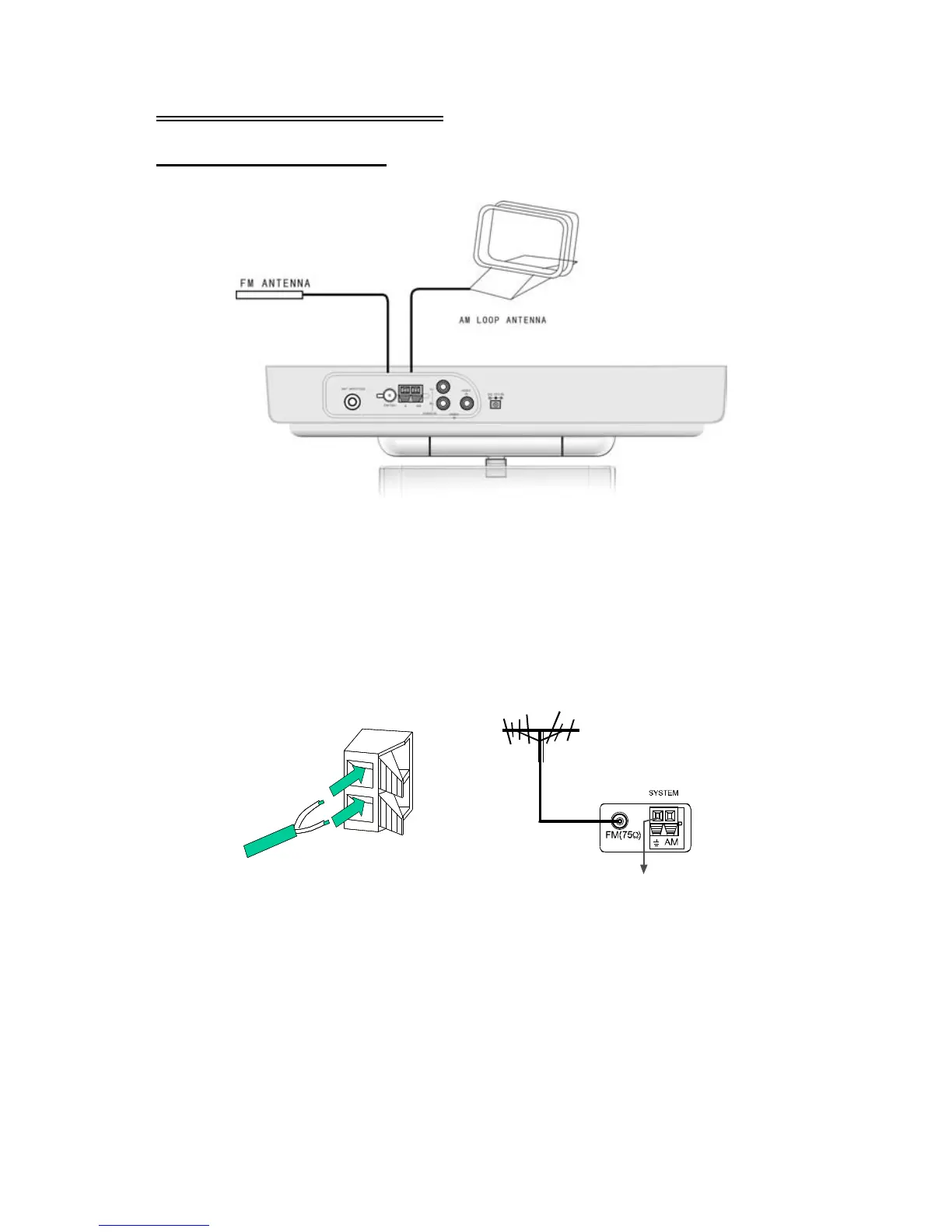

Connecting an Antenna
Connect the supplied AM/FM antennas to listen to the radio.
_ In order to improve the signal, move the AM loop antenna away from the system and
other equipment.
_ Fully extend the FM antenna.
_ Keep the FM antenna as horizontal as possible after connection.
_ When connecting the supplied AM loop antenna, connect the two black cord ends to
the AM and ground jacks as shown below.
_ If the FM reception is poor, use a 75Ω coaxial cable to connect the system to an
outdoor FM antenna as above.
_ If you connect the system with an outdoor FM antenna, you should ground the
system in order to avoid a lightning strike.
_ To prevent a gas explosion, do not connect the ground wire to a gas pipe.
