- 31 -
Installing the Unit In the Kitchen

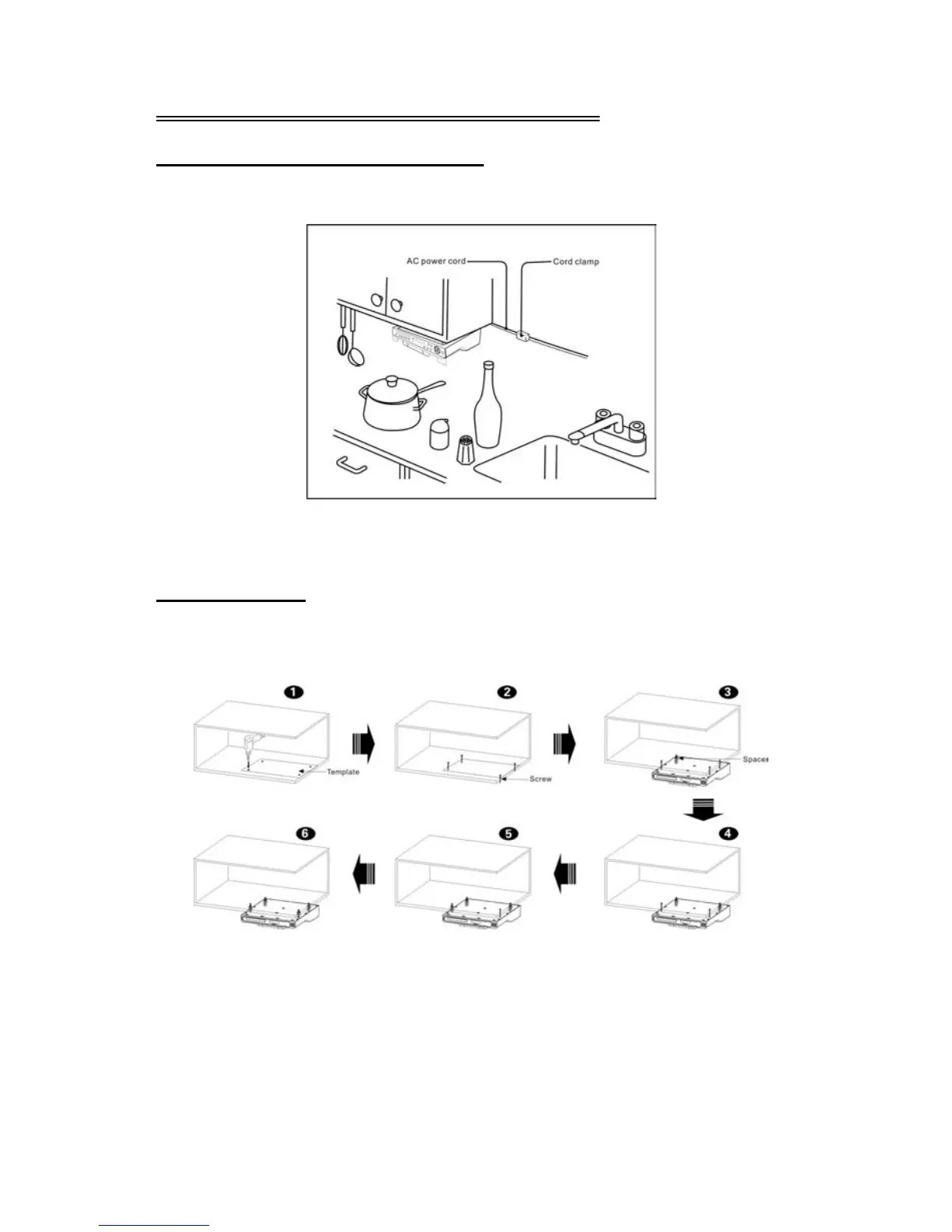

Installing the unit under a cabinet
The player may be installed in the kitchen with or without the spacer. The suggested
mounting position of the unit is under a wall cabinet. See the drawing below:
NOTE: The dimensions of the player: 14” x 3” x 11.25” (W/H/D)
There should be at least a 1.4” distance between the unit and the wall.
Installing steps
1. Mark the position of the 4 holes by using the supplied template. Drill four 0.25”
diameter holes. As shown below:
To Next Page
