Coby KTFDVD1070 - Rear and Display Panel Details; Rear Panel Input;Output Jacks; Display Panel Indicators

- 9 -
.

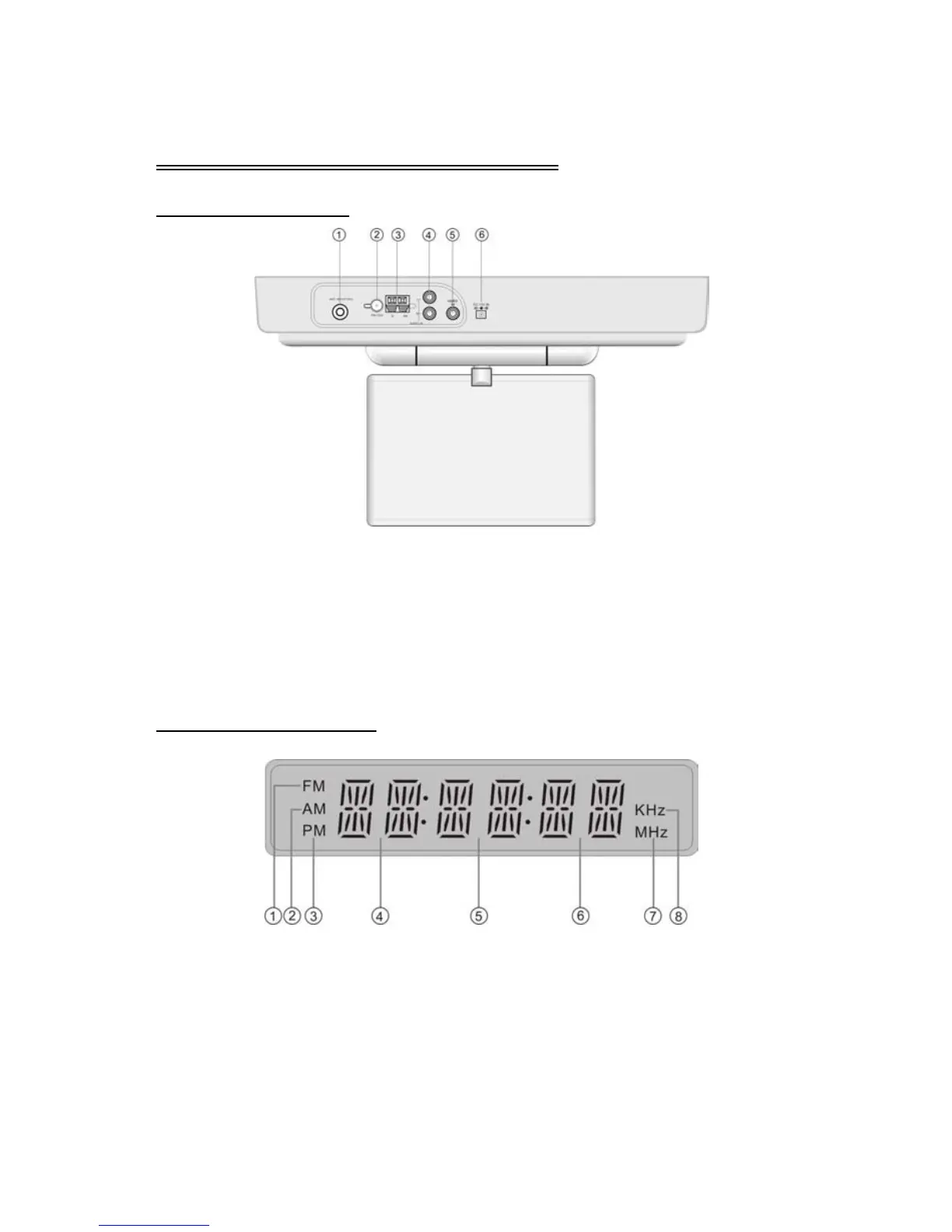

Rear Panel and display panel
Rear Panel Drawing
1. ANT INPUT jack
Connected to external antenna to
receive the TV program in the TV mode.
2. FM 75_coaxial antenna jack
3. AM antenna jack
4. Left/Right AUDIO input jack
Connection for audio input.
5. VIDEO input jack
Connection for video input.
6. Direct current 12V input jack
Display Panel Drawing
1. FM radio status indicator
2. AM radio status indicator
AM time indicator
3. PM time indicator
4. Hour or character indicators
