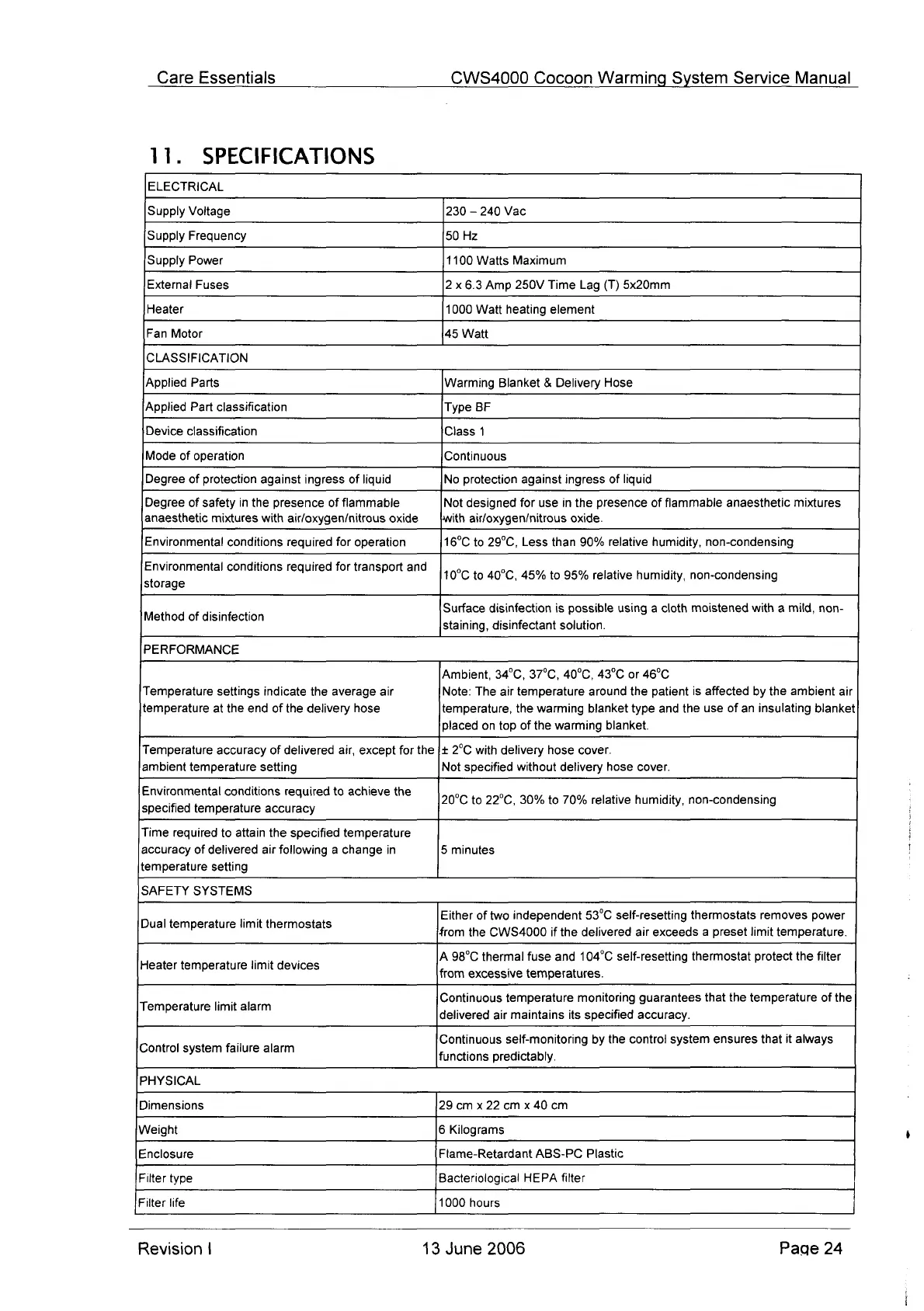

11. SPECIFICATIONS
CWS4000 Cocoon Warming System Service Manual
ELECTRICAL
Supply Voltage 230 — 240 Vac
Supply Frequency 50 Hz
Supply Power 1100 Watts Maximum
External Fuses 2 x 6.3 Amp 250V Time Lag (T) 5x20mm
Heater 1000 Watt heating element
Fan Motor 45 Watt
CLASSIFICATION
Applied Parts Warming Blanket & Delivery Hose
Applied Part classification Type BF
Device ciassification Class 1
Mode of operation Continuous
Degree of protection against ingress of liquid
No protection against ingress of liquid
Degree of safety in the presence of flammable
anaesthetic mixtures with air/oxygen/nitrous oxide
Not designed for use in the presence of flammable anaesthetic mixtures
with atr/oxygen/nitrous oxide.
Environmental conditions reguired for operation 16°C to 29°C, Less than 90% relative humidity, non-condensing
Environmental conditions required for transport and
storage
10°C to 40°C, 45% to 95% relative humidity, non-condensing
Method of disinfection
Surface disinfection is possible using a cloth moistened with a mild, non-
staining, disinfectant solution.
PERFORMANCE
Temperature settings indicate the average air
temperature at the end of the delivery hose
Ambient, 34°C, 37°C, 40°C, 43°C or 46°C
Note: The air temperature around the patient is affected by the ambient air
temperature, the warming blanket type and the use of an insulating blanket
placed on top of the warming blanket.
Temperature accuracy of delivered air, except for the
ambient temperature setting
+ 2°C with delivery hose cover.
Not specified without delivery hose cover.
Environmental conditions required to achieve the
specified temperature accuracy
20°C to 22°C, 30% to 70% relative humidity, non-condensing
Time required to attain the specified temperature
accuracy of delivered air following a change in
temperature setting
5 minutes
SAFETY SYSTEMS
Dual temperature limit thermostats
Either of two independent 53°C self-resetting thermostats removes power
from the CWS4000 if the delivered air exceeds a preset limit temperature.
Heater temperature limit devices
A 98°C thermal fuse and 104°C self-resetting thermostat protect the filter
from excessive temperatures.
Temperature limit alarm
Continuous temperature monitoring guarantees that the temperature of the
delivered air maintains its specified accuracy.
Control system failure alarm
Continuous self-monitoring by the control system ensures that it always
functions predictably.
PHYSICAL
Dimensions 29 cm x 22 cm x 40 cm
Weight 6 Kilograms
Enclosure Flame-Retardant ABS-PC Plastic
Filter type Bacteriological HEPA filter
Filter life 1000 hours
Revision |
13 June 2006 Page 24
