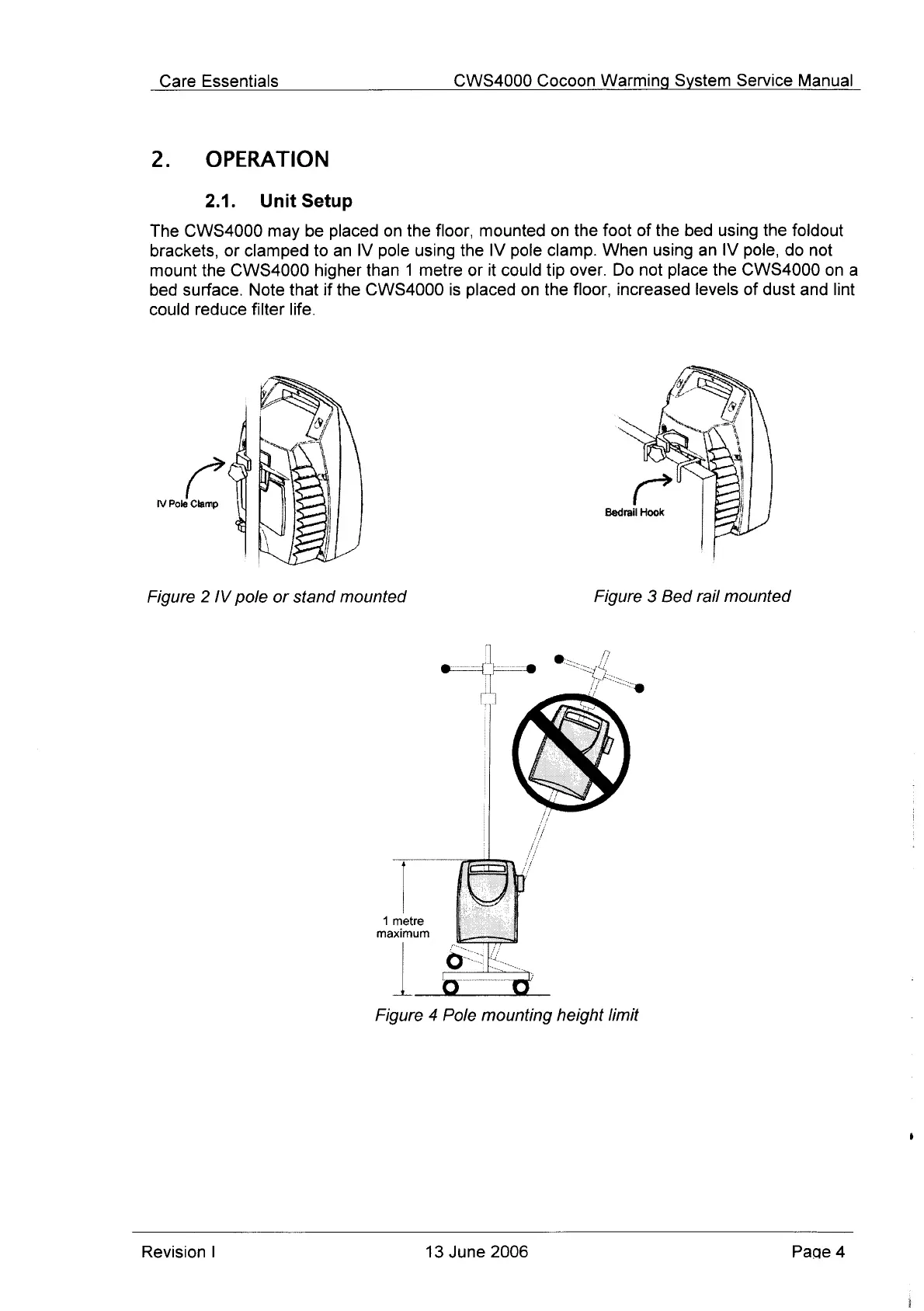

2. OPERATION
2.1. Unit Setup
The CWS4000 may be placed on the floor, mounted on the foot of the bed using the foldout
brackets, or clamped to an IV pole using the IV pole clamp. When using an IV pole, do not
mount the CWS4000 higher than 1 metre or it could tip over. Do not place the CWS4000 ona
bed surface. Note that if the CWS4000 is placed on the floor, increased levels of dust and lint
could reduce filter life.
IV Pole Clamp
maximum
Figure 4 Pole mounting height limit
