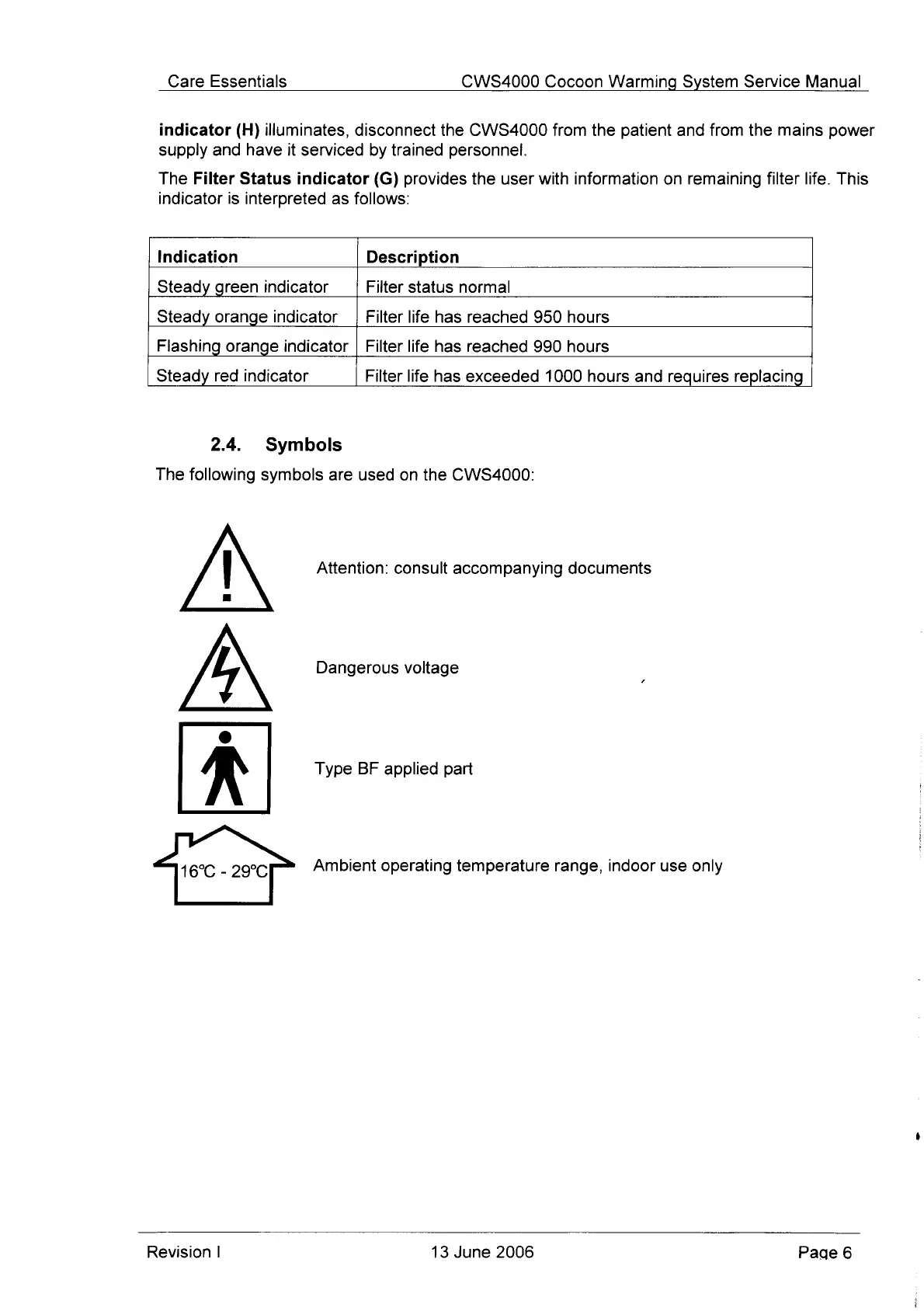

Care Essentials CWS4000 Cocoon Warming System Service Manual
indicator (H) illuminates, disconnect the CWS4000 from the patient and from the mains power
supply and have it serviced by trained personnel.
The Filter Status indicator (G) provides the user with information on remaining filter life. This
indicator is interpreted as follows:
Indication Description
Steady green indicator Filter status normal
Steady orange indicator | Filter life has reached 950 hours
Flashing orange indicator | Filter life has reached 990 hours
Steady red indicator Filter life has exceeded 1000 hours and requires replacing
2.4. Symbols
The following symbols are used on the CWS4000:
个 Attention: consult accompanying documents
Dangerous voltage
A Type BF applied part
16°C - 29°C Ambient operating temperature range, indoor use only
Revision | 13 June 2006 Page 6
