Code Alarm ca6554 - Page 38

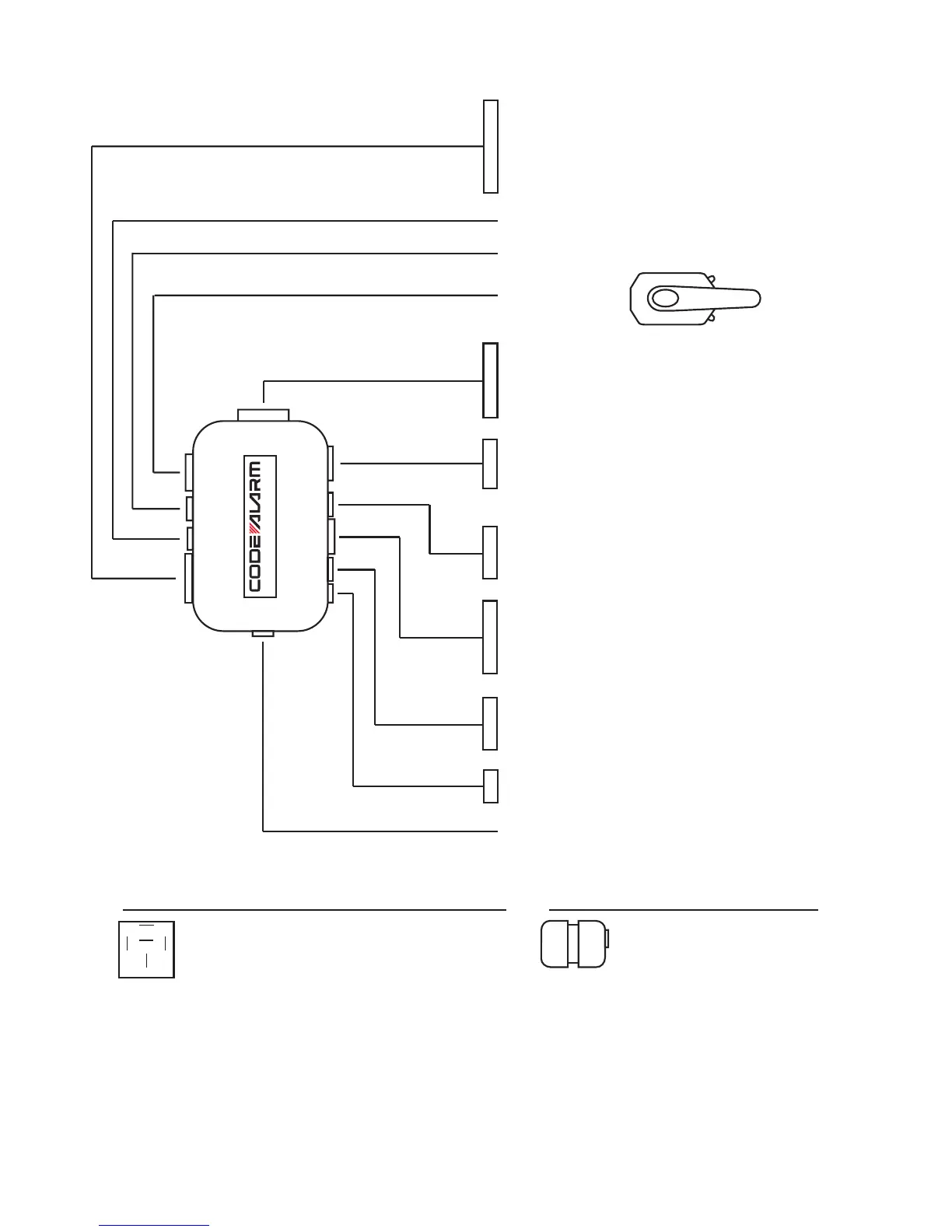

38 ca6554 Install revA
DBI PORT
SHOCK SENSOR PORT
ca6554
TELEMATIC PORT
BLUE/WHITE INSTANT TRIGGER INPUT ( - )
GREEN DOOR TRIGGER INPUT ( - )
PURPLE DOOR TRIGGER INPUT ( + )
WHITE/BLUE EXTERNAL START INPUT ( - )
GRAY HOOD INPUT ( - )
GRAY/RED PARKING BRAKE INPUT ( - )
BROWN/RED BRAKE INPUT ( + )
PURPLE/WHITE TACH INPUT
#4120290
PURPLE STARTER OUTPUT - MOTOR SIDE ( + )
RED BATTERY 12V ( + )
ORANGE ACCESSORY 1 ( + )
PINK/WHITE IGNITION 2 ( + )
RED/WHITE BATTERY 12V ( + )
PINK IGNITION 1 ( + )
#4120110
WHITE/RED PARKING LIGHT INPUT
WHITE PARKING LIGHT OUTPUT
BLACK GROUND
BROWN SIREN OUTPUT ( + )
#4120145
PINK/BLACK AUX 5 OUTPUT ( - )
ORANGE/BLACK AUX 4 OUTPUT ( - )
GRAY/BLACK AUX 3 OUTPUT ( - )
WHITE/BLACK AUX 2 OUTPUT ( - )
#4120184
BROWN/BLACK HORN OUTPUT ( - )
BLUE/BLACK START STATUS / ACTIVE OUTPUT ( - )
VIOLET/BLACK AUX 1 OUTPUT ( - )
RED/WHITE TRUNK RELEASE OUTPUT ( - )
LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )
ORANGE GROUND WHEN ARMED ( - )
#1032714
BLACK/YELLOW PULSE DURING CRANK ( - )
GREEN/WHITE PULSE AFTER SHUTDOWN ( - )
LT BLUE FACTORY ARM / PULSE AFTER START ( - )
LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )
#4120102
BLUE UNLOCK ( - )
OPEN
GREEN LOCK ( - )
#1031423
#4360519
RED BATTERY 12V ( + )
BLACK
GROUND WHEN ARMED ( - )
BLUE FULL TRIGGER ( - )
GREEN WARN AWAY TRIGGER ( - )
SHOCK SENSOR & HARNESS
#4700023
ORANGE 86 - ARMED OUTPUT ( - )
RED 85 - IGNITION ( + )
BLACK 87A - STARTER OUTPUT - MOTOR SIDE
WHITE / BLACK 30 - STARTER INPUT - KEY SIDE
OPEN 87 - OPEN
STARTER INTERUPT RELAY & HARNESS
86
85
30
87
87a
#1024405
ANTENNA
LED
VALET
#4120291
#4180053
