Code Alarm Professional ca5054 - Wire Connection Guide; 7 Pin Main Harness

4
z
<{
~
z
c..
,...._
(f)
zr-
-I
a..
C)
('I)-
.....J
.....
a::
<(
.....
(f)
z
a:
<0
z:::S:::
-(.)
a..
a
N.....J

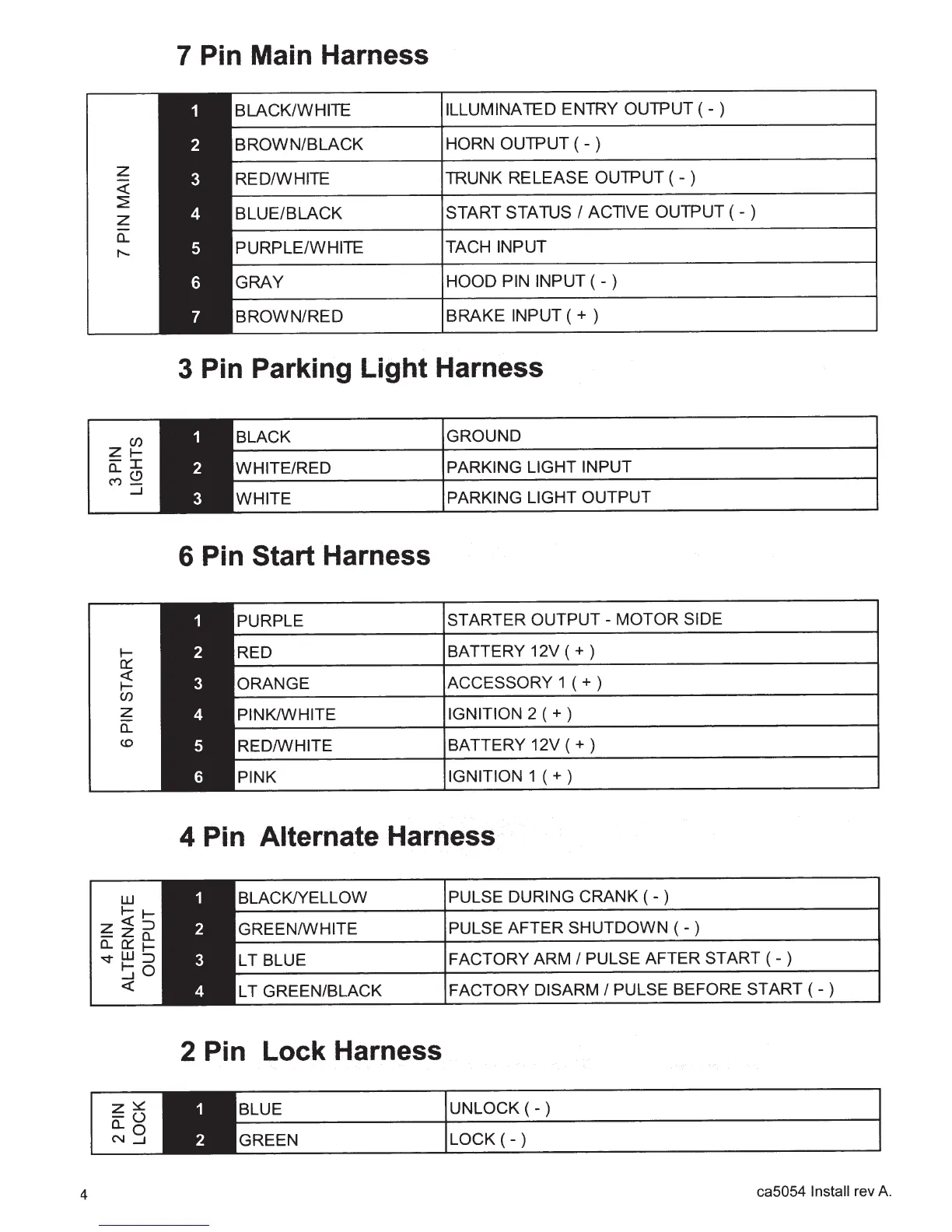

7 Pin Main Harness
BLACK/WHITE
ILLUMINATED ENTRY
OUTPUT
(
- )
BROWN/BLACK
HORN OUTPUT
(-)
RED/WHITE
TRUNK
RELEASE
OUTPUT
(
- )
BLUE/BLACK
START
STATUS
I
ACTIVE
OUTPUT
(
- )
PURPLE/WHITE TACH
INPUT
GRAY
HOOD PIN INPUT
(-)
BROWN/RED
BRAKE
INPUT
(
+ )
3 Pin Parking Light Harness
BLACK
GROUND
WHITE/RED
PARKING LIGHT INPUT
WHITE
PARKING LIGHT
OUTPUT
6 Pin
Start
Harness
PURPLE
STARTER
OUTPUT-
MOTOR SIDE
RED
BATTERY 12V (
+)
ORANGE ACCESSORY
1
( + )
PINK/WHITE
IGNITION
2
( + )
RED/WHITE BATTERY 12V (
+)
PINK
IGNITION
1
( + )
4 Pin Alternate Harness
BLACK/YELLOW PULSE DURING
CRANK (
- )
GREEN/WHITE PULSE
AFTER
SHUTDOWN
(
- )
LT BLUE
FACTORY
ARM
I
PULSE AFTER START
(-)
L T GREEN/BLACK
FACTORY DISARM
I
PULSE
BEFORE START
(
- )
2 Pin Lock Harness
BLUE
UNLOCK
(-)
GREEN
LOCK
(-)
ca5054 Install rev A.
