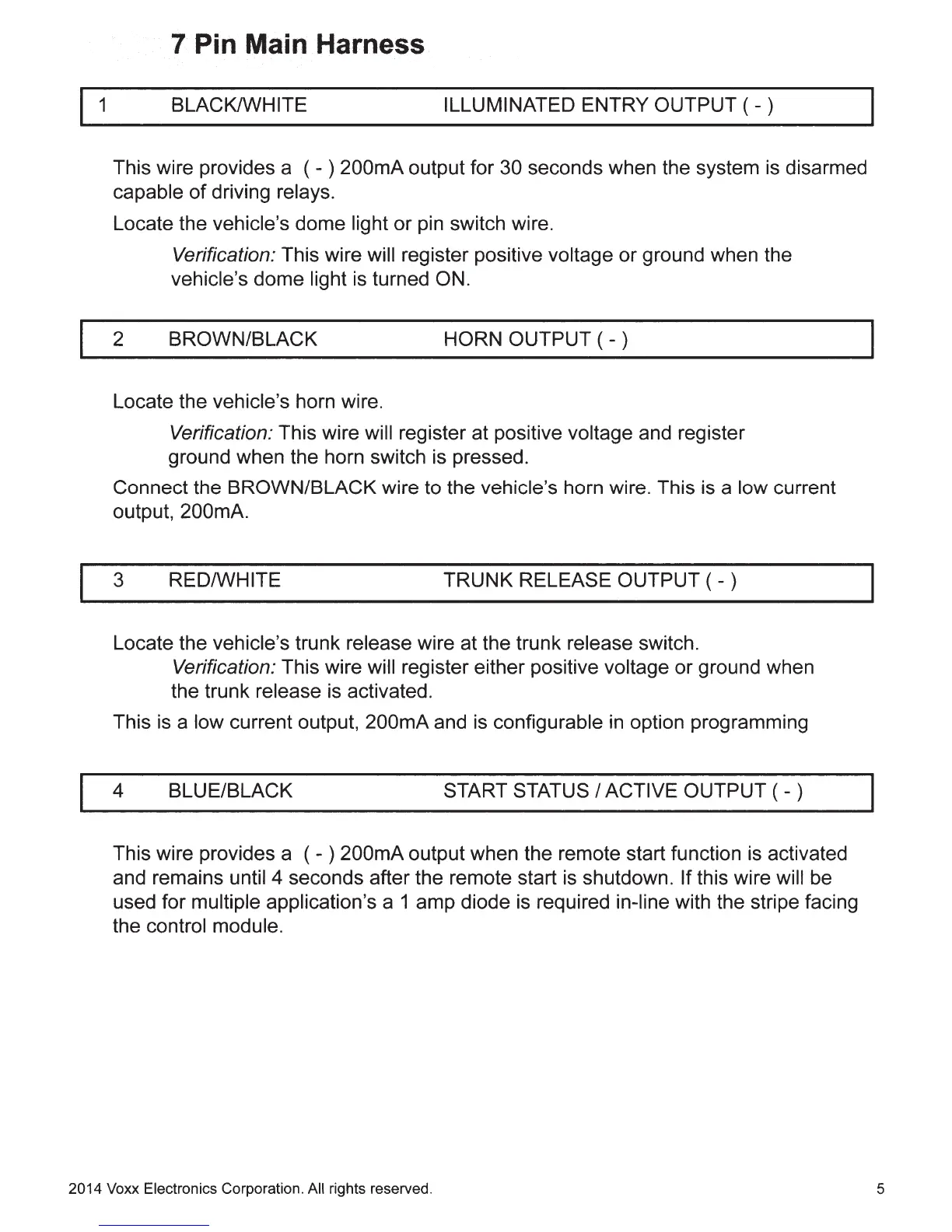

1
7
Pin
Main
H.arness
BLACK/WHITE ILLUMINATED ENTRY OUTPUT
(-)
This wire provides a ( - ) 200mA output for 30 seconds when the system
is
disarmed
capable
of
driving relays.
Locate the vehicle's dome light or pin switch wire.
2
Verification: This wire will register positive voltage or ground when the
vehicle's dome light
is
turned ON.
BROWN/BLACK HORN OUTPUT ( - )
Locate the vehicle's horn wire.
Verification: This wire will register at positive voltage and register
ground when the horn switch is pressed.
Connect the BROWN/BLACK wire to the vehicle's horn wire. This is a low current
output, 200mA.
3 RED/WHITE TRUNK RELEASE OUTPUT ( - )
Locate the vehicle's trunk release wire at the trunk release switch.
Verification: This wire will register either positive voltage or ground when
the trunk release is activated.
This is a low current output, 200mA and is configurable
in
option programming
4 BLUE/BLACK START STATUS I ACTIVE OUTPUT ( - )
This wire provides a ( - ) 200mA output when the remote start function is activated
and remains
until4
seconds after the remote start is shutdown. If this wire will be
used for multiple application's a 1 amp diode is required in-line with the stripe facing
the control module.
2014 Voxx Electronics Corporation. All rights reserved.
5
