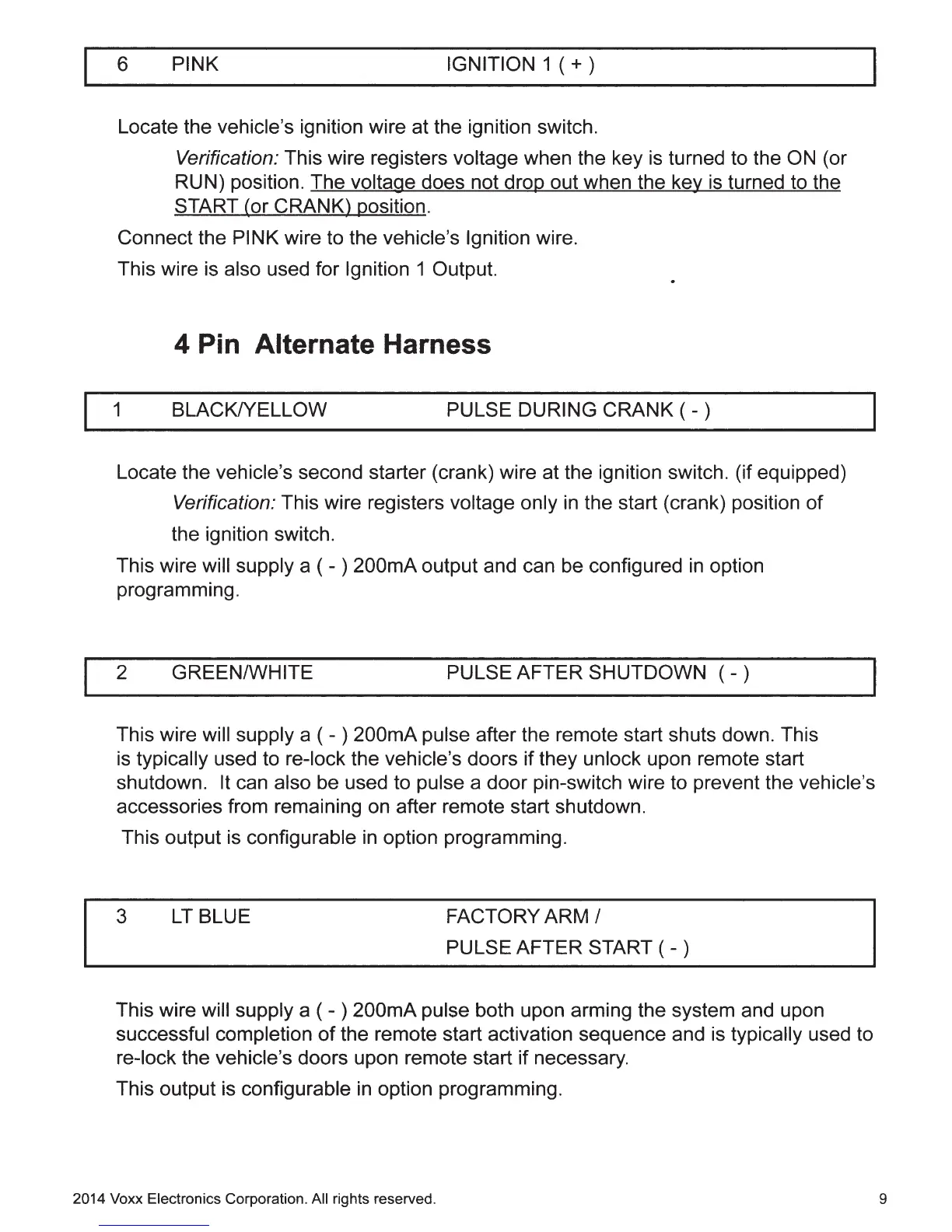

6
PINK IGNITION 1 (
+)
Locate the vehicle's ignition wire at the ignition switch.
Verification: This wire registers voltage when the key is turned to the ON (or
RUN) position. The voltage does not drop out when the key is turned to the
START (or CRANK) position.
Connect the PINK wire to the vehicle's Ignition wire.
This wire is also used for Ignition 1 Output.
4 Pin Alternate Harness
1
BLACK/YELLOW PULSE DURING
CRANK
(-)
Locate the vehicle's second starter (crank) wire at the ignition switch. (if equipped)
Verification: This wire registers voltage only
in
the start (crank) position
of
the ignition switch.
This wire will supply a
(-)
200mA
output and can be configured
in
option
programming.
2 GREEN/WHITE PULSE
AFTER
SHUTDOWN ( - )
This wire will supply a ( - )
200mA
pulse after the remote start shuts down. This
is typically used to re-lock the vehicle's doors
if
they unlock upon remote start
shutdown. It can also be used to pulse a door pin-switch wire to prevent the vehicle's
accessories from remaining on after remote start shutdown.
This output is configurable
in
option programming.
3
LT
BLUE FACTORY ARM I
PULSE
AFTER
START ( - )
This wire will supply a ( - )
200mA
pulse both upon arming the system and upon
successful completion
of
the remote start activation sequence and is typically used to
re-lock the vehicle's doors upon remote start
if
necessary.
This output is configurable
in
option programming.
2014 Voxx Electronics Corporation. All rights reserved.
9
