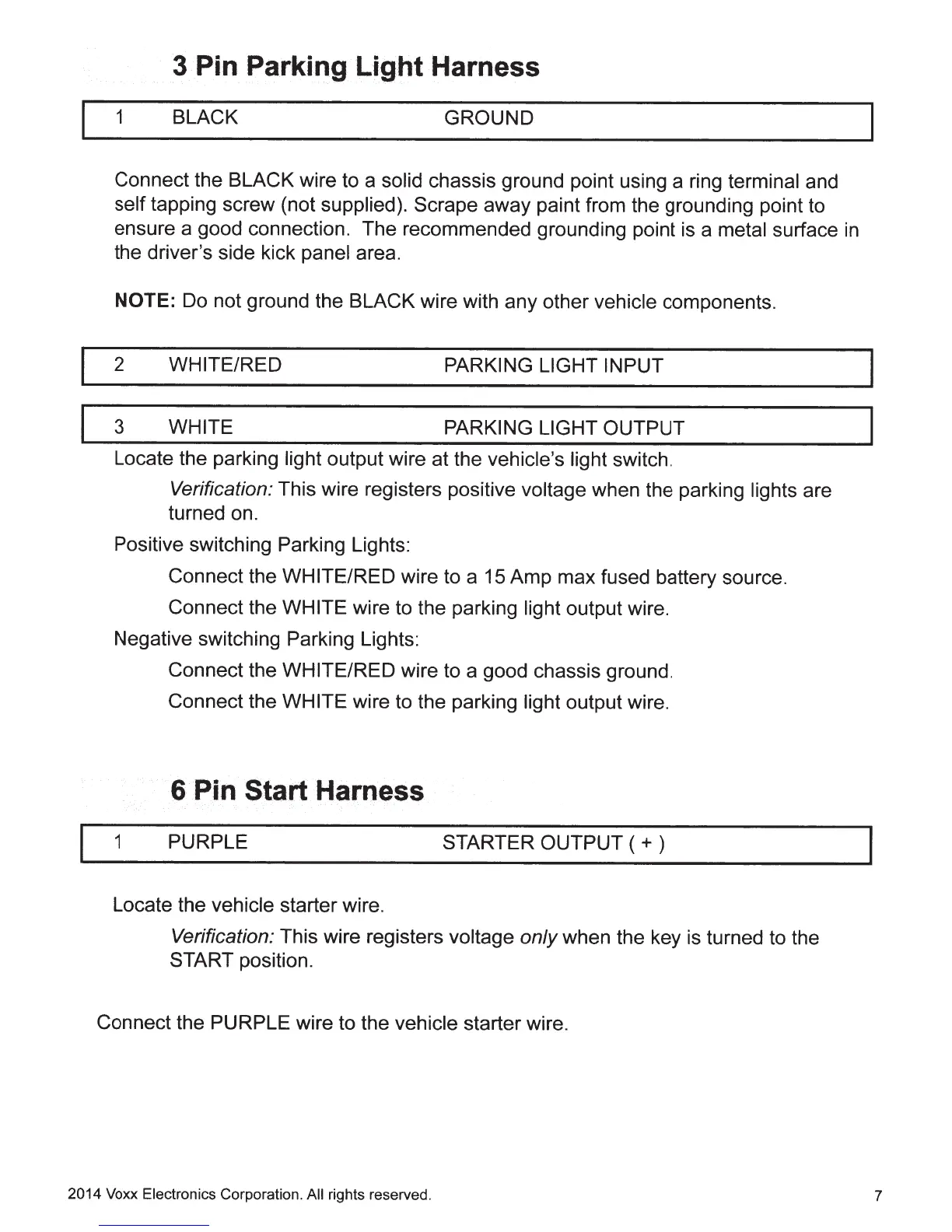

3 Pin Parking Light Harness
1
BLACK
GROUND
Connect the BLACK wire to a
solid chassis ground point using a ring terminal and
self
tapping screw (not
supplied).
Scrape away paint from the grounding point to
ensure a good connection. The recommended grounding point is a
metal
surface
in
the driver's side kick panel area.
NOTE:
Do not ground the BLACK wire with any other
vehicle
components.
2
WHITE/RED PARKING LIGHT INPUT
3
WHITE
PARKING LIGHT OUTPUT
Locate the parking
light
output wire at the
vehicle's light
switch.
Verification:
This wire registers positive
voltage
when the parking
lights
are
turned on.
Positive switching Parking Lights:
Connect the
WHITE/RED wire to a 15 Amp max fused battery source.
Connect the
WHITE
wire to the parking light output wire.
Negative switching Parking Lights:
1
Connect the WHITE/RED wire to a good chassis ground.
Connect the
WHITE
wire to the parking
light
output wire.
6 Pin Start
Harness
PURPLE
STARTER OUTPUT
(
+ )
Locate the
vehicle starter wire.
Verification:
This wire registers voltage
only
when the key is turned to the
START position.
Connect the PURPLE wire to the
vehicle
starter wire.
2014
Voxx
Electronics
Corporation.
All
rights reserved.
