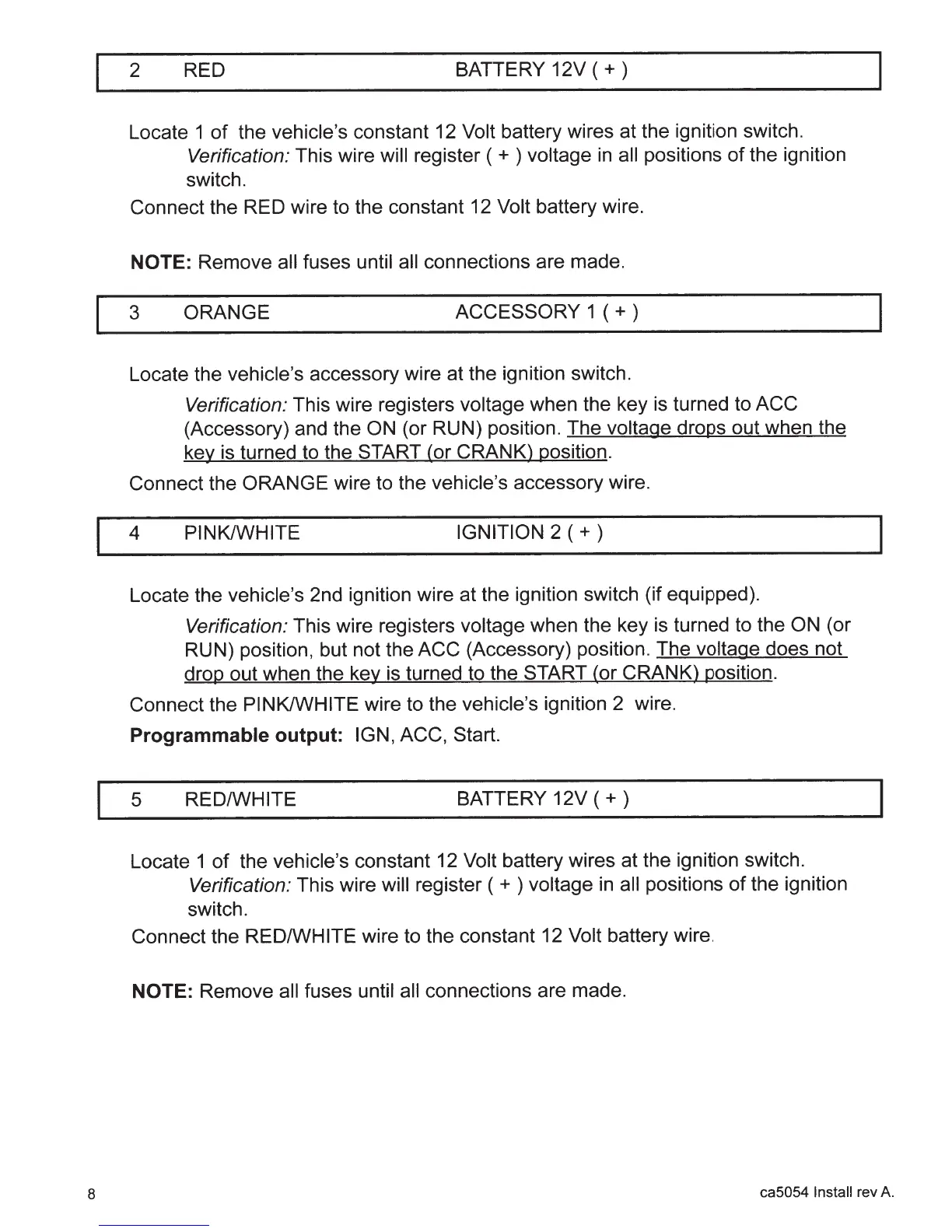

8
2
RED
BATTERY
12V
(
+)
Locate 1
of
the vehicle's
constant 12 Volt
battery wires at the ignition switch.
Verification:
This wire
will
register ( + ) voltage
in
all
positions
of
the ignition
switch.
Connect
the RED wire to the constant 12 Volt
battery wire.
NOTE:
Remove
all
fuses
until all
connections are made.
3
ORANGE
ACCESSORY
1 ( + )
Locate the
vehicle's
accessory
wire
at
the ignition switch.
Verification:
This wire registers
voltage
when
the key is turned to
ACC
(Accessory) and
the
ON
(or
RUN)
position.
The
voltage
drops
out
when
the
key is turned to the START (or
CRANK)
position.
Connect
the
ORANGE
wire to the vehicle's accessory wire.
4
PINK/WHITE
IGNITION
2
(
+ )
Locate the
vehicle's
2nd ignition wire
at
the ignition switch (if equipped).
Verification:
This wire registers
voltage
when
the key is turned to the
ON
(or
RUN) position, but not the
ACC
(Accessory) position.
The
voltage
does
not
drop
out
when
the key is turned to the START (or
CRANK)
position.
Connect
the
PINK/WHITE
wire to
the
vehicle's
ignition 2 wire.
Programmable output:
IGN,
ACC, Start.
5
RED/WHITE
BATTERY
12V
(
+)
Locate 1
of
the vehicle's
constant 12
Volt
battery wires at the ignition switch.
Verification:
This wire
will
register ( + )
voltage in all
positions
of
the ignition
switch.
Connect
the
RED/WHITE
wire to
the
constant 12 Volt battery wire.
NOTE:
Remove
all
fuses
until all
connections are made.
ca5054 Install
rev
A.
