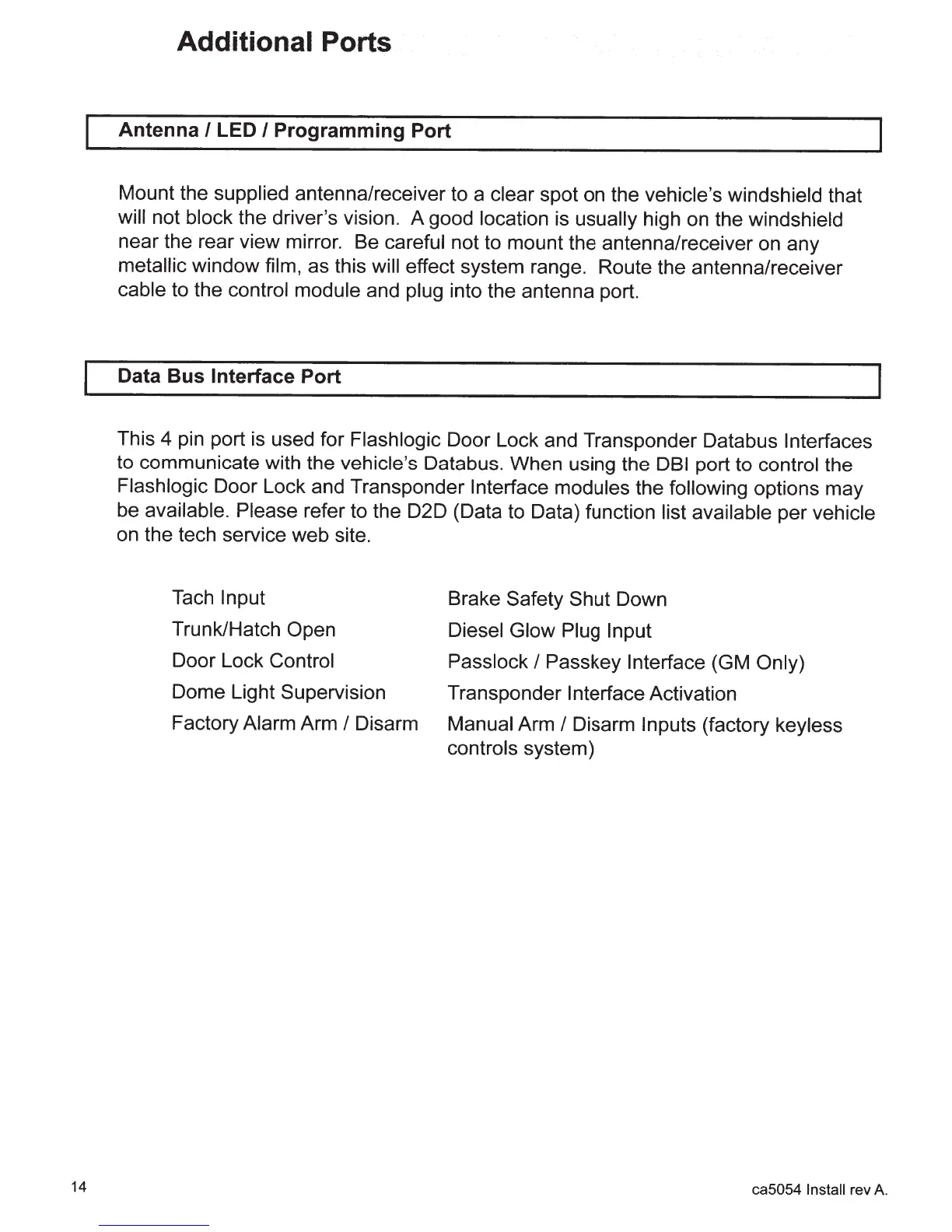

Additional Ports
Antenna
I
LED
I
Programming Port
Mount the
supplied
antenna/receiver to a
clear
spot on the
vehicle's windshield
that
will
not
block
the driver's vision. A good
location
is
usually high on the windshield
near the rear view mirror. Be careful not
to mount the antenna/receiver on any
metallic
window
film,
as this will
effect system range. Route the antenna/receiver
cable to the
control module
and
plug
into the antenna port.
Data Bus Interface Port
This 4 pin port
is
used for
Flashlogic
Door Lock and Transponder Databus
Interfaces
to communicate with the
vehicle's
Databus. When using the
DBI
port to
control
the
Flashlogic
Door Lock and Transponder
Interface modules
the
following options may
be
available. Please
refer to the
020
(Data to Data) function
list available
per
vehicle
on
the tech service web site.
Tach
Input Brake
Safety Shut Down
Trunk/Hatch
Open Diesel Glow Plug Input
Door Lock
Control Passlock
I
Passkey Interface (GM
Only)
Dome Light Supervision Transponder
Interface
Activation
Factory
Alarm
Arm
I
Disarm Manual
Arm
I Disarm
Inputs (factory keyless
controls system)
