Code Alarm Professional ca5054 - Positive Multiplexed Locks; Adding Aftermarket Actuators

Positive
Multiplexed
Locks
All
Door Lock and
Unlock:
Locate the
lock
I unlock
wire at the
vehicle's lock
I unlock
switch.
Verification:
This wire
will
show variable positive voltage
when the switch
is
activated.
Please consult the wire and location
chart for specific resistor
values
for your vehicle.

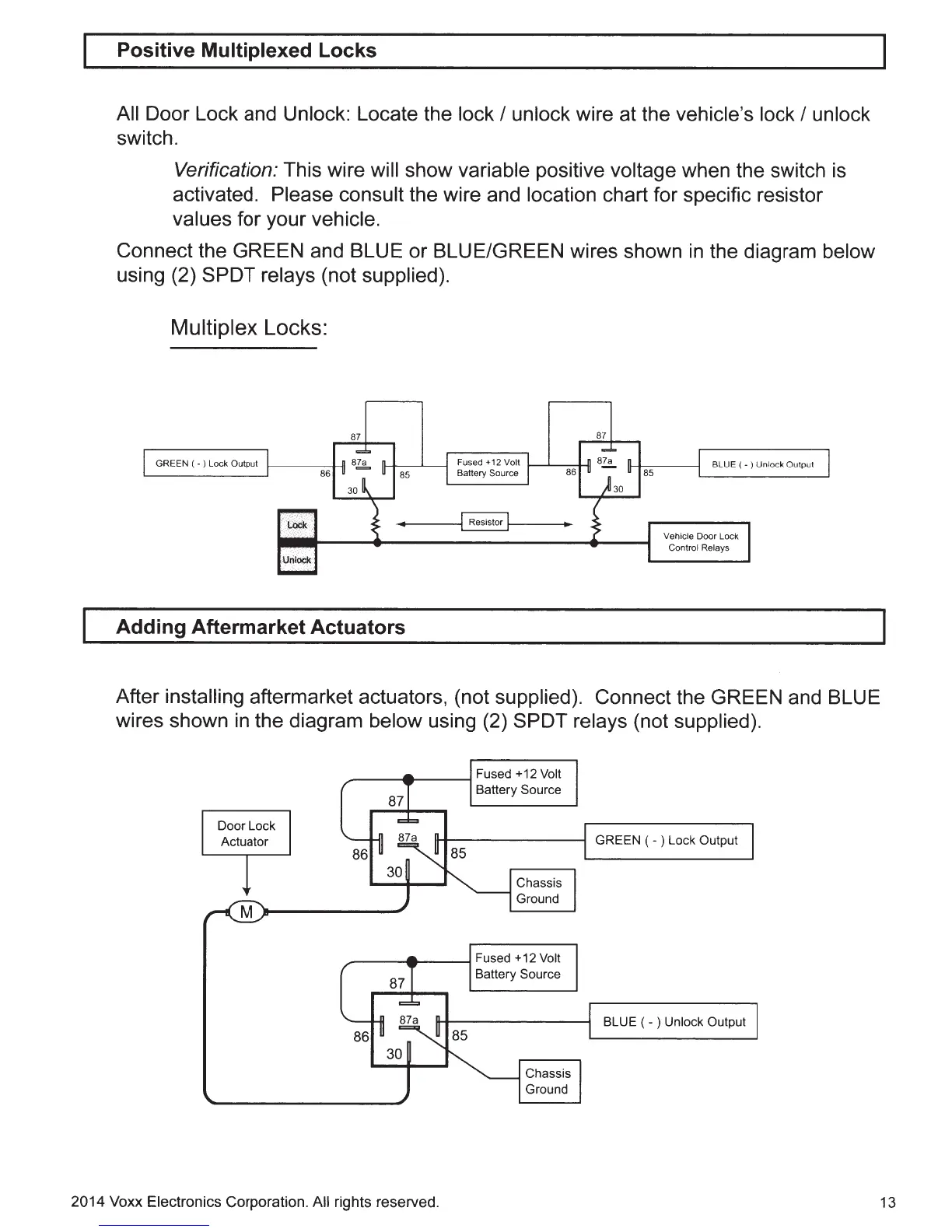

Connect the GREEN and BLUE or BLUE/GREEN wires shown
in
the diagram
below
using (2) SPOT
relays
(not supplied).
Multiplex
Locks:
Adding Aftermarket Actuators
BLUE ( - ) Unlock
Output
Vehicle
Door Lock
Control Relays
After
installing
aftermarket actuators, (not supplied). Connect the GREEN and BLUE
wires shown
in
the diagram below
using (2) SPOT relays
(not
supplied).
-----f------f
Fused +12
Volt
Battery Source
___
.,__-I
Fused +12 Volt
87
Battery Source
BLUE ( - ) Unlock
Output
