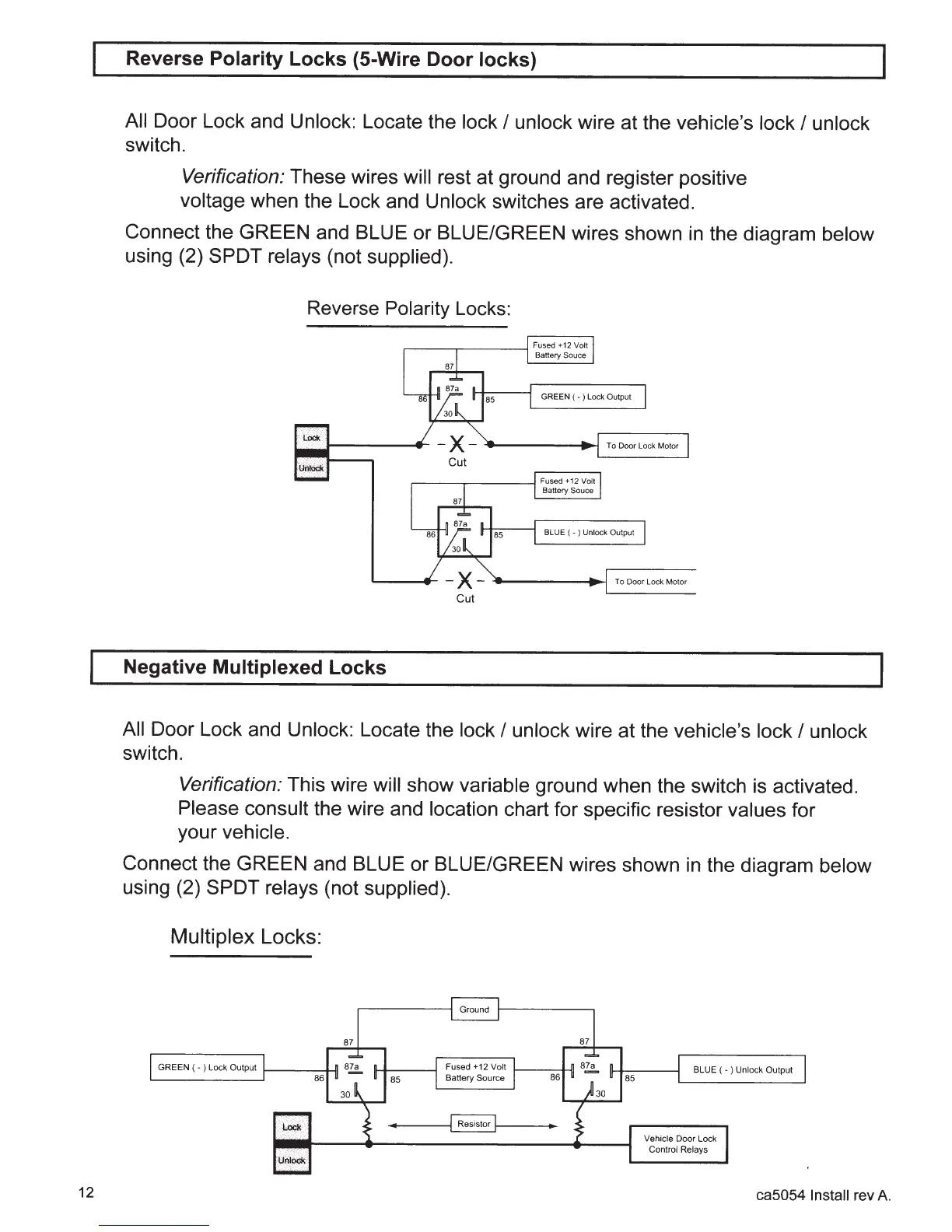

Code Alarm Professional ca5054 - Reverse Polarity Locks; Negative Multiplexed Locks

12
Reverse
Polarity
Locks
(5-Wire
Door
locks)
All
Door Lock and Unlock: Locate the lock
I
unlock wire at the vehicle's lock
I
unlock
switch.
Verification: These wires
will rest at ground and register positive
voltage when the Lock and Unlock switches are activated.
Connect the GREEN and BLUE or BLUE/GREEN wires shown
in
the diagram below
using (2)
SPOT
relays (not supplied).
Reverse Polarity Locks:
GREEN (
-
) Lock Output
BLUE (
-
)
Unlock
Output
...._
___
~
To Door Lock Motor
Cut
Negative Multiplexed
Locks
All
Door Lock and Unlock: Locate
the lock
I
unlock wire at the vehicle's lock
I
unlock
switch.
Verification: This wire
will show variable ground when the switch is activated.
Please consult the wire and location chart for specific resistor values for
your vehicle.
Connect the GREEN and BLUE or BLUE/GREEN wires shown
in
the diagram below
using (2)
SPOT
relays (not supplied).
Multiplex
Locks:
BLUE (
-
)
Unlock Output
Vehicle
Door Lock
Control Relays
ca5054 Install
rev
A.
