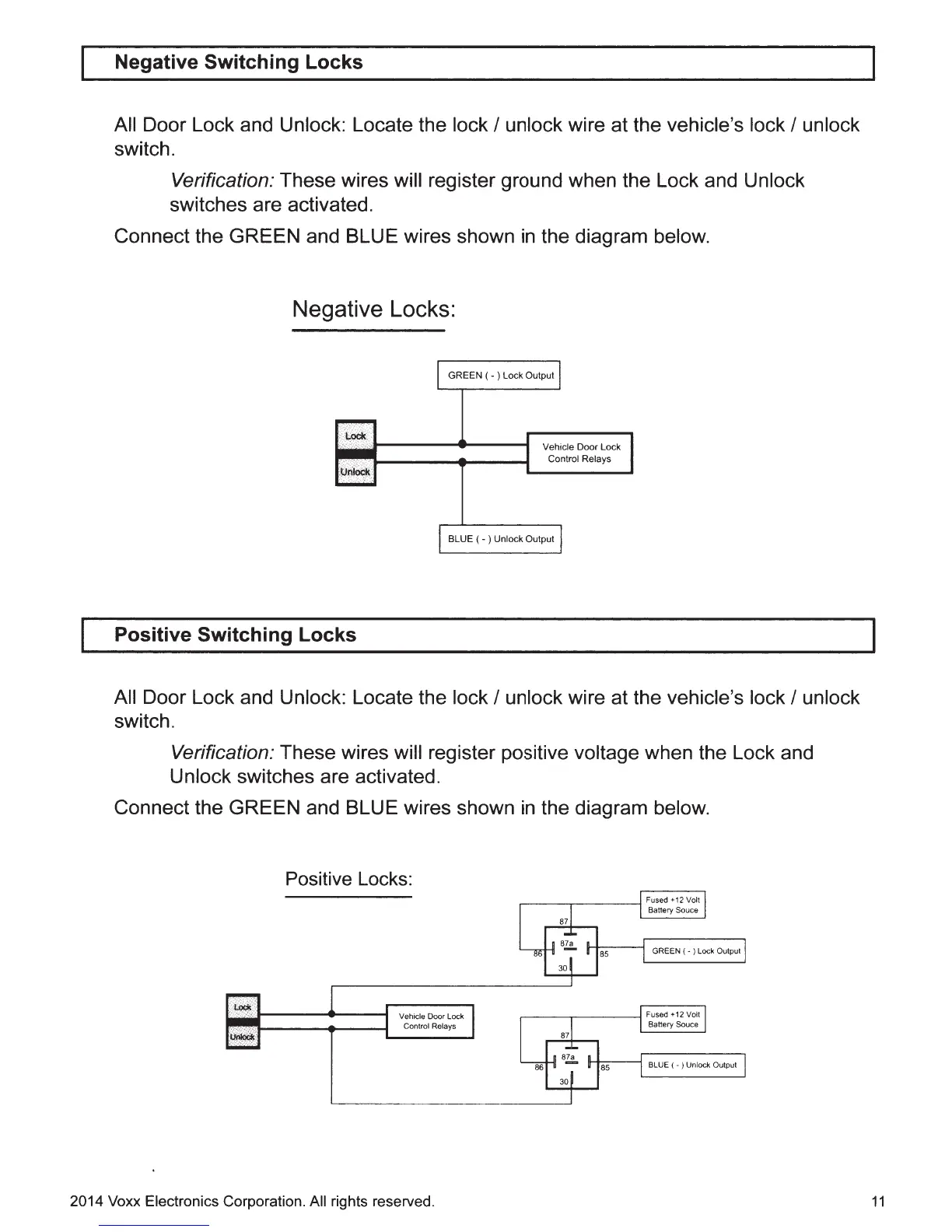

Negative Switching Locks
All Door Lock and Unlock: Locate the lock I unlock wire at the vehicle's lock I unlock
switch.
Verification: These wires will register ground when the Lock and Unlock
switches are activated.
Connect the GREEN and BLUE wires shown
in
the diagram below.
Negative Locks:
Positive Switching Locks
GREEN ( - ) Lock Output
Vehicle Door Lock
Control Relays
BLUE ( - ) Unlock Output
All Door Lock and Unlock: Locate the lock I unlock wire at the vehicle's lock I unlock
switch.
Verification: These wires will register positive voltage when the Lock and
Unlock switches are activated.
Connect the GREEN and BLUE wires shown
in
the diagram below.
Positive Locks:
Vehicle Door Lock
Control Relays
2014 Voxx Electronics Corporation. All rights reserved.
GREEN ( - ) Lock Output
11
