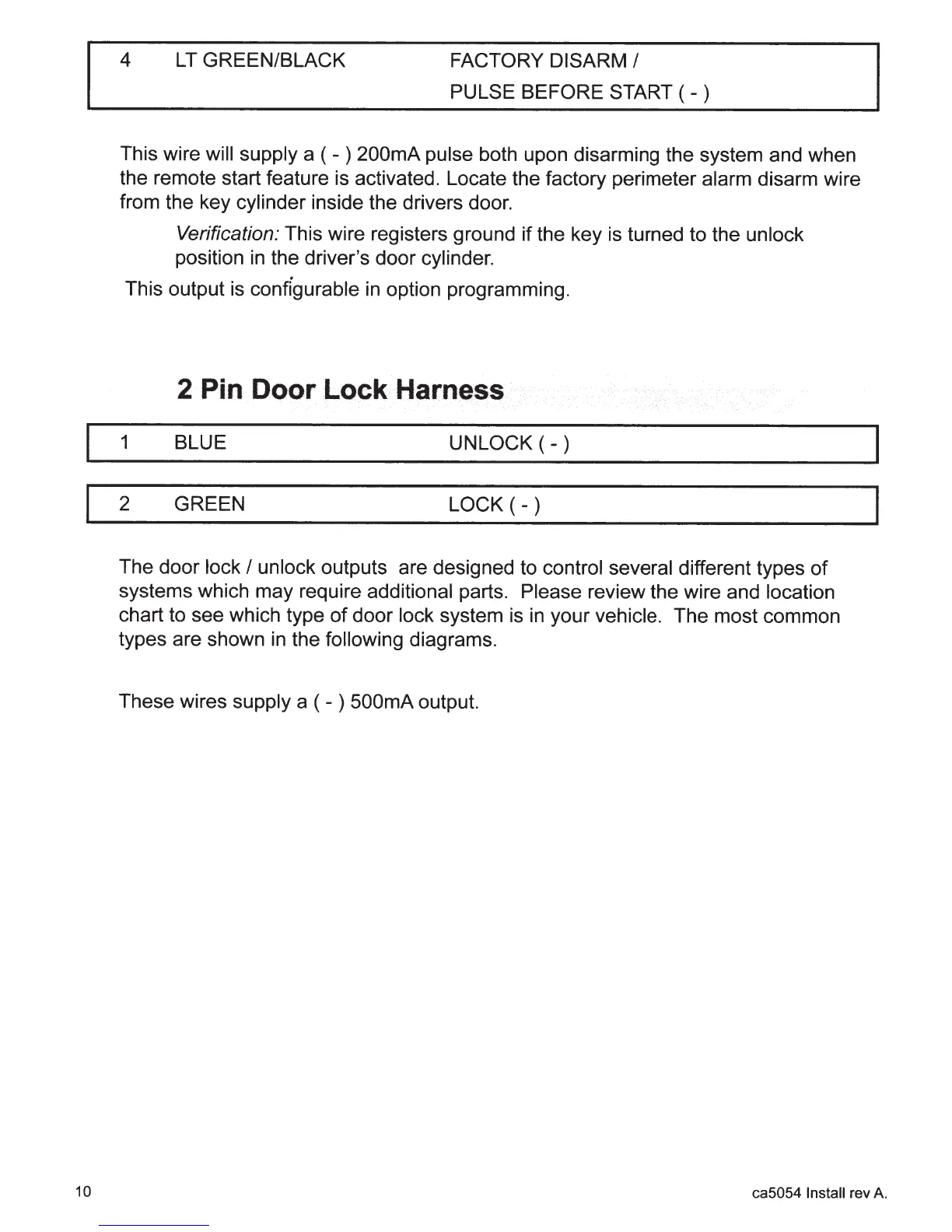

10
4
LT
GREEN/BLACK
FACTORY DISARM
I
PULSE BEFORE START
(
- )
This wire
will supply
a
( - ) 200mA pulse both upon disarming the system and when
the remote start feature is activated. Locate the factory perimeter
alarm
disarm wire
from the key cylinder
inside the drivers door.
Verification: This wire registers ground if the key is turned to the
unlock
position in the driver's door
cylinder.
This output
is
conffgurable
in
option programming.
2 Pin Door Lock Harness
1
BLUE
UNLOCK
(-)
2
GREEN
LOCK
(-)
The door
lock
I
unlock outputs are designed to control several different types
of
systems which may require
additional
parts. Please
review the wire and
location
chart to see which type
of
door
lock system is
in
your
vehicle.
The most common
types are shown
in
the
following
diagrams.
These wires supply a
(-)
500mA
output.
ca5054 Install rev
A.
