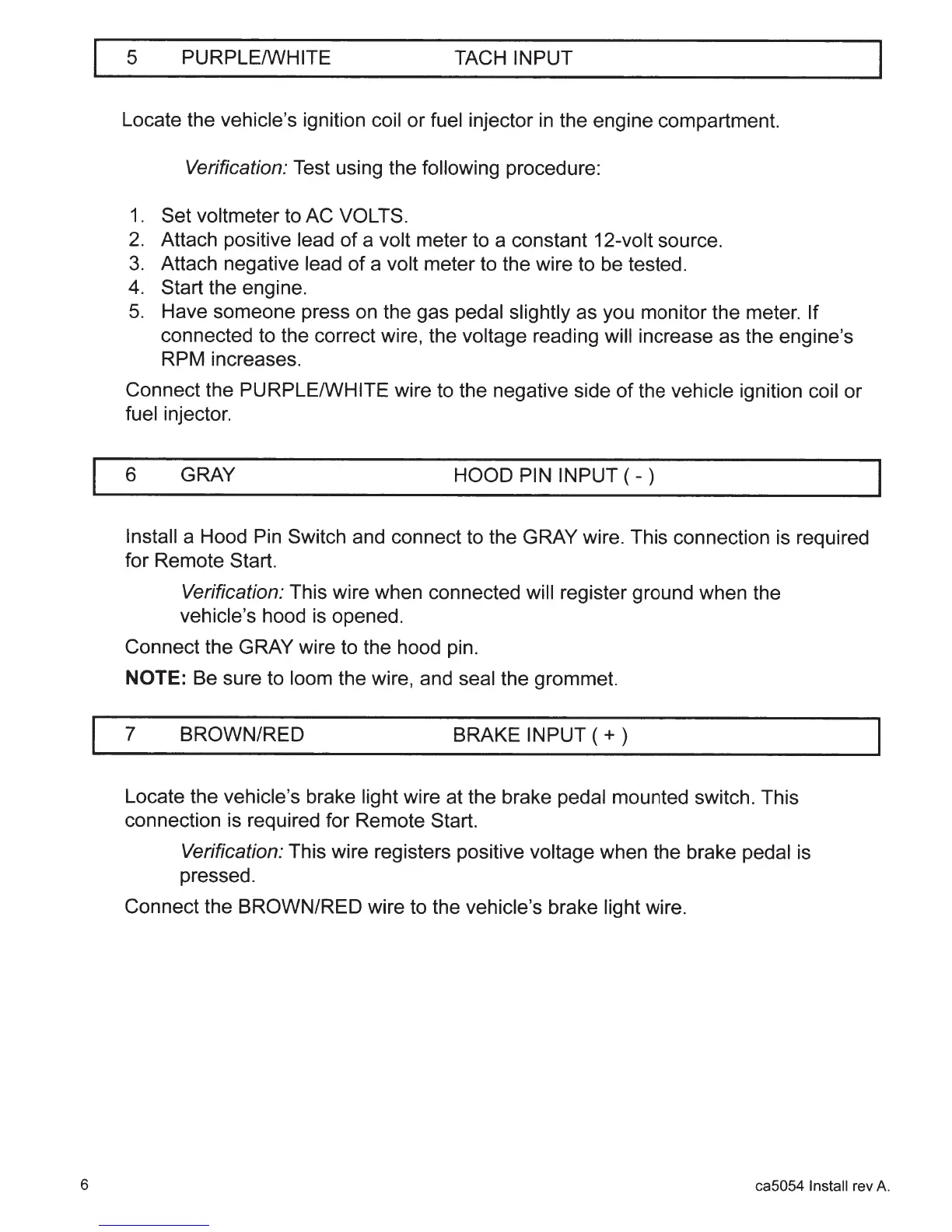

Code Alarm Professional ca5054 - Page 6

6
5
PURPLE/WHITE
TACH INPUT
Locate the
vehicle's ignition
coil
or
fuel
injector
in
the engine compartment.
Verification:
Test using the
following
procedure:
1.
Set voltmeter
to
AC VOLTS.
2.
Attach positive
lead
of
a
volt meter to a constant
12-volt
source.
3.
Attach negative lead
of
a volt meter to the wire to be tested.
4.
Start
the engine.
5.
Have someone press on the gas
pedal slightly
as you monitor the meter.
If
connected to the correct wire, the
voltage reading
will increase as the engine's
RPM increases.
Connect the PURPLE/WHITE wire to the negative side
of
the vehicle
ignition
coil
or
fuel injector.
6 GRAY
HOOD PIN INPUT
(-)
Install
a Hood Pin Switch and connect to the GRAY wire. This connection is required
for Remote Start.
Verification:
This wire when connected will
register ground when the
vehicle's hood is opened.
Connect the GRAY wire to the hood pin.
NOTE:
Be sure to
loom the wire, and
seal
the grommet.
7
BROWN/RED
BRAKE
INPUT(+)
Locate the
vehicle's brake
light wire at the brake
pedal
mounted switch. This
connection is required for Remote Start.
Verification:
This wire registers positive
voltage
when the brake
pedal is
pressed.
Connect the BROWN/RED wire to the vehicle's
brake
light
wire.
ca5054 Install
rev
A.
