CODEL SmartCem V-CEM5100 - Page 22

Technical Manual Page 14 CODEL
OPS.109
Issue : B
Rev. : 1
Date : 23/10/13
Doc. i/d : 0109/6
Ref. : 090028

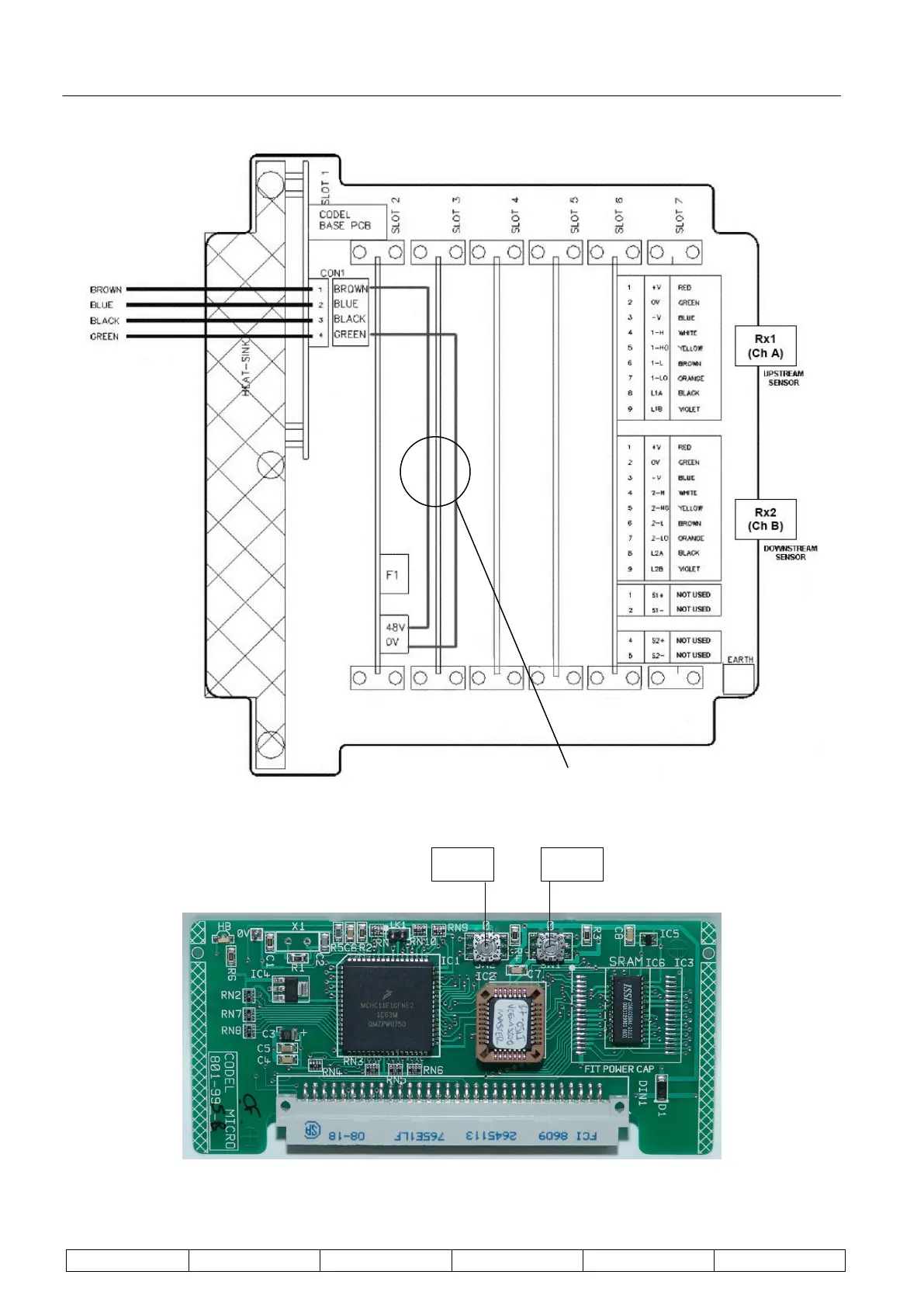

Figure 7 : Details of SPU Wiring
Figure 8 : SPU Microprocessor Card
SW2
SW1
To DDU
Keep links in place
