Technical Manual Page 21 CODEL

OPS.109

Issue : B

Rev. : 1

Date : 23/10/13

Doc. i/d : 0109/6

Ref. : 090028

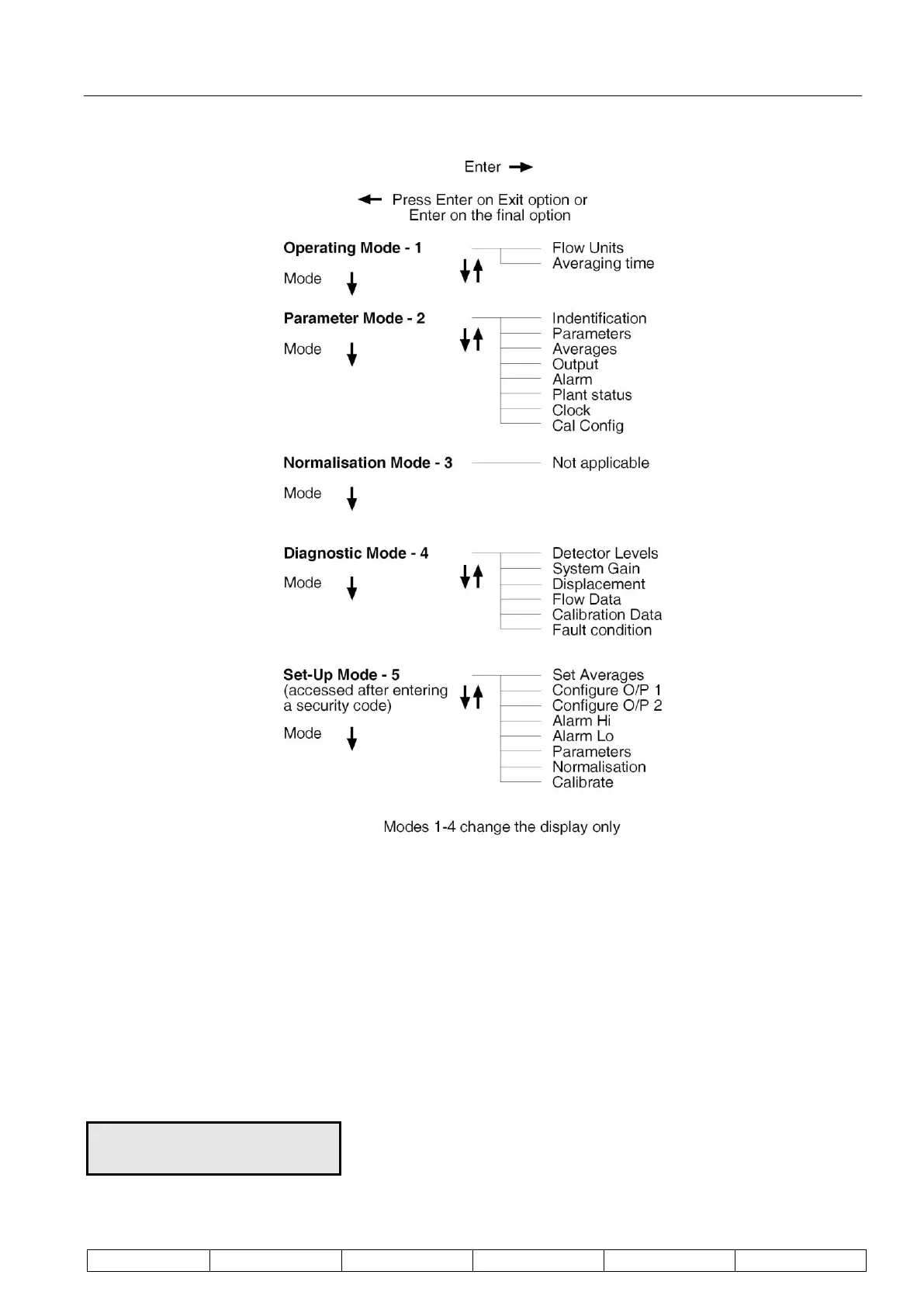

Figure 13: Main Program Tree

7.5.

Operating Modes

NB. PLEASE NOTE THAT ANY DATA CONTAINED IN THE FOLLOWING DISPLAY ILLUSTRATIONS IS

INTENDED TO BE REPRESENTATIVE ONLY.

7.5.1.

Measurement Mode

From this mode of operation the averaging time of the displayed flow may be altered to one of the other

averaging stacks and the flow measurements observed. When in this mode, the display will appear similar to

that shown below. If the display is not similar this, press the MODE key until number 1 appears in the top left

corner of the display.

1 Flow = 010.0

m/sec Av03h
