Long Range (Focused to 190 mm)

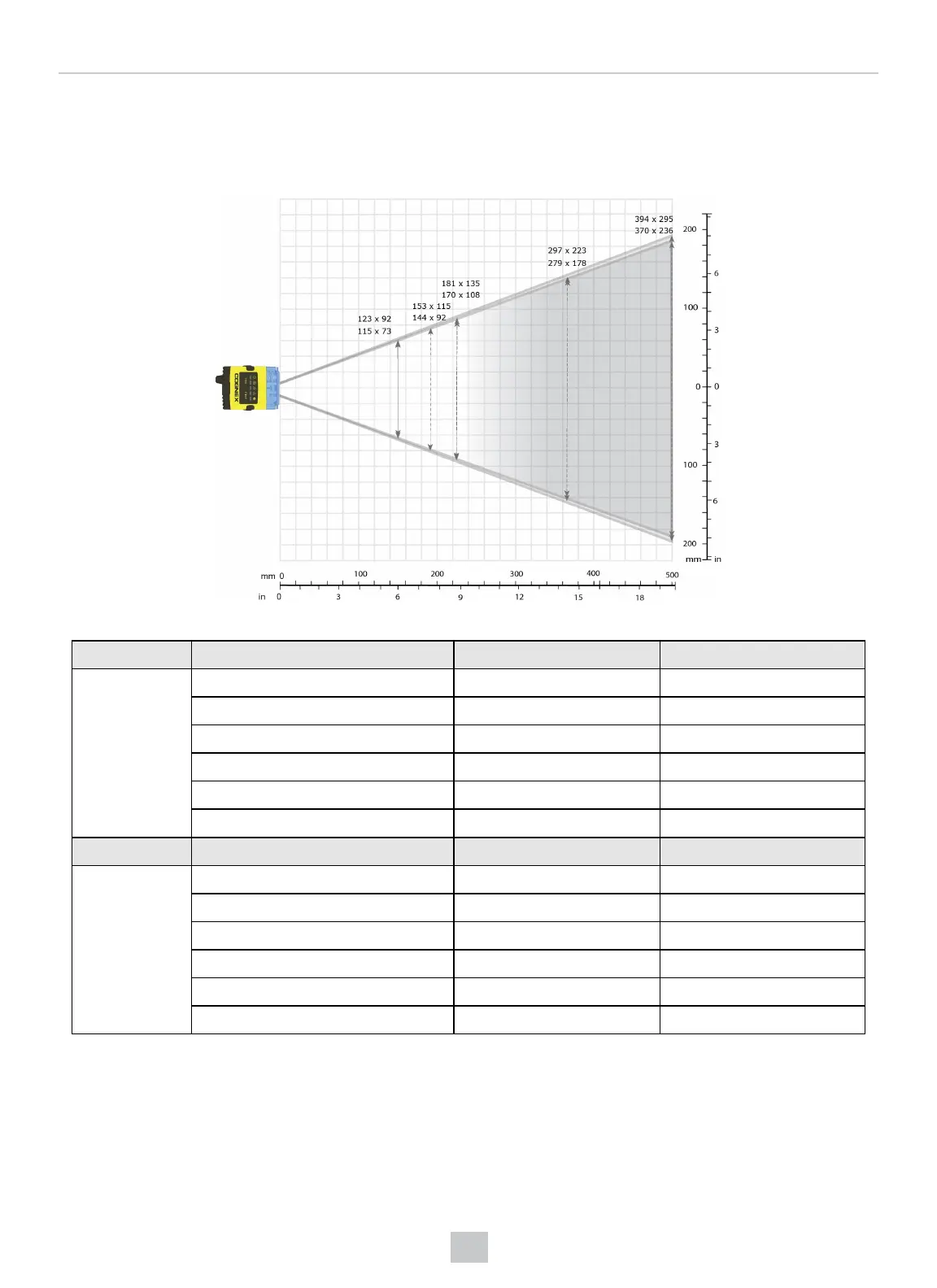

The following map shows the FoV of the DataMan 150 series readers with a 6.2 mm lens. Outer FoV values refer to
DM152, inner FoV values refer to DM150.
The following tables show the FoV widths of the 6.2 mm lens focused to 190 mm at various distances.
Device Distances in mm 2D min. code 1D min. code
DM150 150 12 MIL 6 MIL
190 15 MIL 10 MIL
225 18 MIL 10 MIL
375 30 MIL 15 MIL
500 35 MIL 20 MIL
1000 - 35 MIL
Device Distances in mm 2D min. code 1D min. code
DM152 150 10 MIL 5 MIL
190 12 MIL 6 MIL
225 15 MIL 6 MIL
375 20 MIL 10 MIL
500 25 MIL 15 MIL
1000 - 30 MIL
