DataMan 150 Readers with a 16 mm Lens

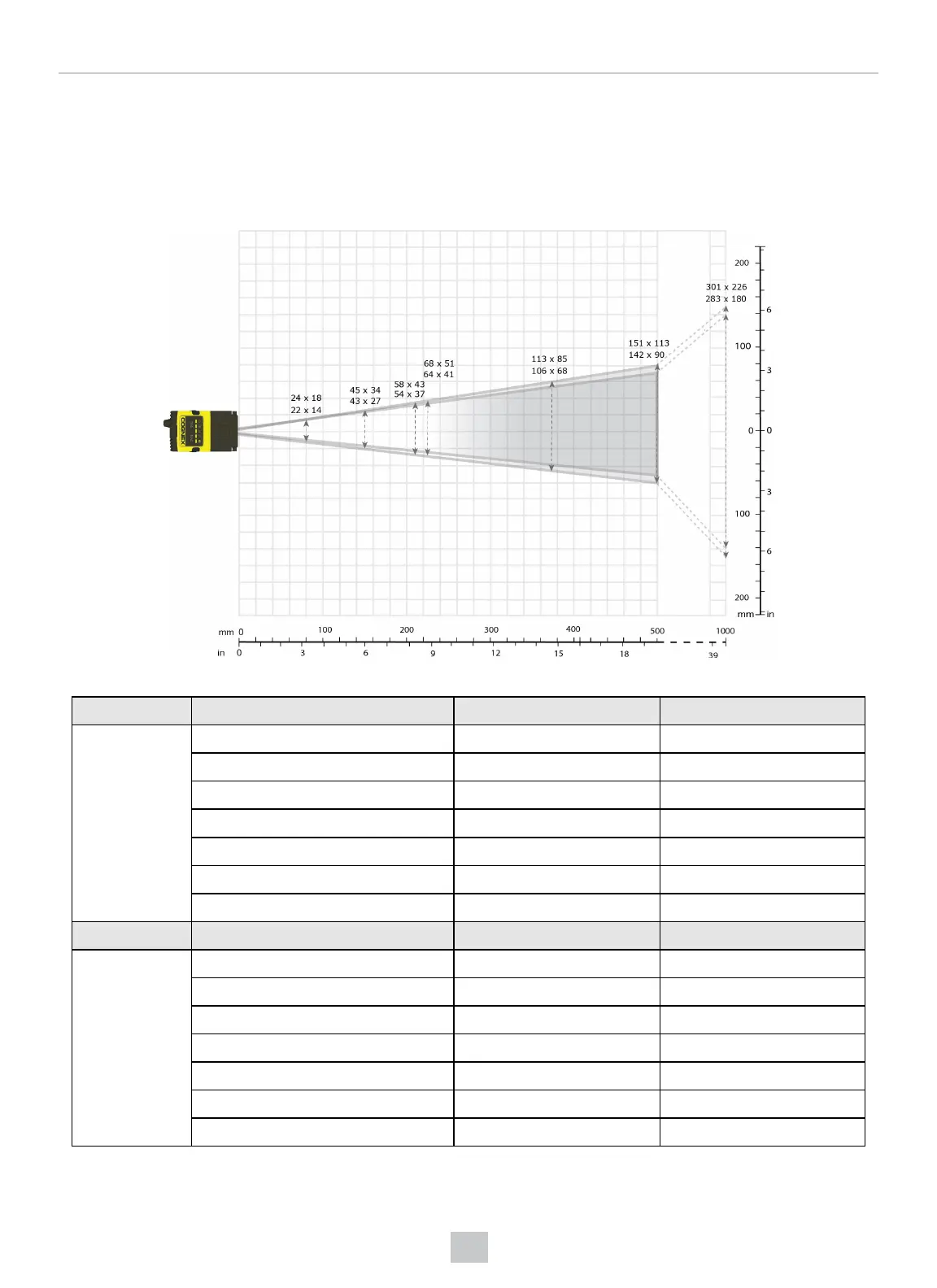

The following map shows the FoV of the DataMan 150 readers with a 16 mm lens. Outer FoV values refer to DM152,
inner FoV values refer to DM150 .
The following tables show the FoV widths of the 16 mm lens at various distances.
Device Distances in mm 2D min. code 1D min. code
DM150 80 3 MIL 2 MIL
150 5 MIL 3 MIL
190 6 MIL 4 MIL
225 7 MIL 4 MIL
375 12 MIL 5 MIL
500 15 MIL 10 MIL
1000 25 MIL 15MIL
Device Distances in mm 2D min. code 1D min. code
DM152 80 2 MIL 2 MIL
150 3 MIL 2 MIL
190 4 MIL 2 MIL
225 4 MIL 3 MIL
375 7 MIL 4 MIL
500 10 MIL 6 MIL
1000 20 MIL 15MIL
