30 DataMan 200 Quick Reference Guide DataMan 200 Quick Reference Guide 31
GND
24VDC
Common
Load
(Coil, Relay...)
Not to exceed
50mA
High Speed Out 0

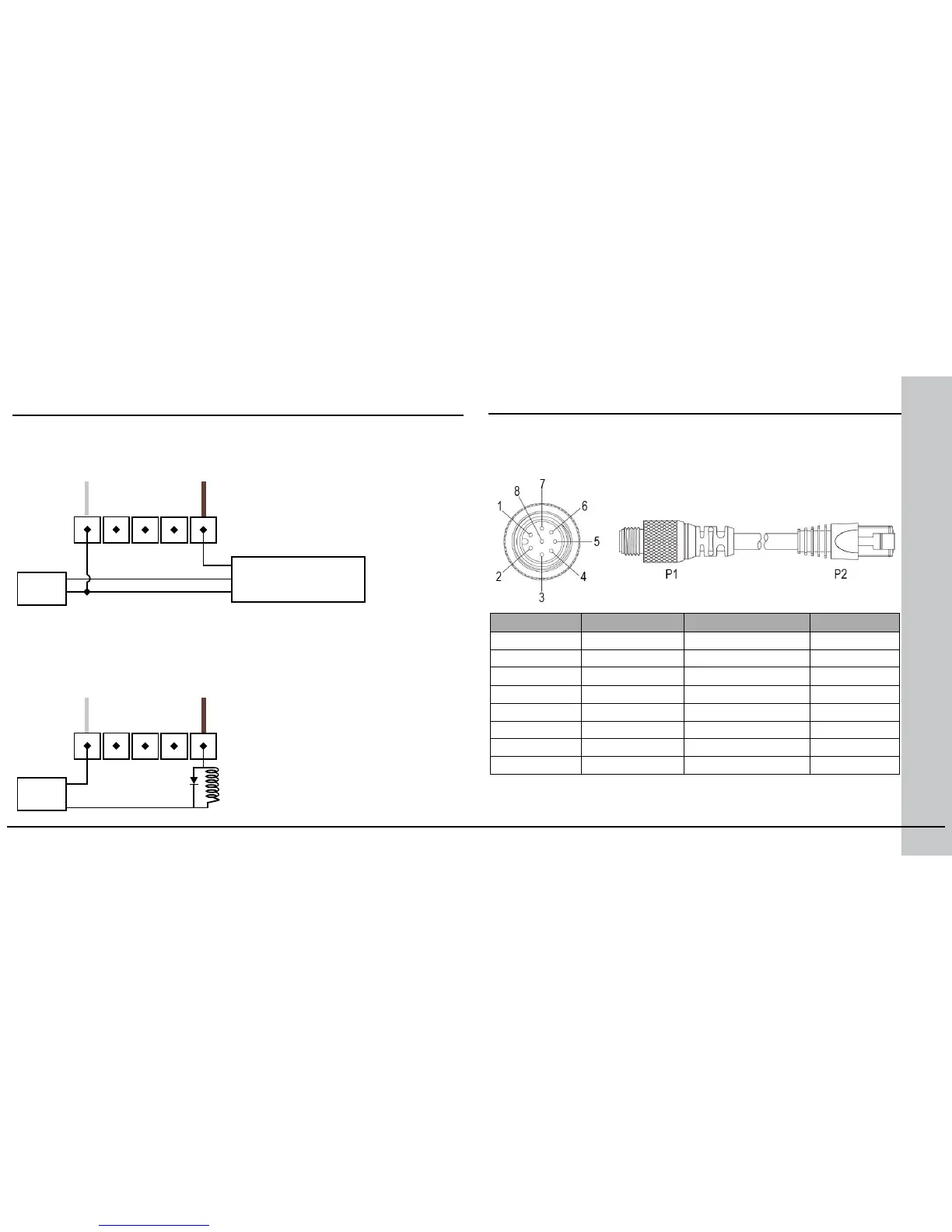

To connect the high-speed outputs to a relay, LED or similar load, connect the
negative side of the load to the output and the positive side to +24V. When the
output switches on, the negative side of the load is pulled down to less than
3V, and 24 appears across the load. Use a protection diode for a large inductive
load, with the anode connected to the output and the cathode connected to
+24V.
To connect to a PNP-compatible PLC input, connect Output 0 or Output 1
directly to the PLC input. When enabled, the output pulls the PLC input up to
greater than 21V.
GND
24VDC
Common
High Speed Out 0
PNP PLC
PNP Compatible Input
GND
24VDC
Ethernet M12 to RJ45 Cable
The Ethernet cable provides Ethernet connection for network
communications. The Ethernet cable can be connected to a single
device or provide connections to multiple devices via a network switch
or router.
Note: Cables are sold separately. The wiring for this cable follows
standard industrial Ethernet M12 specications. This differs from the
568B standard.
P1 Pin# Signal Name Wire Color P2 Pin#
6 TPO+ White/Orange 1
4 TPO- Orange 2
5 TPI+ White/Green 3
7 TRMA Blue 4
1 TRMB White/Blue 5
8 TPI- Green 6
2 TRMC White/Brown 7
3 TRMD Brown 8
High Speed Output Wiring (Continued)
