Mounting the Reader
The reader provides mounting holes for attachment to a mounting surface.
CAUTION: The reader has to be grounded, either by mounting the reader to
a fixture that iselectrically grounded or by attaching a wire from the reader’s
mounting fixture to frame ground or Earth ground. If a ground wire is used, it
has to be attached to one of the four mounting points on the bottom plate of the
reader and not to the mounting points on the front of the reader.
The method of mounting depends on whether the reader is in straight or right-angle
configuration, regardless of the product variant.

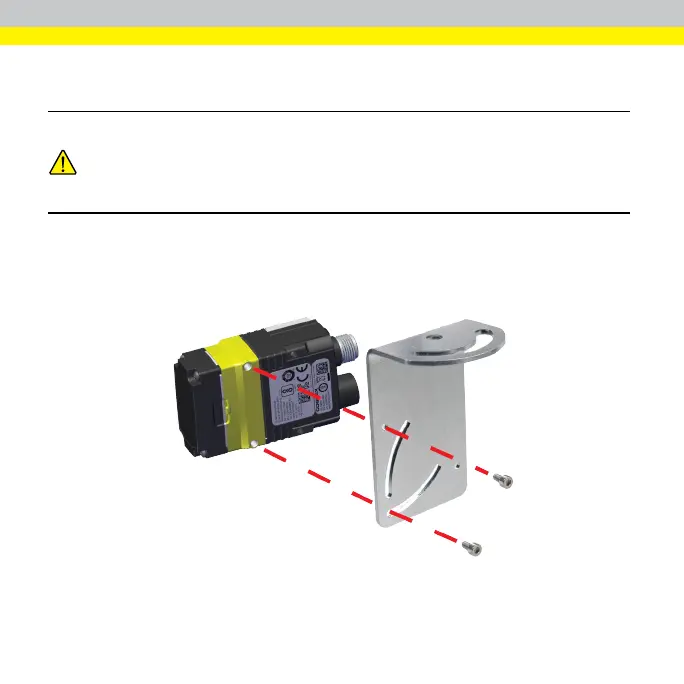

Mounting the Reader in Straight Configuration
