Cognex VisionView Web - Page 13

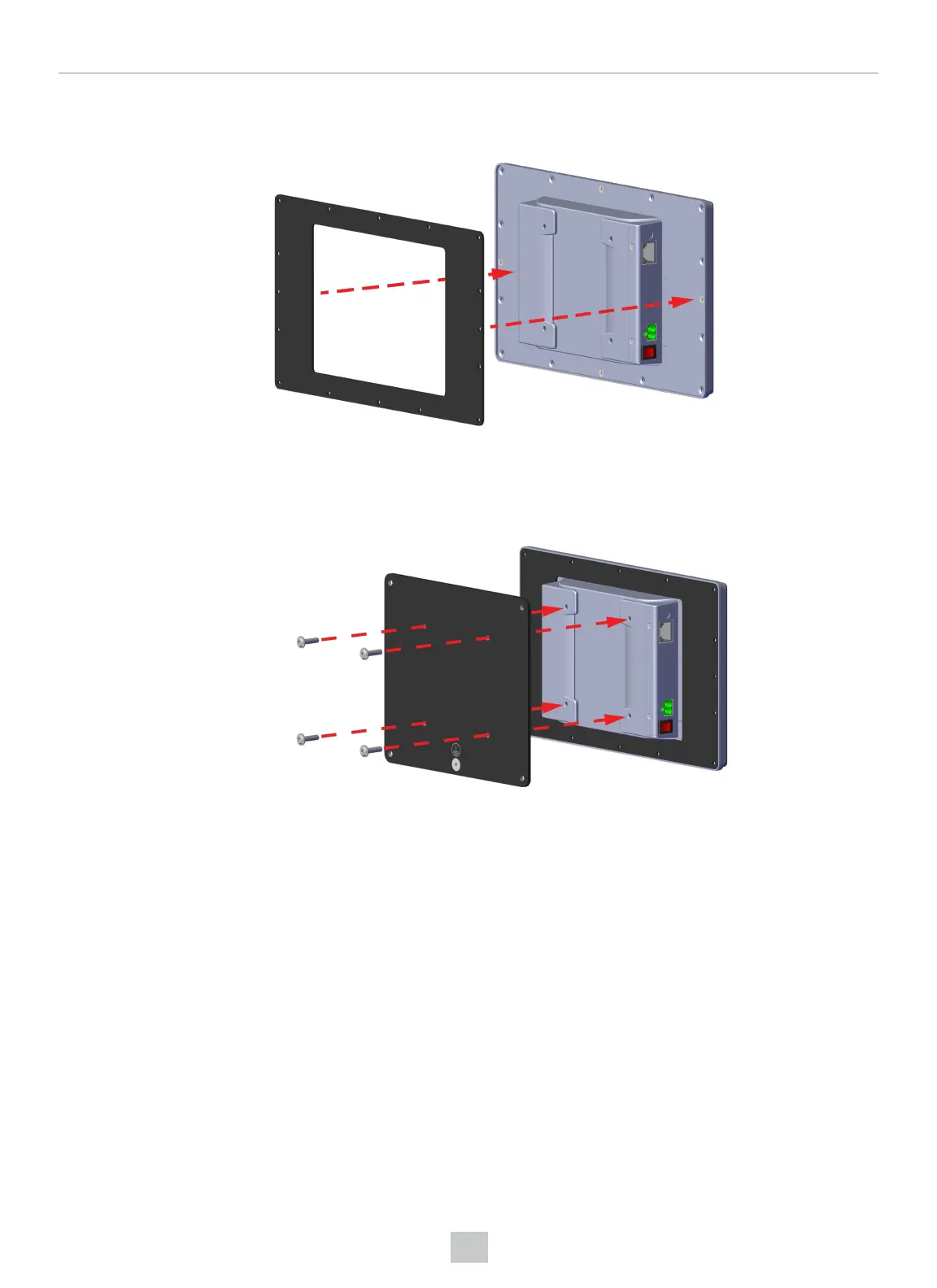

1. Attach the gasket to the back of the VisionView Web panel.
2. Position the FastMount bracket to the back of the VisionView Web panel. Align the mounting holes of the bracket with
the screw holes of the panel, then insert and tighten the four hex screws.
13
Getting Started
