33

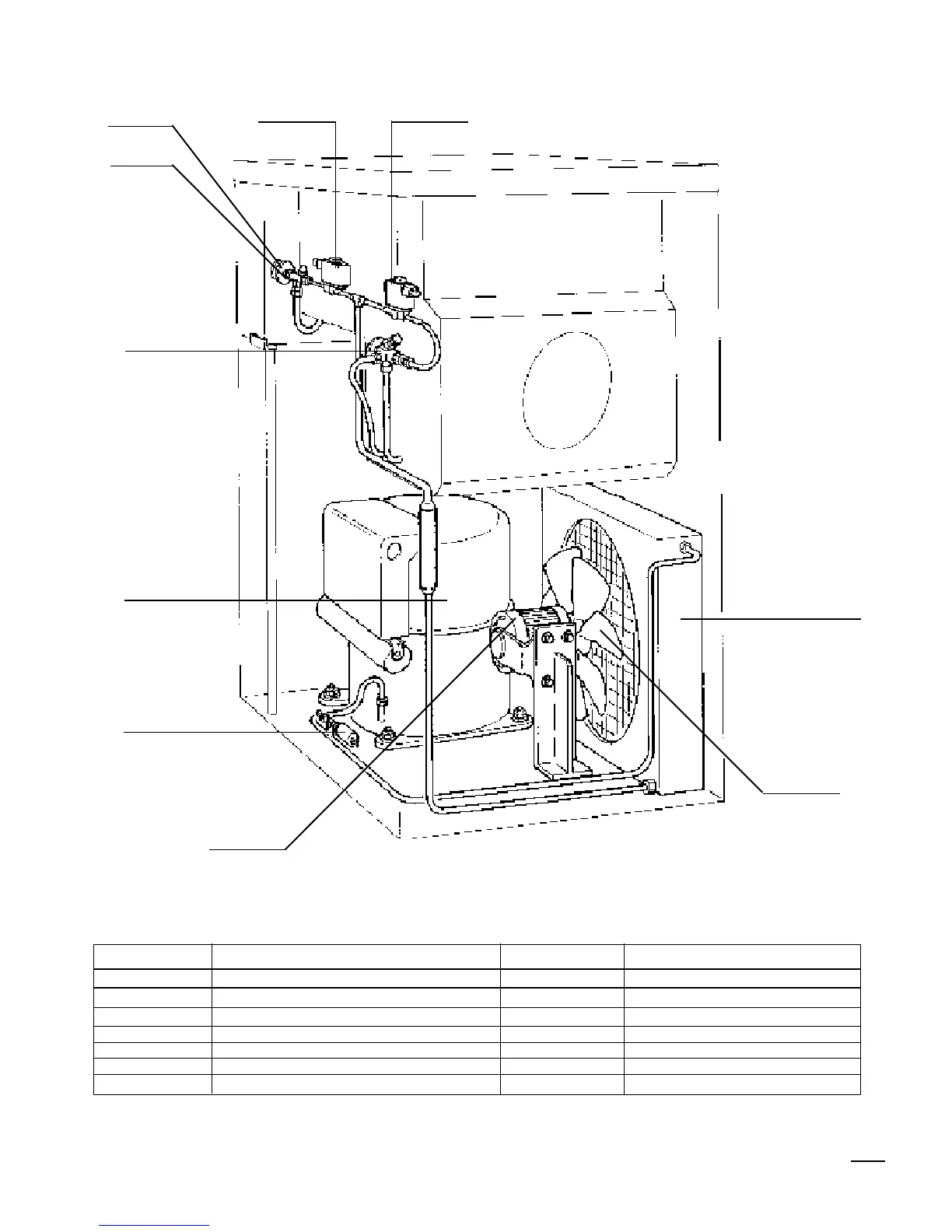

PARTS IDENTIFICATION
1731020
3203250
1740080
3306390
3301020
1727280
1724800 1724800
1727280
1727850
Code No. Description Code No. Description
1727580 Expansion Valve - Cylinder 1727850 Orifice for 1727580
3301020 Compressor 1727280 Solenoid valve body
3306390 Pressure switch 1724800 Solenoid valve coil
3203250 Fan motor 1727560 Expansion valve hopper
1740080 Fan 1731020 Air condenser
1727820 Orifice # 1 for 1727560
1727560
Figure F
1727580
1727820
