Cole Parmer POLYSTAT - Remote Temperature Sensor

Section 3 Installation
3-3
Cole Palmer
CAUTION
Ensure all communication and electrical connections are made
prior to starting the unit. 
Ensure the line cord from the bath is securely connected to the rear •
of the controller.
Ensure the communications cable from the bath is connected to the •
RJ45 connectors (similar to Ethernet) on the rear of the controller.
Connect the supplied line cord to the controller and to a properly •
grounded outlet.

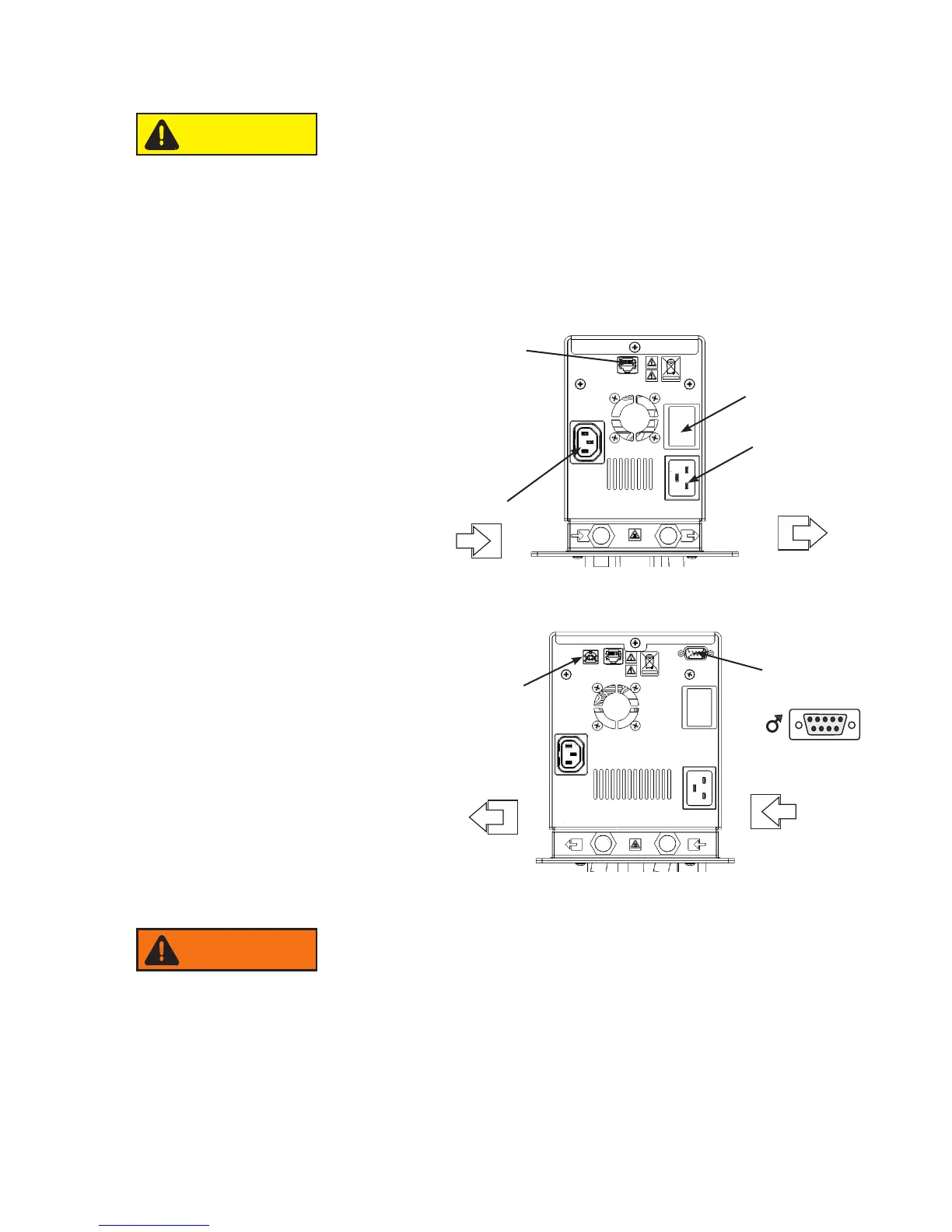

Cable connection required
for proper communication
between the bath and the
circulator.
1/2 Immersion Circulator
Communications cable
from bath
Line cord from bath
Line cord connection
I/O Circuit Protector
Return Flow
Outlet Flow
3 Immersion Circulator
6200 Remote
Temperature Sensor
6200 USB
Connection
Return Flow
Outlet Flow
1 2 3 4 5
6 7 8 9
Never apply line voltage to the connection. 
The optional remote temperature sensor is enabled using the controller,
see Section 4.
Pin
1 White
2, 3 NA
4 White
5, 6 NA
Pin
7 Red
8 NA
9 Red (4th wire not connected to the control board)
WARNING
Remote Temperature
Sensor (3 Only)
