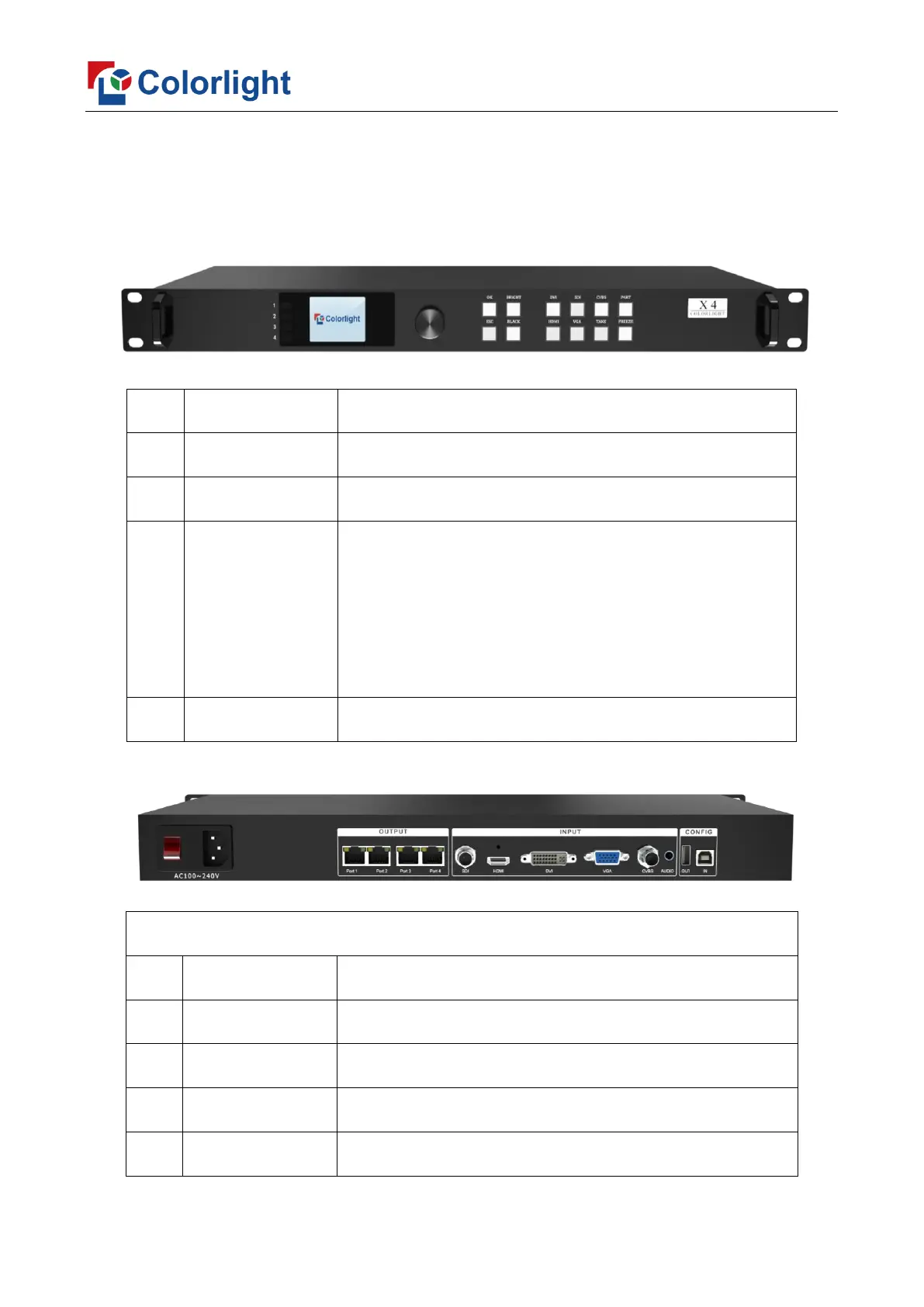

2. Appearance
Front Panel
NO
Name
Function
1
1.8-inch LCD
Display operation menu and system information
2
Knob
Turning knob to select or adjust
3
Function Keys
OK: Enter key
ESC: Escape current operation or selection
BRIGHT: Brightness option
BLACK: Blank screen
TAKE: Switch input signal source
PART: Screen clipping
FREEZE: Freeze screen
4
Selection Keys
DVI/HDMI/SDI/VGA/CVBS: Video source selection
Back Panel
Input Interface
1
SDI
SDI input
2
HDMI
HDMI input
3
DVI
DVI input
4
VGA
VGA input
5
CVBS
CVBS input
