IGS
-NT
I
nstallation
G
ui
de
20

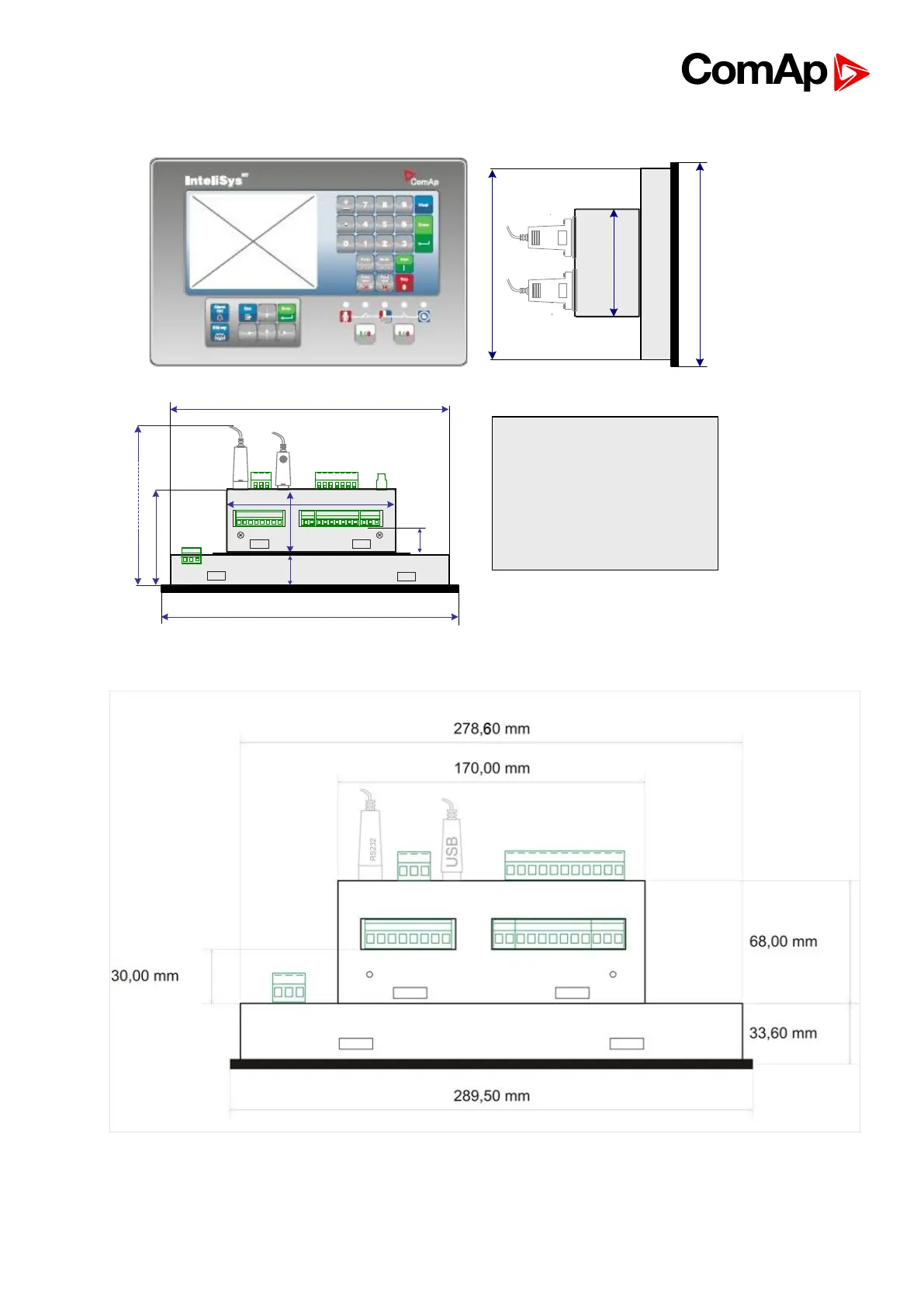

5.1.2.1.
IS
-NT
w
ith IS-Display
~130 (5,1
“
)
30
1,2
“
176 (6,9
“
)
290 (114,2")
280 (11")
98 (3,9
“
)
30
1,2
“
110 (4,3
“
)
184 (72,44
“
)
Cutout for IS-NT
178 x 282
7,0 x 11,1
”
RS232
USB
170 (6,7")
68
2,7
“
5.1.2.2.
IS
-NT
w
ith InteliVi
si
on 8
19
21
Table of Contents
Table of Contents
2
Document Information
8
Clarification of Notation
8
Symbols
9
Conformity Declaration
9
Revision Notes
9
Available Related Documentation
10
General Guidelines
12
Safety Instructions
12
Required and Optional Modules
13
Inteli New Technology Controllers
13
Accessories
13
Dongle Overview
14
Available PC Software
15
Marine Application Notes
16
Safety Requirements
16
Power Supply
17
Default Configuration
18
Override Function
18
Terminals and Dimensions
19
Controller Terminals and Dimensions
19
Ig-Nt, Ig-Ntc, IM-Nt
19
Is-Nt-Bb
19
Ig-Nt-Bb (Ig-Ntc-Bb, Is-Ntc-Bb)
21
IM-Nt
22
IM-NT-BB and IM-NTC-BB
22
Display Terminals and Dimensions
23
IG-Display
23
IS-Display
23
Intelivision 5
24
Intelivision 8
24
Peripheral Modules Terminals and Dimension
25
IG-Avri + IG-Avri TRANS
25
Inteli AIN8
25
Inteli Ain8Tc
26
Inteli IO8/8 (Can be Switched to IO16/0)
26
Is-Bin16/8
27
Is-Ain8
28
IGL-RA15 Remote Annunciator
28
Igs-Ptm
29
IG-IB Internet Bridge
30
I-LB+ Local Bridge
30
I-CB Communication Bridge
31
I-RB16, I-RB16/231 Relay Board
31
I-CR CAN Repeater
32
I-Aout8
33
I-Lba
35
Interface
37
Front Panels
37
Inteligen NT Controller
37
Intelimains NT Controller
37
Intelisys NT Controller
38
Intelivision 5
38
Intelivision 8
38
Display Wiring
40
IG-Display Wiring
40
IS-Display Wiring
41
Intelivision 5 Wiring
42
Intelivision 8 Wiring
43
Terminals, Jumpers and I/O Overview
47
Ig-Nt Gc
47
Schematics
47
Terminals, Inputs and Outputs
48
Ig-Ntc Gc
49
Schematics
49
Terminals, Inputs and Outputs
50
Is-Nt-Bb
52
Schematics
52
Terminals, Inputs and Outputs
53
Ig-Nt-Bb
55
Schematics
55
Terminals, Inputs and Outputs
56
Ig-Ntc-Bb
57
Schematics
57
Terminals, Inputs and Outputs
58
Is-Ntc-Bb
59
Schematics
59
Terminals, Inputs and Outputs
60
IM-Nt
62
Schematics
62
Terminals, Inputs and Outputs
63
IM-Nt-Bb
64
Schematics
64
Terminals, Inputs and Outputs
65
IM-Ntc-Bb
66
Schematics
66
General Jumper Settings
67
Analog Inputs and Outputs
67
Speed Governor Output
68
Measurement and Power Supply Wiring
69
General
69
Grounding
69
Power Supply
69
Power Supply Fusing
70
Magnetic Pick-Up
70
Voltage and Current Inputs
71
Measurement Wiring
71
Voltage Measurement Separation
73
Mains Power and PF Measuring in IGS (E.g. Sptm Application)
73
Earth Fault Protection (E.g. MINT Application)
73
Recommended Wiring
75
Sptm Application
75
SPI Application
76
MINT Application
77
Single Phase Applications
78
Recommended Wiring
78
Intelimains - MCB Application
79
Basebox Controller
79
Controller with Built-In Display
80
Intelimains - MGCB Application
81
Basebox Controller
81
Controller with Built-In Display
82
Intelimains - BTB Application
83
Basebox Controller
83
Controller with Built-In Display
84
Intelimains - FDR Application
85
Basebox Controller
85
Controller with Built-In Display
86
Binary Input Wiring
87
Binary Output Wiring
87
Controllers Without High-Side Low-Side Switch
87
Controllers with High-Side Low-Side Switch
88
Examples of BI and BO Wiring
90
Binary Outputs Wiring with I-RB16
90
Binary Inputs and Outputs Wiring
90
Binary I/O on IS-BIN16/8
91
Binary Inputs on IS-BIN16/8
91
Binary Outputs on IS-BIN16/8
92
Binary Output Protections
92
Analog Input and Output Wiring
93
Analog Inputs on IS-AIN8
94
Outputs Refresh Rates
97
External Modules Connection
98
Lost Communication Protection
98
IS-BIN16/8 and IS-AIN8
98
IS-AIN8, IS-BIN8/16 Address Setting
99
IS-AIN8, IS-BIN8/16 SW Version Check
99
Example of Wiring
99
IGS-PTM and IGL-RA15
100
Example of Wiring
100
Connection of ECU on CAN1 with Other Modules Connected
101
I-CB Wiring and Configuration
102
Communications
103
Available Communication Ports
103
Possible Connections Per Port
104
CAN Bus
105
CAN Bus Tx, Rx LED Indication
105
CAN and RS485 Bus Wiring
105
Wiring Examples
106
Dongle Installation
108
Sensors
109
Sensor Fail Detection (FLS)
109
Default Sensors
109
Regulation Loops
111
PI Regulation Adjustment
112
Speed Governor and AVR General Settings
114
Sync/Load Control Adjustment
114
Speed Governor Output Characteristics
114
Synchronizer Adjustment
114
Load Control Adjustment
115
Active and Reactive Power Terminology
115
Volt/Pf Control Adjustment
116
IG-Avri Output Connection
116
Voltage Control Adjustment
117
PF Control Adjustment
118
Speed Governor Interface List
119
Electronic Engines Interface
119
Communication Bridge Unit
119
Speed Governor Interface
119
Controller Speed Reg out Voltage Limits
119
Interface List
119
AVR Interface List
127
Technical Data
138
Power Supply
138
Operating Conditions
138
Dimensions and Weight
139
Measurements
139
Current Inputs
139
Voltage Inputs - IG/IS-NT and Modifications
140
Binary Inputs and Outputs
140
Binary Inputs
140
Binary Open Collector Outputs
140
Analog Inputs
141
D+ Function
141
Speed Pick-Up Input
141
Communication Interface
141
RS232 Interface
141
RS485 Interface
141
CAN Bus Interface
142
Analog Outputs
142
IG-Avri
142
IG-Avri Trans/Lv
143
IG-Avri Trans/100
143
Igs-Ptm
143
Binary Inputs
143
Binary Open Collector Outputs
143
Analog Inputs
144
Analog Output
144
Is-Ain8
144
I-Aout8
145
Is-Bin16/8
145
Binary Inputs
146
Open Collector Outputs
146
Frequency Inputs
146
Igl-Ra15
146
Power Supply
146
Operating Conditions
146
Dimensions and Weight
147
Horn Output
147
I-Cb, I-Cr
147
Power Supply
147
Operating Conditions
147
CAN Bus Interface
147
RS232 Interface
148
I-Lb
148
Ig-Ib
148
I-Rbxx
148
Ig-Mtu
148
Ig-Mtu-2-1
149
