ComAp IM-NT Installation Guide

IGS-NT Installation Guide
93
9.14. Analog Input and Output wiring
Note that Analog Inputs and Outputs are available only in
some types of hardware.
HINT
For more information on technical data regarding supply, inputs, outputs etc. please refer to
For jumper setting of Analog inputs please refer to the section Jumper settings.

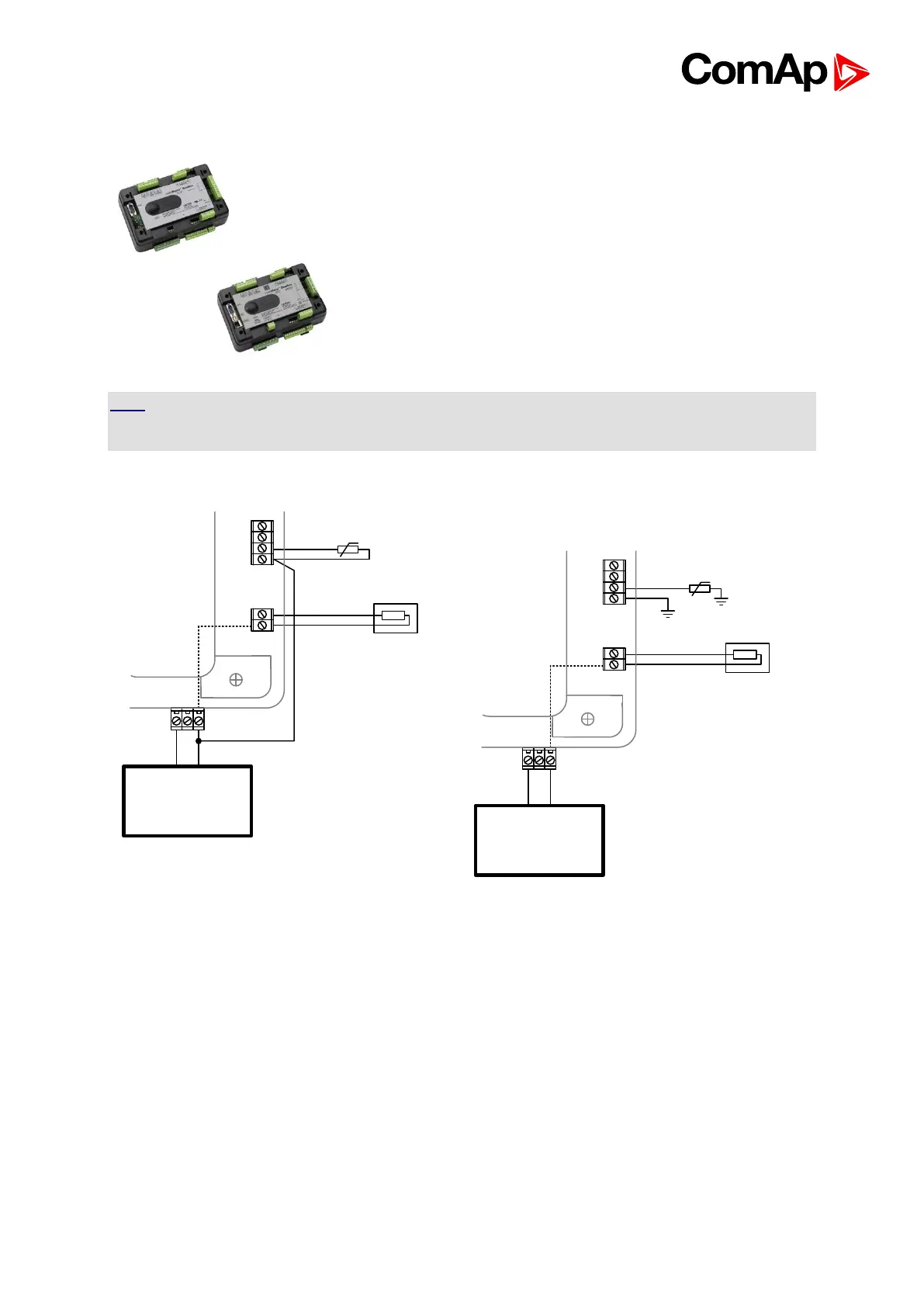

Resistive sensor on Analog input 3 and
Analog output wiring
Battery 24V
DC
+ -
AI3
AI COM
Internal
AOUT
COM
AOUT +
Resistive sensor with grounding on Analog
input 3 and Analog output wiring. Note, that
battery should be also grounded to
common ground in all cases!
Battery 24V
DC
+ -
AI3
AI COM
Internal
AOUT
COM
AOUT +
Passive Current sensor on Analog input 3
and Active Current sensor on Analog input 2
Voltage sensors on Analog input 1 and 3
