IGS-NT Communication Guide
115

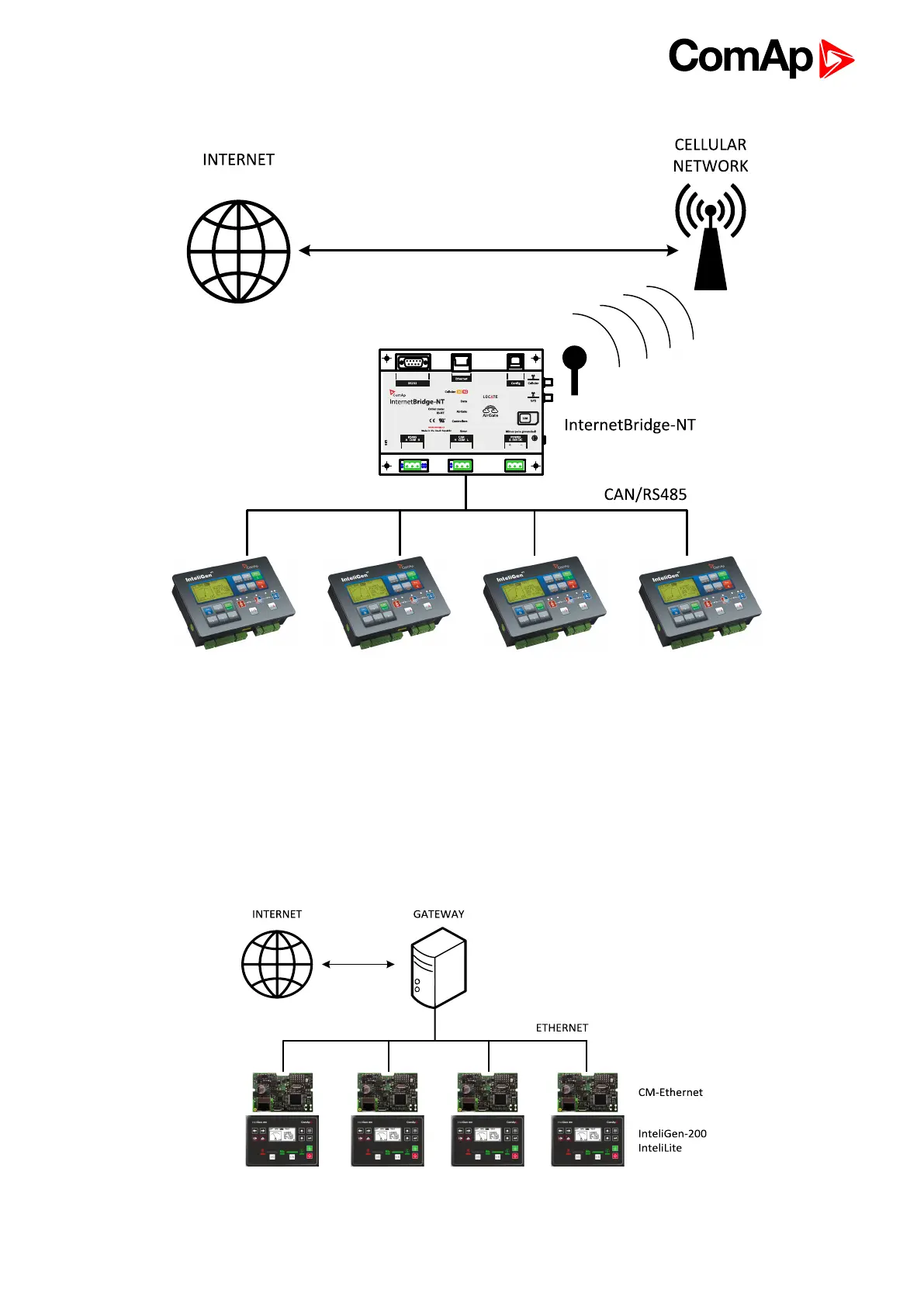

Image 7.3 InternetBridge-NT, cellular internet connection
7.6.2 Sites with new controller families
In the new controller product families the connectivity is based primarily on ethernet - a modern, fast and reliable
communication technology. The communication interface has been moved inside the controllers, either as
built-in or as plug-in modules. Thus, there is no need of external CAN module to provide the connectivity. The
topology has changed as described at following pictures.
