InteliLite Global Guide
109

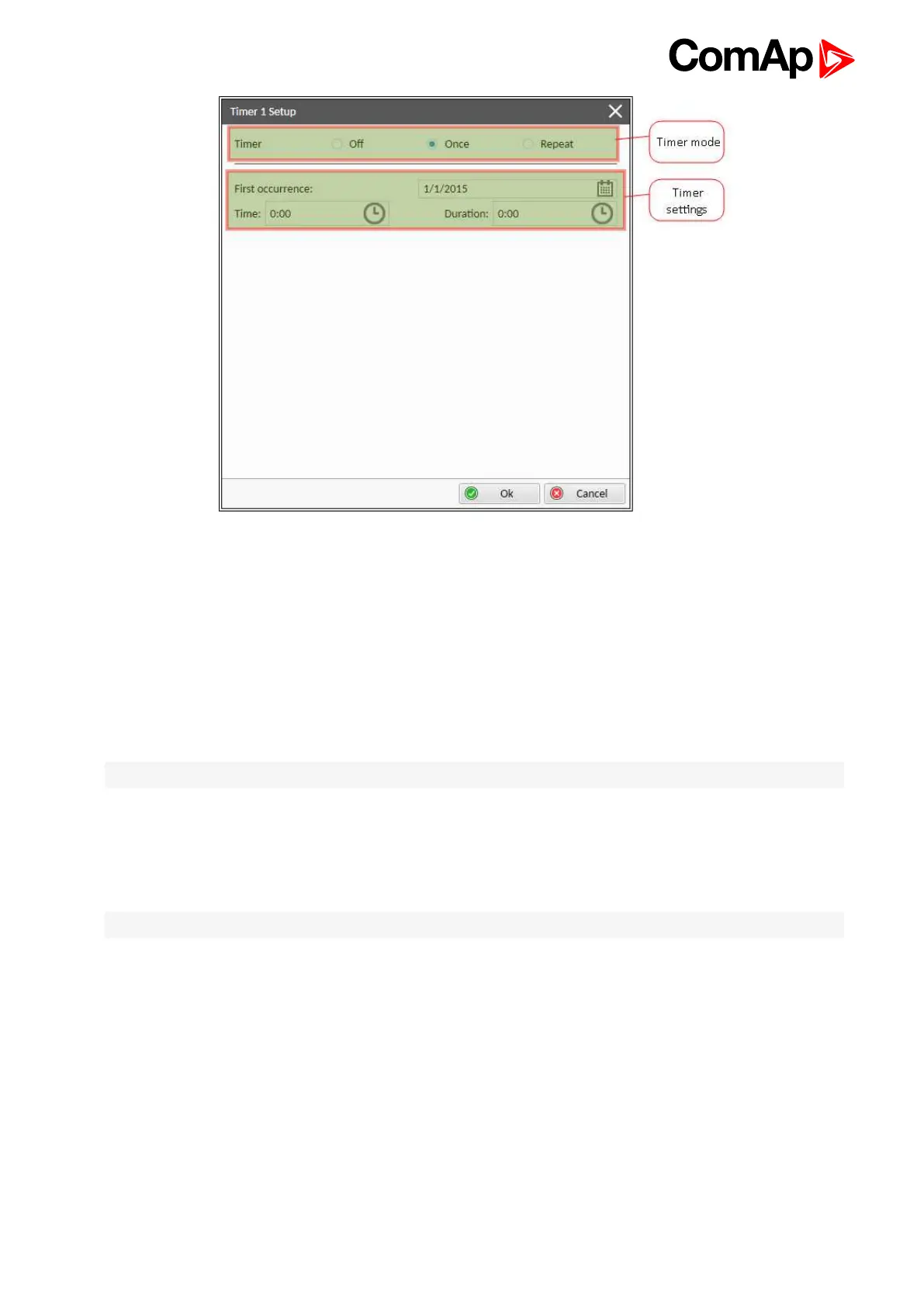

Image 5.23 Once mode - InteliConfig
In timer mode select Once. In timer settings adjust date and time of occurrence of timer. Also adjust the duration
of timer.
Set-up via controller interface
In controller go to the Scheduler setpoint group. Select the function of timer via Timer 1 Function (page 303)
setpoint. Than go to Timer 1 Setup and press enter button. In Timer 1 Repetition (page 304) setpoint select
Once mode. Than adjust Timer 1 First Occur. Date (page 305), Timer 1 First Occur. Time (page 305) and
Timer 1 Duration (page 305).
Note: Use left and right buttons to move between timer setpoints.
Daily mode
Set-up via InteliConfig
To set-up timer via InteliConfig go to the setpoint ribbon, setpoint group scheduler and setpoint Timer 1 Setup.
Note: First of all function of timer has to be adjusted via setpoint Timer 1 Function (page 303).
