Connect the block inputs and outputs by drawing wires in the sheet. See Define inputs and outputs (page
124) for more information. It is also possible to connected inputs and outputs via properties of selected PLC
block.

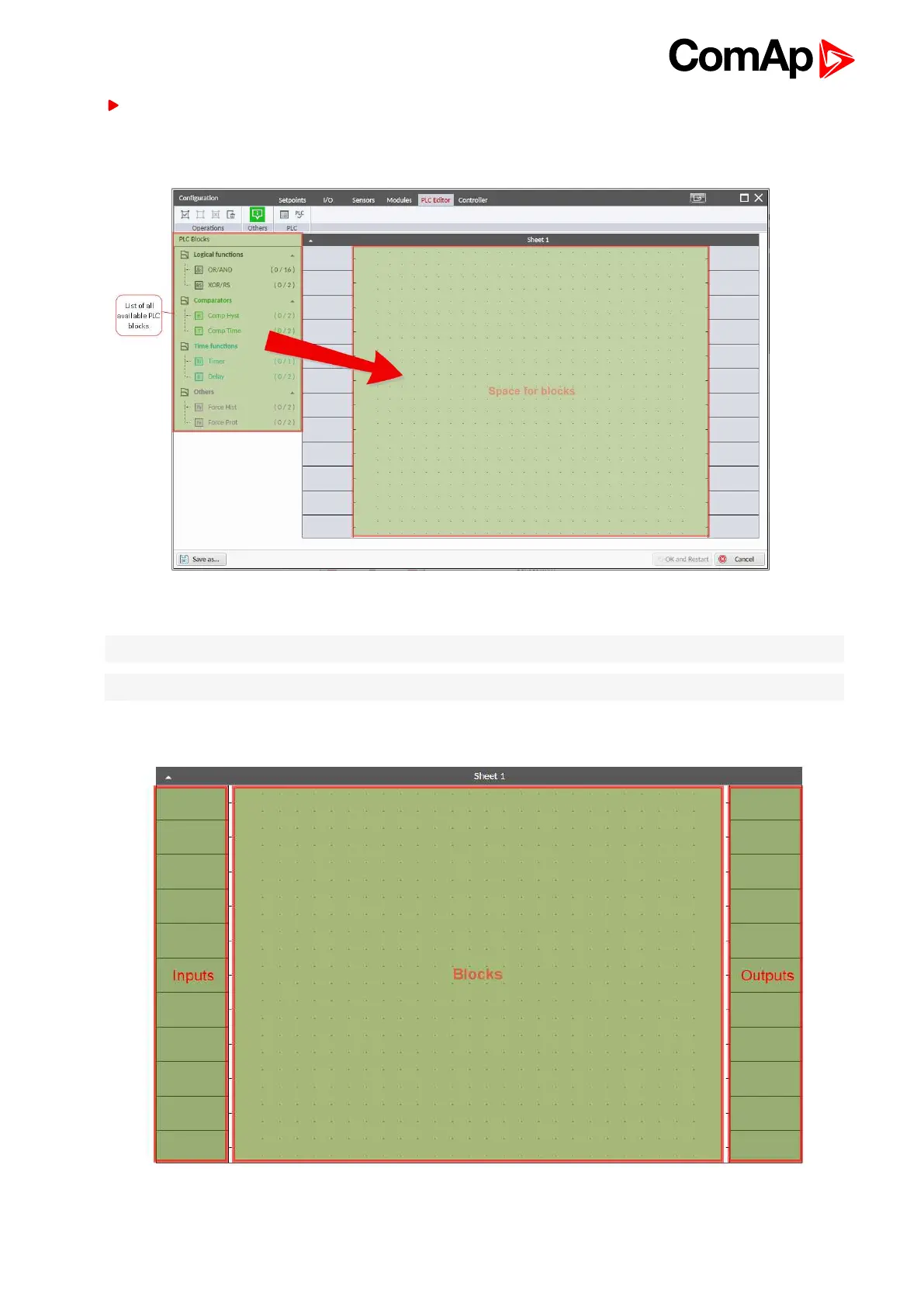

Image 5.34 Adding PLC blocks
Note: To delete PLC block just click on it and press delete button. Also delete selection function can by used.
Note: To see context help for selected PLC block just press F1 button.
Define inputs and outputs
Image 5.35 Blank sheet of PLC editor
